Equipment Overview: General Description
Back View
WARNING
SYSTEM LEAKAGE CURRENT – Keep leakage current
within acceptable limits when connecting auxiliary
equipment to this device. Total system leakage must not
exceed 300 microamperes (110V system) or 500
microamperes (220V-250V system).

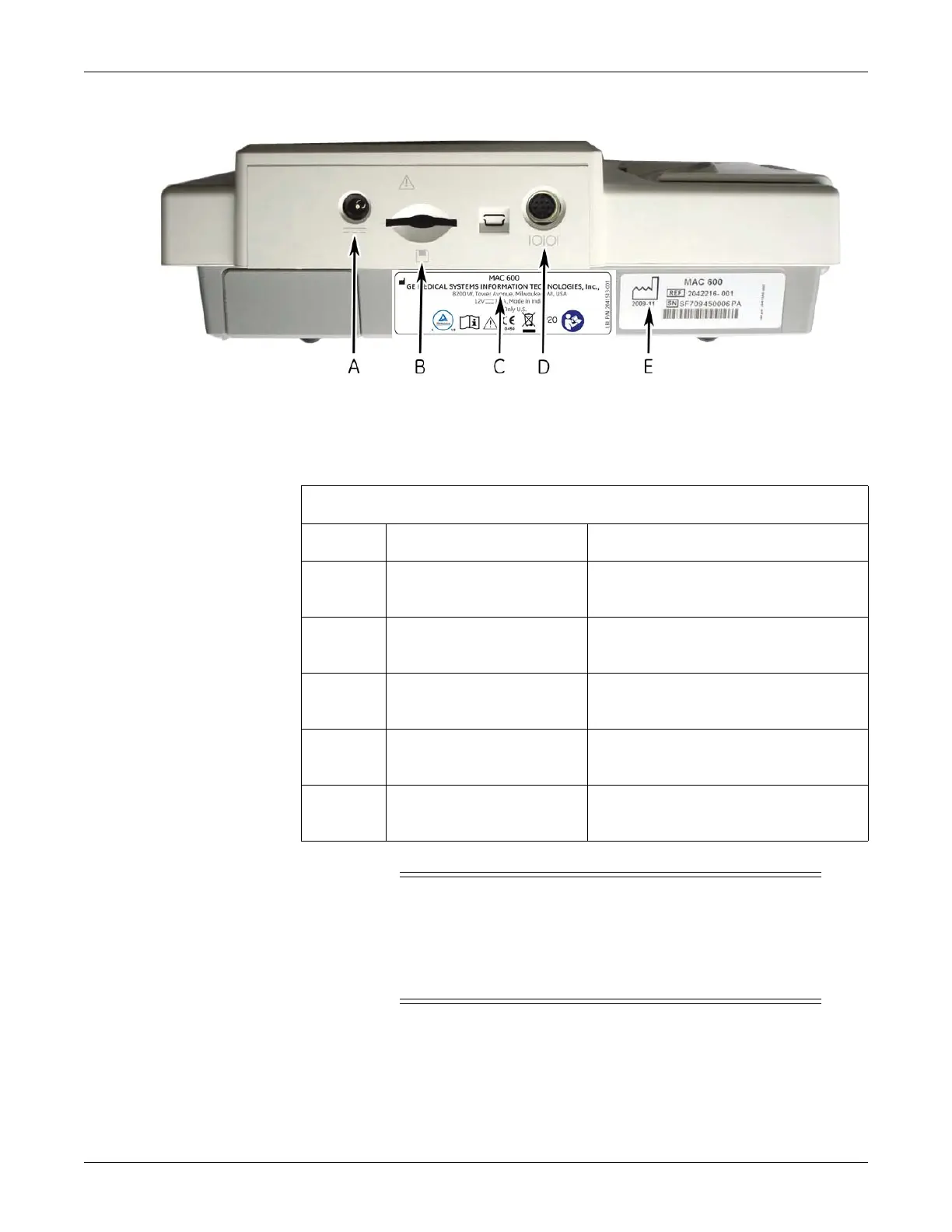

Table 2-2. Back view
Legend Name Description
A DC In Socket Input socket for connecting external ACDC
adaptor.
B SD Card slot Slot for using the SD card.
C Product Label Displays product name, site of manufacture,
power specification, and relevant symbols.
D Serial Port Port for connecting serial cable.
E Serial Number Label Displays product number, date of manufacture,
barcode and serial number of the product.
