Revision G MAC
TM
600 4-5
2047426-002
Maintenance: Preparing System for FRU Replacement
Replacing the Battery

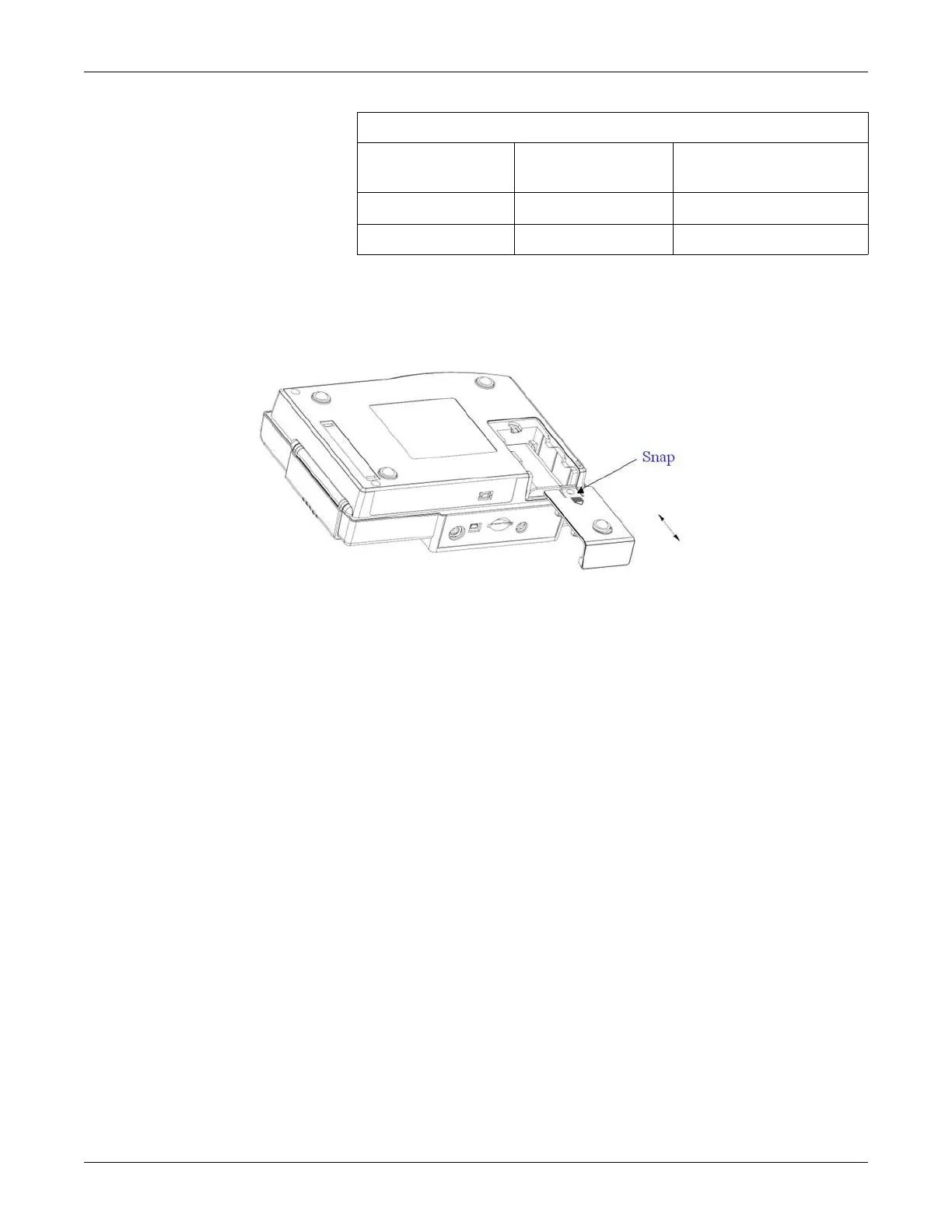

1. Lift the snap region in the battery cover and slide it out of the bottom
cover.
2. Remove the battery from its compartment.
3. Place the new battery into the battery compartment with the battery
label facing downwards, and the battery terminals facing the battery
contacts on the PCB. Reverse voltage protection is implemented
mechanically.
Patient Cable J7 J11
Battery J11 J10
Table 4-2. PWA Connectors
Connector Description
OLD PWA FRU
PN: 2047330-001
NEW PWA FRU
PN:2066447-002
