Maintenance: Preparing System for FRU Replacement

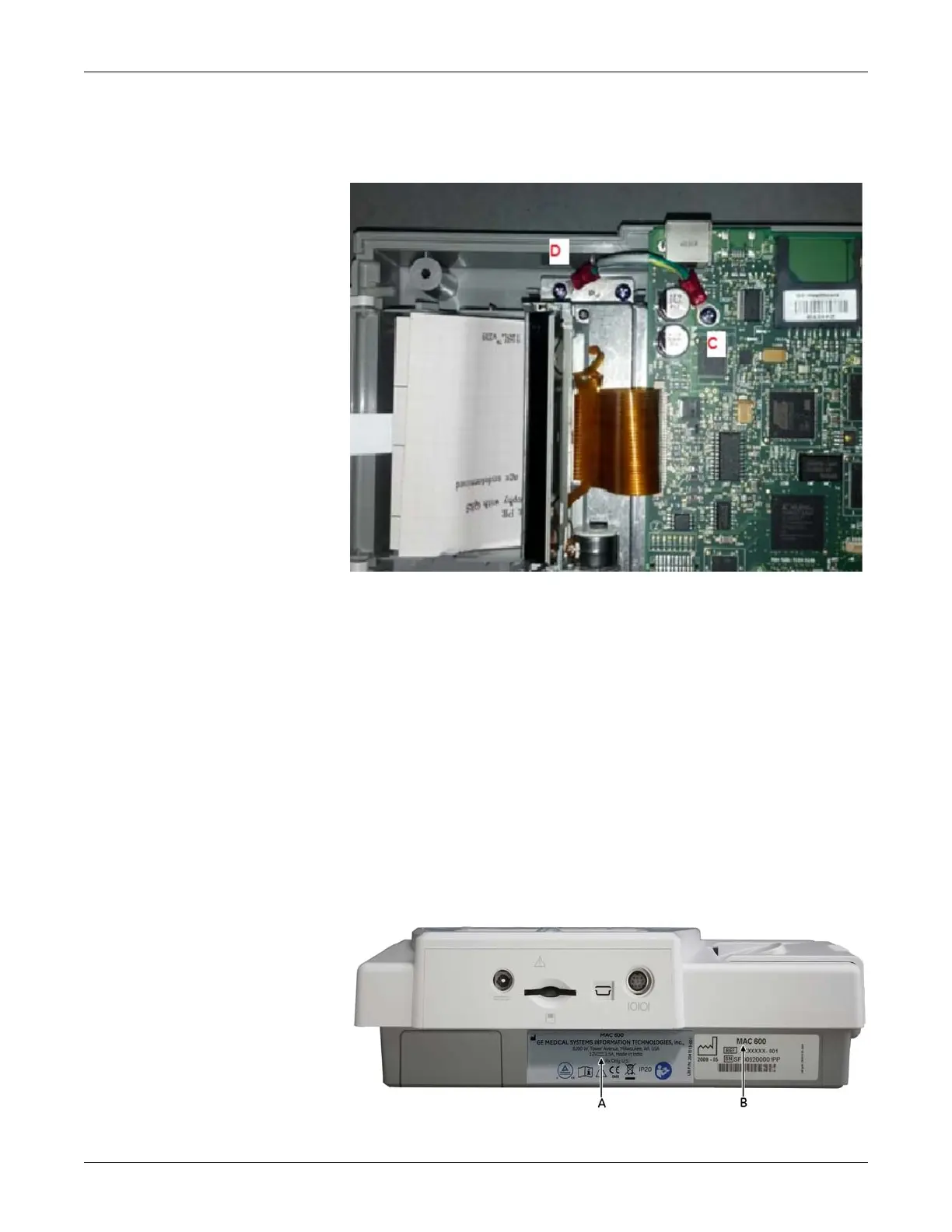

5. Verify the new Earth Cable routing is as shown in the following
photo.
6. Close the device and do the functional and safety testing for the
power supply and Main PCB after the replacement of the FRU. See
“Functional Checkout” on page 4-22.
7. Open the printer door and Connect the power cord to the ACDC
adaptor and adaptor output to the unit. Check for the resistance
between power cord ground and printer metal portion. If the value of
resistance is greater than 1 Ohm, then it results in failure. Verify the
connections if failure happens.
8. Proceed to “Changing the Product Label”.
Changing the Product Label
The product label is located on the back panel, as shown in the following
photo.
