Revision G MAC
TM
600 2-5
2047426-002
Equipment Overview: General Description

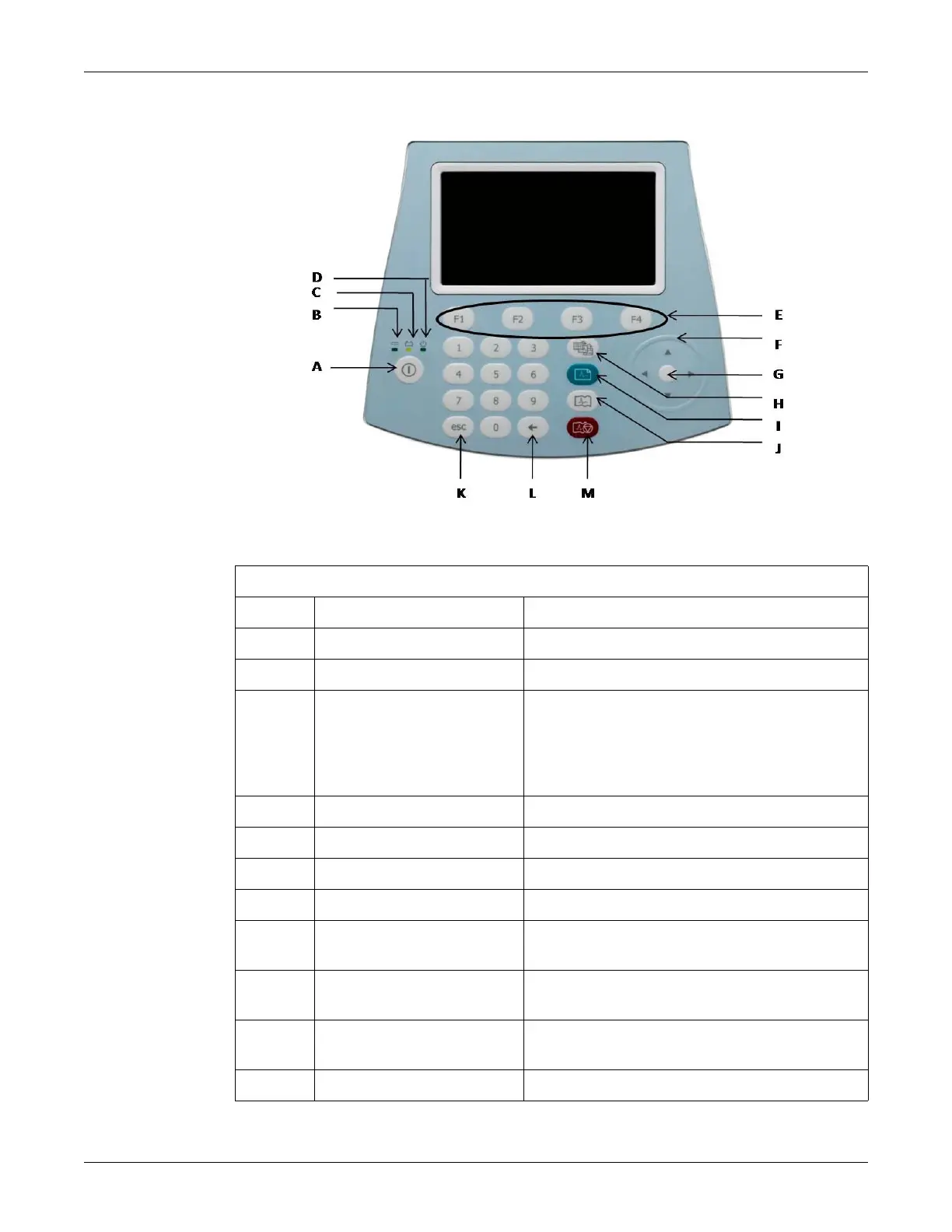

Keypad
Table 2-4. Keypad
Legend Name Description
A Power Turns the system on or off.
B Power LED Indicates the unit is plugged in and receiving DC power.
C Battery LED Indicates various battery states:
Solid amber light indicates that the battery is charging.
Flashing amber light indicates that the battery is low.
Off indicates that the battery is fully charged or that the
battery is not being charged.
D ON/OFF LED Indicates the system is ON.
E Function (F1 through F4) Selects screen menu functions.
F Arrow pad Moves the cursor left, right, up, or down.
G Enter (Trim Pad Enter Key) Press this key every time you want to confirm a selection.
H Leads Scrolls through the leads on display and changes leads
during rhythm print.
I ECG (Green) Acquires an ECG. Press to acquire a 12SL resting ECG,
including measurements and interpretation.
J Rhythm Prints a continuous, real-time rhythm ECG strip. Press the
Stop key to stop the rhythm strip from printing.
K esc To return to the previous menu.
