Chapter 2. Installation
22 Moisture Target Series 6 Hygrometer User’s Manual
2.6.1 Connecting a Standard Probe (cont.)

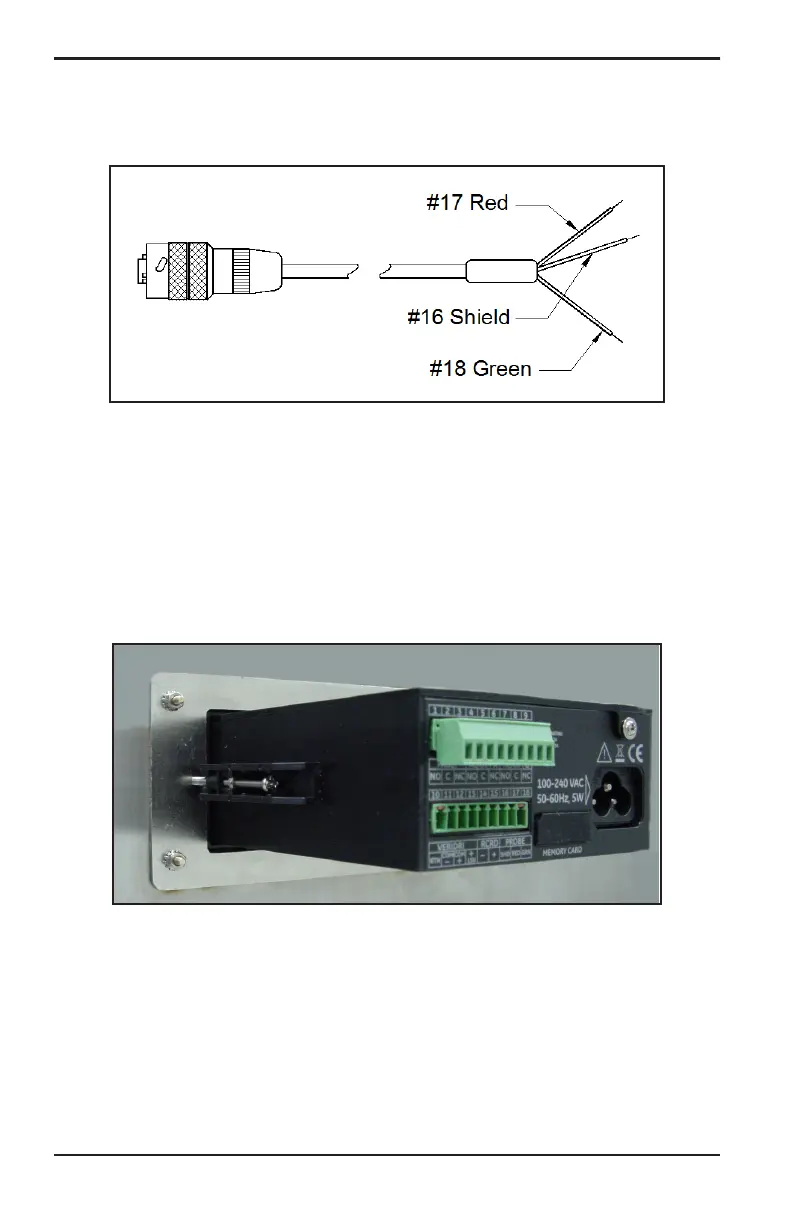

Figure 29: M Series Probe Cable Connections
IMPORTANT: To maintain good contact at the terminal block and to avoid
damaging the pins on the wiring connector, pull the connector
straight off (not at an angle) the terminal block. Then, make
the cable connections while the connector is off the unit.
Finally, after the wiring is complete, push the connector
straight onto the terminal block (not at an angle).
Figure 30: Bottom Connector Removed
