3.4.4 Selecting an Alarm Type (cont.)
• SetPoint: Alarm activates when parameter exceeds upper limit, and
deactivates when parameter is less than lower limit.
• Inner Band: Alarm activates when parameter is between upper and
lower limits.
• Outer Band: Alarm activates when parameter is outside upper and
lower limits.
3.4.5 How the Alarm Types Work

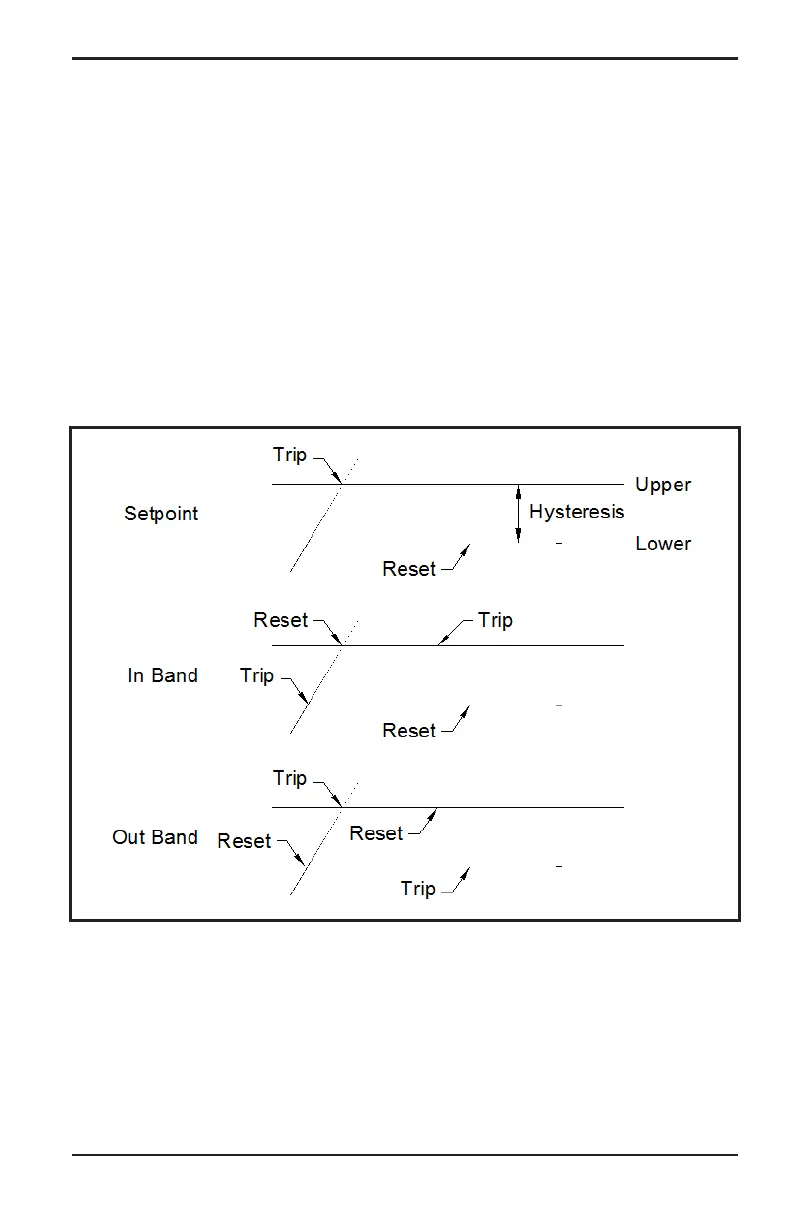

Figure 45: Example of Alarm Types
