CHAPTER 4: INTERFACES
489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL 4–45
Z Enter the desired name in the Device Name field and a description
(optional) of the site.
Z Select the appropriate communications interface (Ethernet or Serial) and
fill in the required information for the 489. See Connecting EnerVista
489 Setup to the Relay on page 4–15 for details.

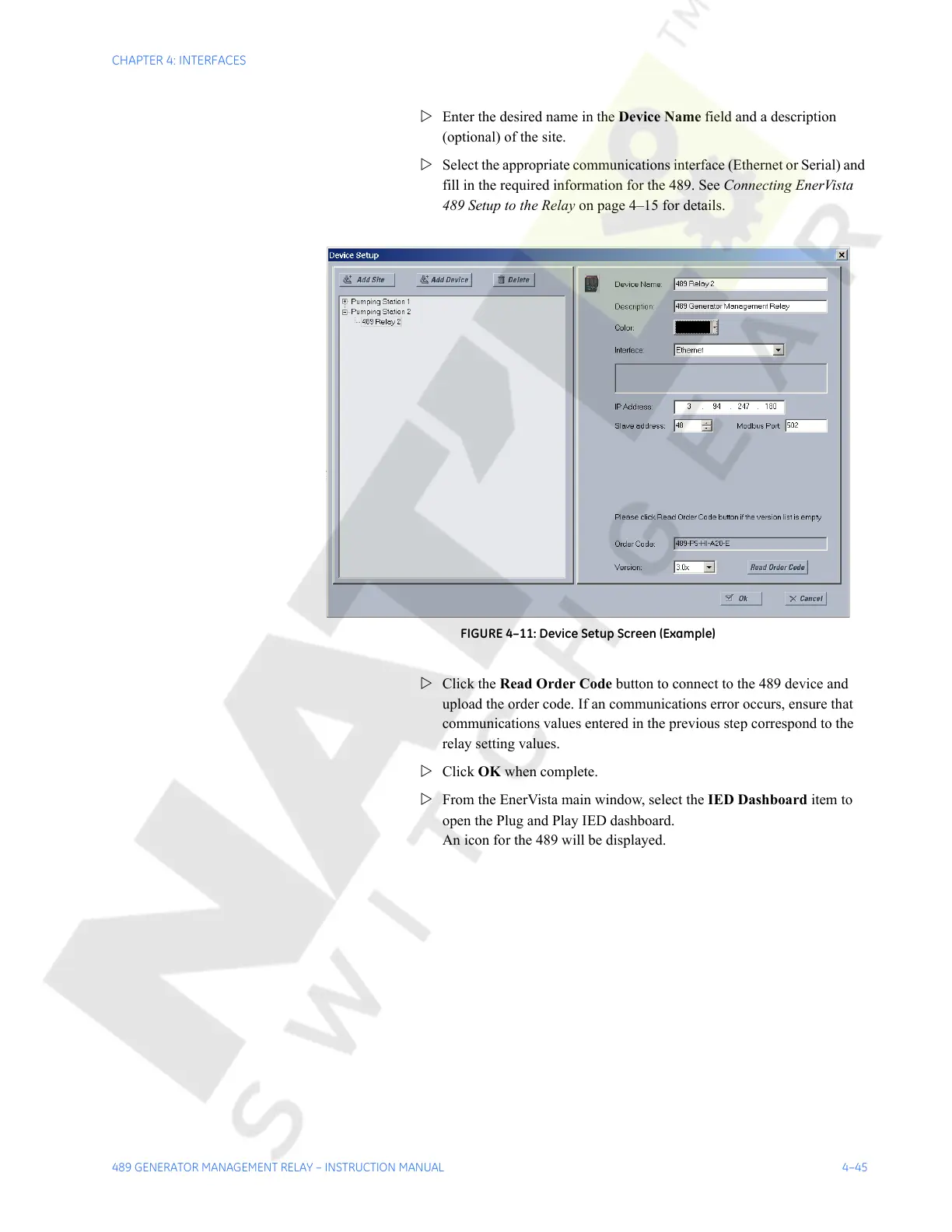

FIGURE 4–11: Device Setup Screen (Example)
Z Click the Read Order Code button to connect to the 489 device and
upload the order code. If an communications error occurs, ensure that
communications values entered in the previous step correspond to the
relay setting values.
Z Click OK when complete.
Z From the EnerVista main window, select the IED Dashboard item to
open the Plug and Play IED dashboard.
An icon for the 489 will be displayed.
