GE Multilin 489

5–96 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 5: SETPOINTS

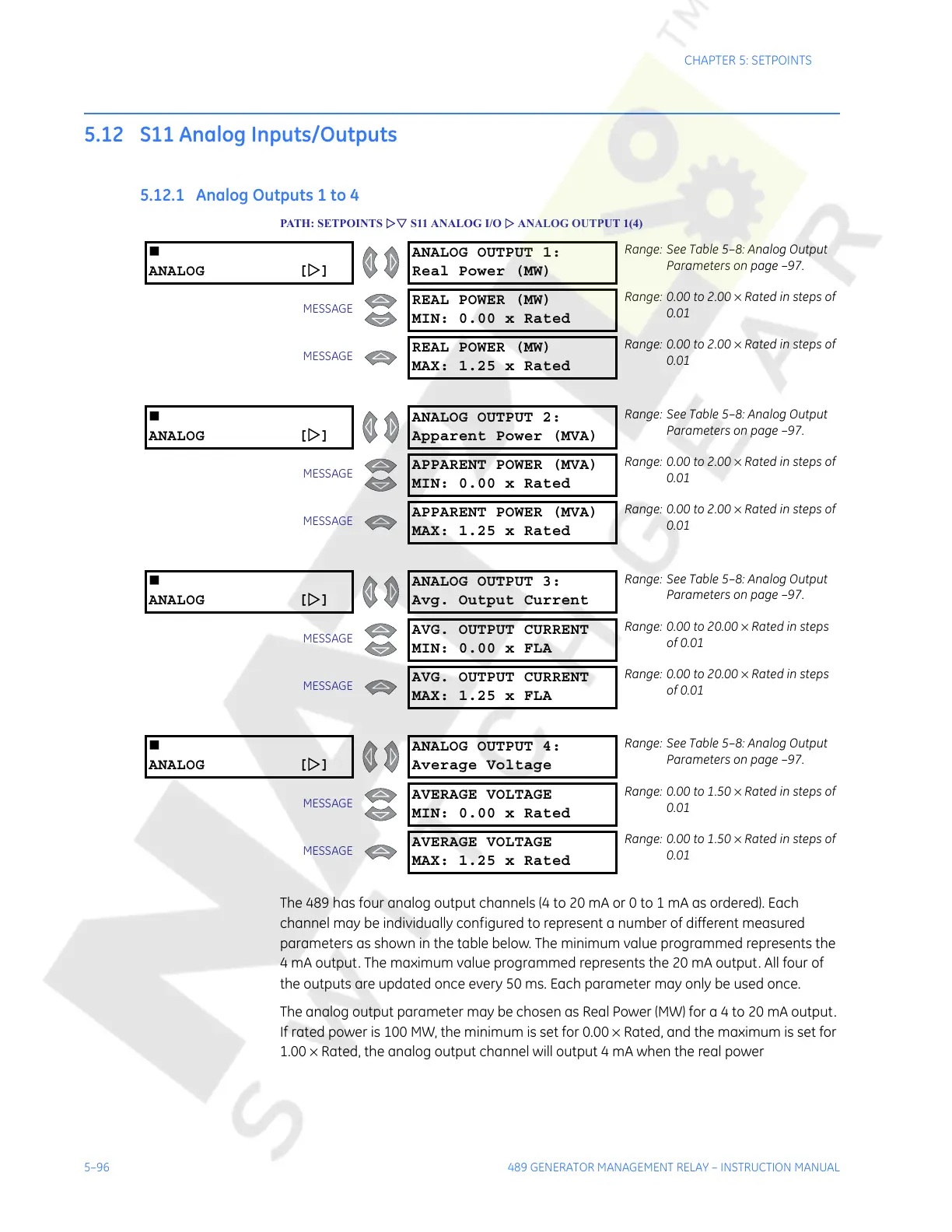

5.12 S11 Analog Inputs/Outputs
5.12.1 Analog Outputs 1 to 4
PATH: SETPOINTS ZV S11 ANALOG I/O Z ANALOG OUTPUT 1(4)
The 489 has four analog output channels (4 to 20 mA or 0 to 1 mA as ordered). Each
channel may be individually configured to represent a number of different measured
parameters as shown in the table below. The minimum value programmed represents the
4 mA output. The maximum value programmed represents the 20 mA output. All four of
the outputs are updated once every 50 ms. Each parameter may only be used once.
The analog output parameter may be chosen as Real Power (MW) for a 4 to 20 mA output.
If rated power is 100 MW, the minimum is set for 0.00 × Rated, and the maximum is set for
1.00 × Rated, the analog output channel will output 4 mA when the real power

ANALOG [Z]
ANALOG OUTPUT 1:
Real Power (MW)
Range: See Table 5–8: Analog Output
Parameters on page –97.
MESSAGE
REAL POWER (MW)
MIN: 0.00 x Rated
Range: 0.00 to 2.00 × Rated in steps of
0.01
MESSAGE
REAL POWER (MW)
MAX: 1.25 x Rated
Range: 0.00 to 2.00 × Rated in steps of
0.01

ANALOG [Z]
ANALOG OUTPUT 2:
Apparent Power (MVA)
Range: See Table 5–8: Analog Output
Parameters on page –97.
MESSAGE
APPARENT POWER (MVA)
MIN: 0.00 x Rated
Range: 0.00 to 2.00 × Rated in steps of
0.01
MESSAGE
APPARENT POWER (MVA)
MAX: 1.25 x Rated
Range: 0.00 to 2.00 × Rated in steps of
0.01

ANALOG [Z]
ANALOG OUTPUT 3:
Avg. Output Current
Range: See Table 5–8: Analog Output
Parameters on page –97.
MESSAGE
AVG. OUTPUT CURRENT
MIN: 0.00 x FLA
Range: 0.00 to 20.00 × Rated in steps
of 0.01
MESSAGE
AVG. OUTPUT CURRENT
MAX: 1.25 x FLA
Range: 0.00 to 20.00 × Rated in steps
of 0.01

ANALOG [Z]
ANALOG OUTPUT 4:
Average Voltage
Range: See Table 5–8: Analog Output
Parameters on page –97.
MESSAGE
AVERAGE VOLTAGE
MIN: 0.00 x Rated
Range: 0.00 to 1.50 × Rated in steps of
0.01
MESSAGE
AVERAGE VOLTAGE
MAX: 1.25 x Rated
Range: 0.00 to 1.50 × Rated in steps of
0.01
