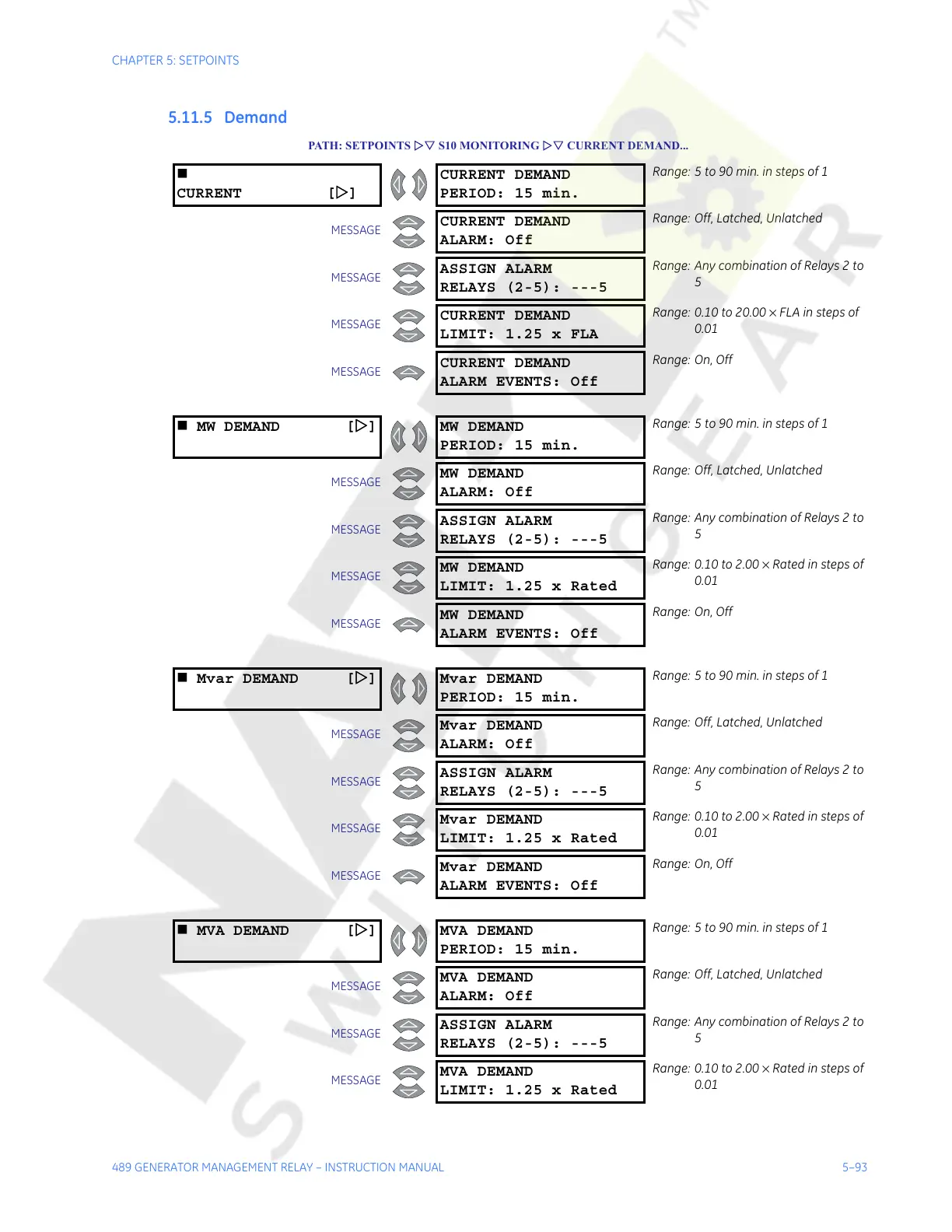

5.11.5 Demand
PATH: SETPOINTS ZV S10 MONITORING ZV CURRENT DEMAND...

CURRENT [Z]
CURRENT DEMAND
PERIOD: 15 min.
Range: 5 to 90 min. in steps of 1
MESSAGE
CURRENT DEMAND
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS (2-5): ---5
Range: Any combination of Relays 2 to
5
MESSAGE
CURRENT DEMAND
LIMIT: 1.25 x FLA
Range: 0.10 to 20.00 × FLA in steps of
0.01
MESSAGE
CURRENT DEMAND
ALARM EVENTS: Off
Range: On, Off
 MW DEMAND [Z] MW DEMAND
PERIOD: 15 min.
Range: 5 to 90 min. in steps of 1
MESSAGE
MW DEMAND
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS (2-5): ---5
Range: Any combination of Relays 2 to
5
MESSAGE
MW DEMAND
LIMIT: 1.25 x Rated
Range: 0.10 to 2.00 × Rated in steps of
0.01
MESSAGE
MW DEMAND
ALARM EVENTS: Off
Range: On, Off
 Mvar DEMAND [Z] Mvar DEMAND
PERIOD: 15 min.
Range: 5 to 90 min. in steps of 1
MESSAGE
Mvar DEMAND
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS (2-5): ---5
Range: Any combination of Relays 2 to
5
MESSAGE
Mvar DEMAND
LIMIT: 1.25 x Rated
Range: 0.10 to 2.00 × Rated in steps of
0.01
MESSAGE
Mvar DEMAND
ALARM EVENTS: Off
Range: On, Off
 MVA DEMAND [Z] MVA DEMAND
PERIOD: 15 min.
Range: 5 to 90 min. in steps of 1
MESSAGE
MVA DEMAND
ALARM: Off
Range: Off, Latched, Unlatched
MESSAGE
ASSIGN ALARM
RELAYS (2-5): ---5
Range: Any combination of Relays 2 to
5
MESSAGE
MVA DEMAND
LIMIT: 1.25 x Rated
Range: 0.10 to 2.00 × Rated in steps of
0.01
