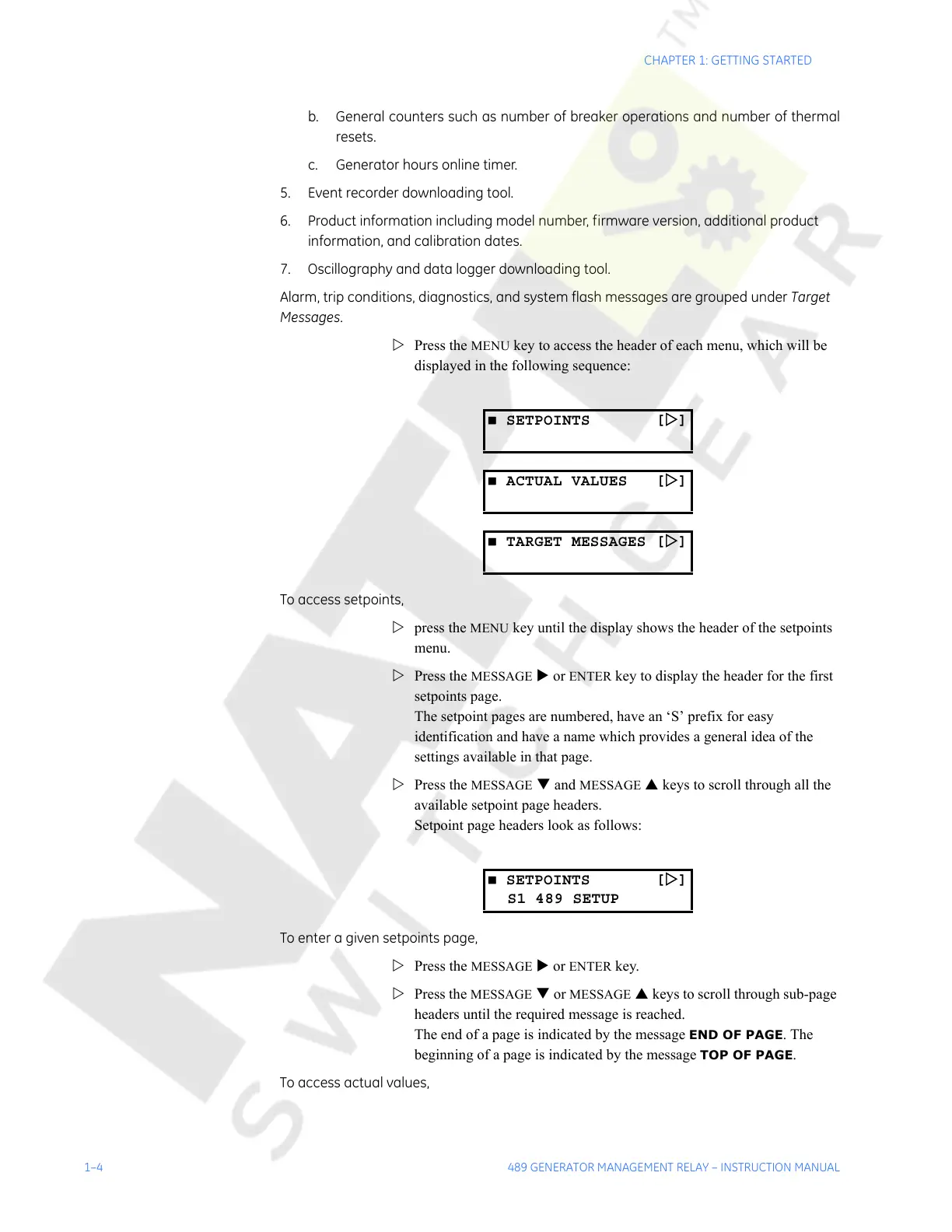

1–4 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 1: GETTING STARTED
b. General counters such as number of breaker operations and number of thermal
resets.
c. Generator hours online timer.
5. Event recorder downloading tool.
6. Product information including model number, firmware version, additional product
information, and calibration dates.
7. Oscillography and data logger downloading tool.
Alarm, trip conditions, diagnostics, and system flash messages are grouped under Target
Messages.
Z Press the
MENU key to access the header of each menu, which will be
displayed in the following sequence:
To access setpoints,
Z press the
MENU key until the display shows the header of the setpoints
menu.
Z Press the
MESSAGE X or ENTER key to display the header for the first
setpoints page.
The setpoint pages are numbered, have an ‘S’ prefix for easy
identification and have a name which provides a general idea of the
settings available in that page.
Z Press the
MESSAGE T and MESSAGE S keys to scroll through all the
available setpoint page headers.
Setpoint page headers look as follows:
To enter a given setpoints page,
Z Press the
MESSAGE X or ENTER key.
Z Press the
MESSAGE T or MESSAGE S keys to scroll through sub-page
headers until the required message is reached.
The end of a page is indicated by the message
END OF PAGE. The
beginning of a page is indicated by the message
TOP OF PAGE.
To access actual values,
îš„ SETPOINTS [Z]
îš„ ACTUAL VALUES [Z]
îš„ TARGET MESSAGES [Z]
îš„ SETPOINTS [Z]
S1 489 SETUP
