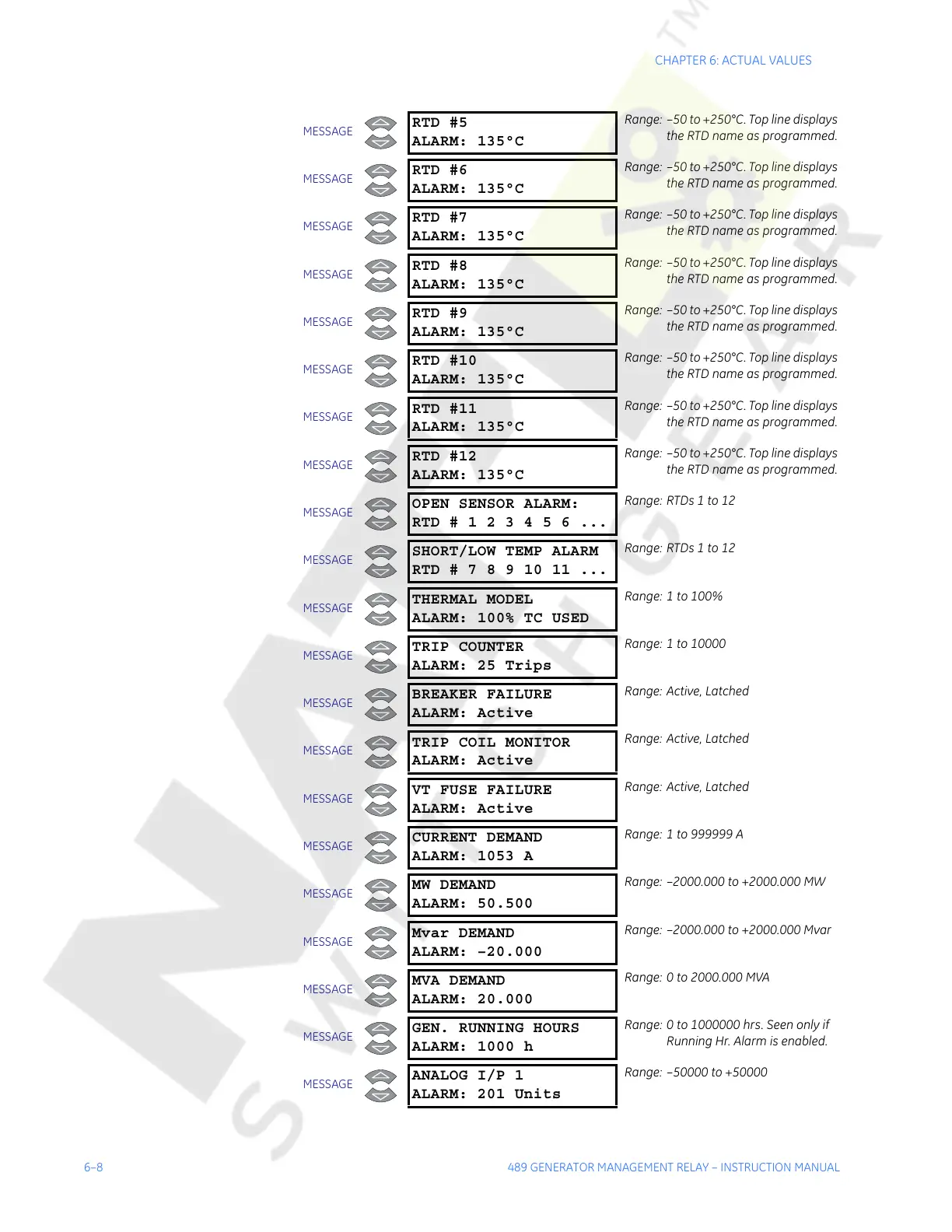

6–8 489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL
CHAPTER 6: ACTUAL VALUES
MESSAGE
RTD #5
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
RTD #6
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
RTD #7
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
RTD #8
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
RTD #9
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
RTD #10
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
RTD #11
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
RTD #12
ALARM: 135°C
Range: –50 to +250°C. Top line displays
the RTD name as programmed.
MESSAGE
OPEN SENSOR ALARM:
RTD # 1 2 3 4 5 6 ...
Range: RTDs 1 to 12
MESSAGE
SHORT/LOW TEMP ALARM
RTD # 7 8 9 10 11 ...
Range: RTDs 1 to 12
MESSAGE
THERMAL MODEL
ALARM: 100% TC USED
Range: 1 to 100%
MESSAGE
TRIP COUNTER
ALARM: 25 Trips
Range: 1 to 10000
MESSAGE
BREAKER FAILURE
ALARM: Active
Range: Active, Latched
MESSAGE
TRIP COIL MONITOR
ALARM: Active
Range: Active, Latched
MESSAGE
VT FUSE FAILURE
ALARM: Active
Range: Active, Latched
MESSAGE
CURRENT DEMAND
ALARM: 1053 A
Range: 1 to 999999 A
MESSAGE
MW DEMAND
ALARM: 50.500
Range: –2000.000 to +2000.000 MW
MESSAGE
Mvar DEMAND
ALARM: –20.000
Range: –2000.000 to +2000.000 Mvar
MESSAGE
MVA DEMAND
ALARM: 20.000
Range: 0 to 2000.000 MVA
MESSAGE
GEN. RUNNING HOURS
ALARM: 1000 h
Range: 0 to 1000000 hrs. Seen only if
Running Hr. Alarm is enabled.
MESSAGE
ANALOG I/P 1
ALARM: 201 Units
Range: –50000 to +50000
