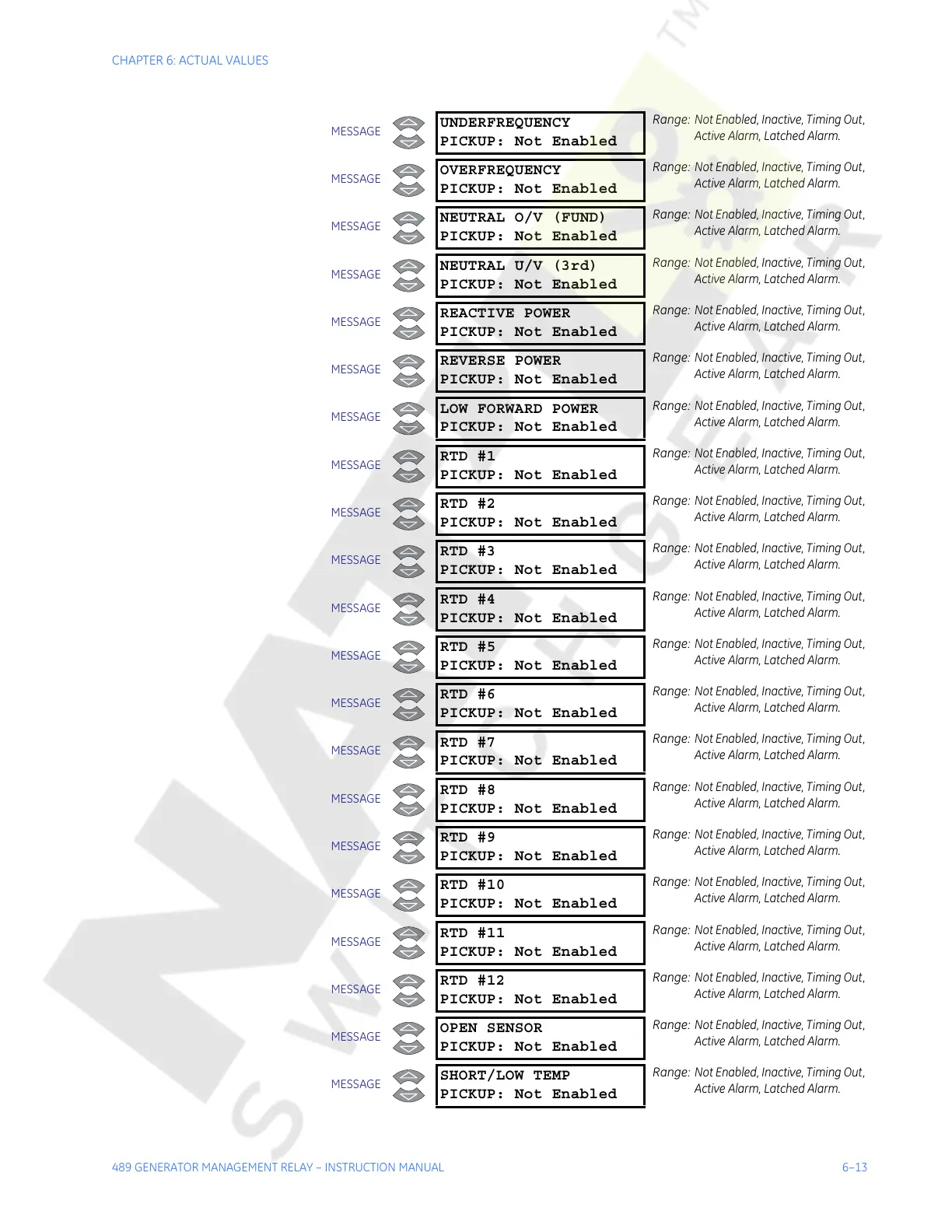

CHAPTER 6: ACTUAL VALUES
489 GENERATOR MANAGEMENT RELAY – INSTRUCTION MANUAL 6–13
MESSAGE
UNDERFREQUENCY
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
OVERFREQUENCY
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
NEUTRAL O/V (FUND)
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
NEUTRAL U/V (3rd)
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
REACTIVE POWER
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
REVERSE POWER
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
LOW FORWARD POWER
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #1
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #2
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #3
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #4
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #5
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #6
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #7
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #8
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #9
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #10
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #11
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
RTD #12
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
OPEN SENSOR
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
MESSAGE
SHORT/LOW TEMP
PICKUP: Not Enabled
Range:
Not Enabled, Inactive, Timing Out,
Active Alarm, Latched Alarm
.
