CHAPTER 2: INSTALLATION INTERFACING WITH THE MM300
MM300 MOTOR MANAGEMENT SYSTEM – QUICKSTART GUIDE 23

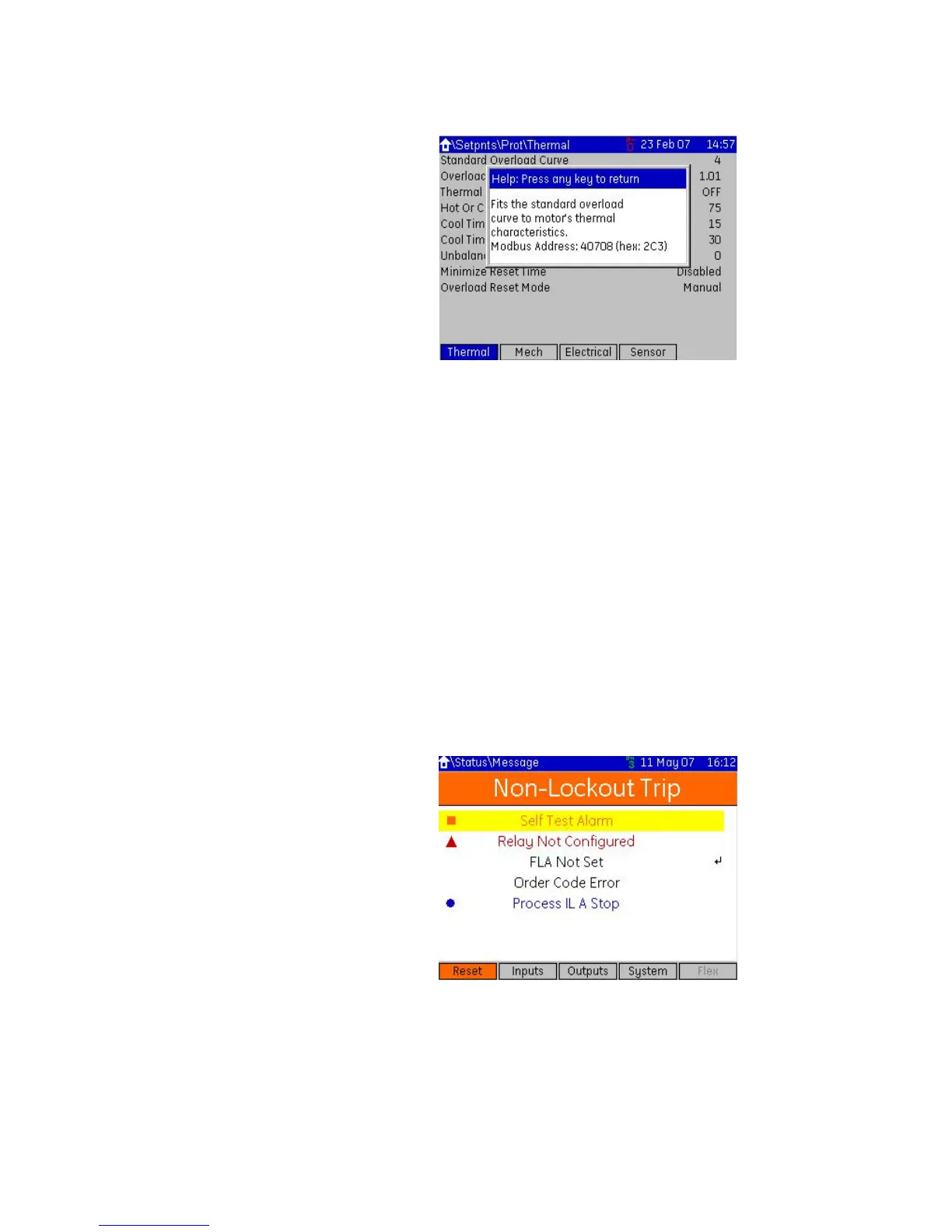

Figure 2-27: Typical MM300 help window
Pressing an invalid key displays a message explaining the problem and recommending a
solution. Where the keypress is invalid because a security passcode is required, the dialog
window will be a passcode entry window.
When a lockout occurs that clears when a count-down timer expires or when the thermal
capacity recovers for a restart, the Status > Message page is displayed indicating timer
value or thermal capacity.
Status pages
The status pages provide the user with up-to-date information on the current status of the
MM300.
Status pages are divided into five sections.
• Message (displays all locked out conditions plus conditions such as alarms, internal
faults, control status, etc.).
• Inputs (displays the present state of assigned contact inputs).
• Outputs (displays the present state of assigned contact outputs).
• System (displays the present state of the communications interface).
• Flex (displays the present state of the FlexLogic™ engine and number of lines used.)
A typical display is shown below:
Figure 2-28: Typical status message page
Message types are classified by color and associated icon type, as follows::
• Red Triangle = Trip
• Orange Square = Alarm
• Blue Circle = Inhibit
• Black Text = Information Message
Message can have an associated countdown timer.
