LCD icons
The LCD display for the NX-10 keypad consists of two separate sections, one for displaying 2 rows
of 16 characters of alphanumeric data, and one for showing icons. The display section on the wireless
keypad showing alphanumeric data is only turned ON while the user is operating the keypad, and
turns OFF 30 seconds after the last key hit. The icon section is always ON and shows all kinds of
conditions as explained in Table 4. They can either be OFF or ON or the
y can be flashing to draw
attention.

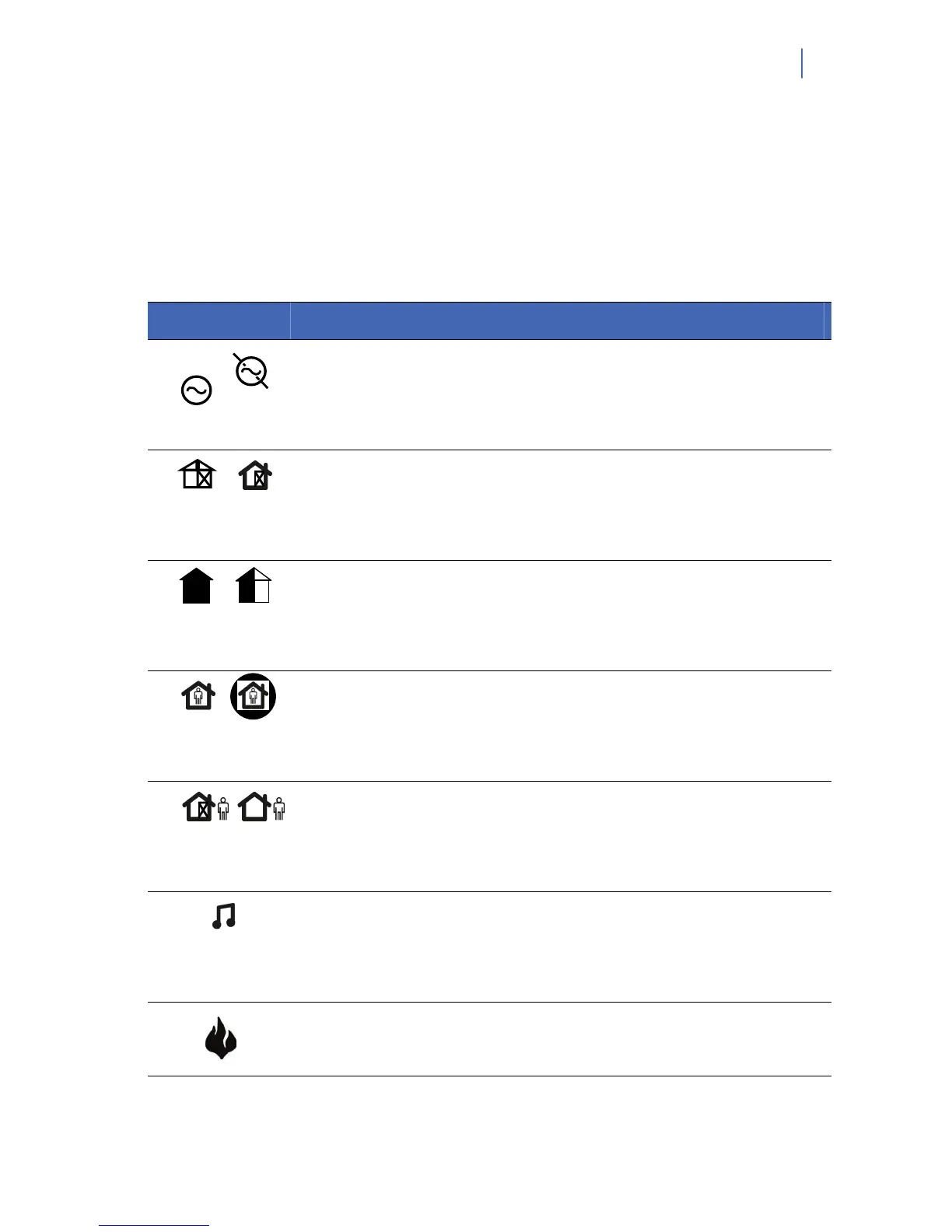

Table 4. LCD icons
Symbol Name Description
1
Power
If mains power is present, the left icon is displayed. If mains power is not
present, the right icon shows up. Panel battery low is indicated by flashing
the icon, either the left one or the right one.
2
Bypass
In MASTER mode, the left icon shows up if ANY zone in any partition is
bypassed. In PARTITION mode, the right icon is being displayed if ANY
zone is bypassed.
3
Full/Part armed
In MASTER mode, the FULL icon (left) shows up only if ALL partitions are
ARMED, while the PART icon (right) shows up if NOT ALL partitions are
ARMED.
4
Stay/Night
In PARTITION mode, the STAY icon (left) shows up if armed and staying,
and the NIGHT icon (right) if the night function is enabled.
5
Away
In PARTITION mode, one of these icons shows up if armed and leaving, the
left one if ANY zone is bypassed, the right one if NO zone is bypassed.
6
Chime
In CHIME mode, this icon will be ON. If the CHIME mode is disabled, it will
be OFF.
7
Fire
This icon will be displayed when a fire zone has been activated (fire alarm),
and it will flash in case of fire trouble.
