GE PGS908 Technical Service Guide

– 51 –

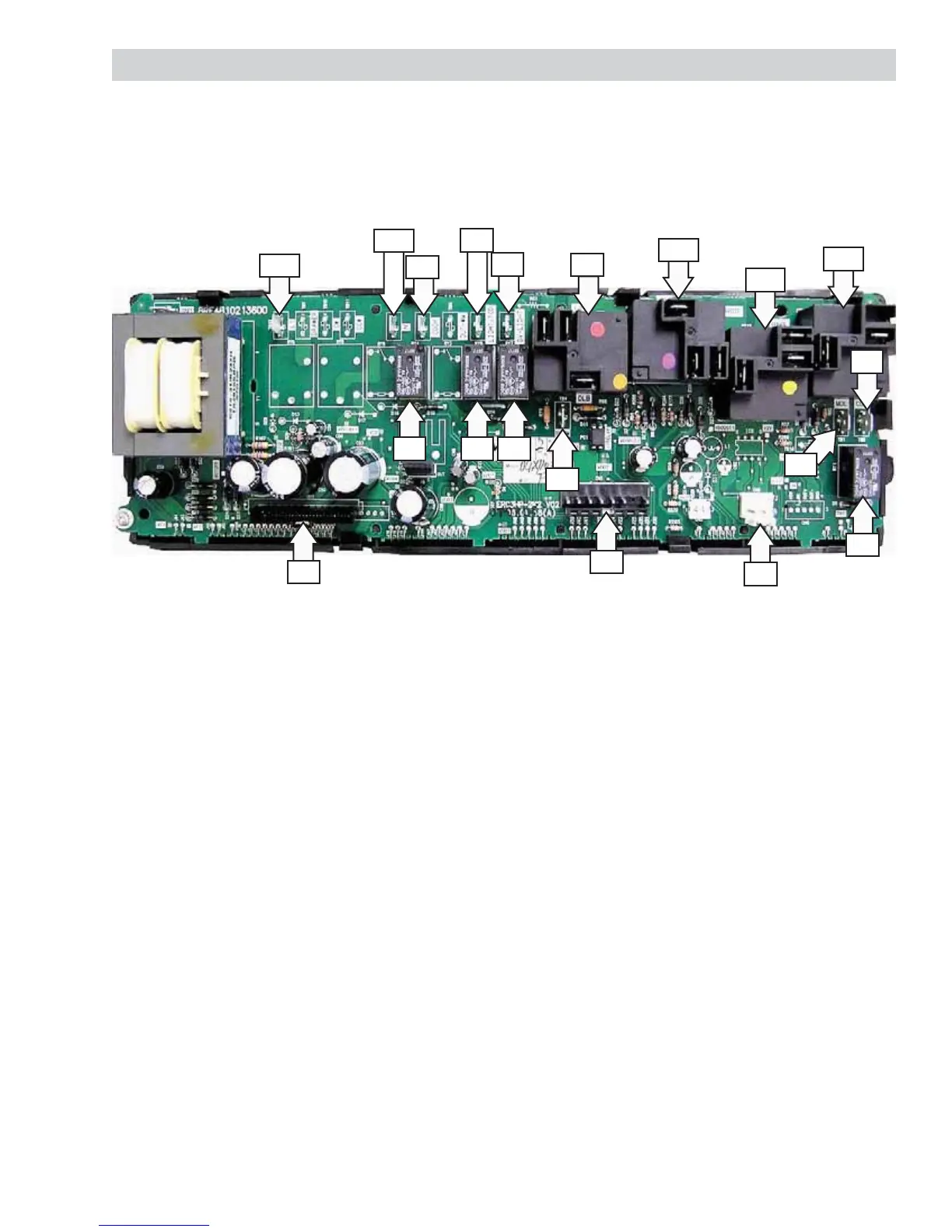

Electronic Range Control (ERC) Pin Locator
Model PGS975
CN2
RY2
RY13
RY12
RY11
CN6
CN1
TB13
TB6
TB9
TB14
TB8
TB4
TB2
TB1
RY4
RY6 RY7
RY1
CN1 - Ribbon to Glass Touch Panel
CN2 - Sensor, Thermal Limit Switch, Door Lock
Switches, Probe
CN6 - Lockout Valve Switches
RY1 - Door Lock Motor
RY2 - Convection Fan High/Low Speed
RY4 - Lockout Valve Motor
RY6 - Cooling Fans
RY7 - Oven Lights
RY11 - Broil
RY12 - Bake
RY13 - Convection Fan Common
TB1 - Common
TB2 - Door Lock Motor
TB4 - Igniter Switch Lockout Error Circuit
TB6 - Lockout Valve Motor Neutral
TB8 - Lockout Valve Motor
TB9 - Oven Lights Neutral
TB13 - Line (L1)
TB14 - Neutral
