Page #60 background imageLoading...
Page #60 background image
– 60 –

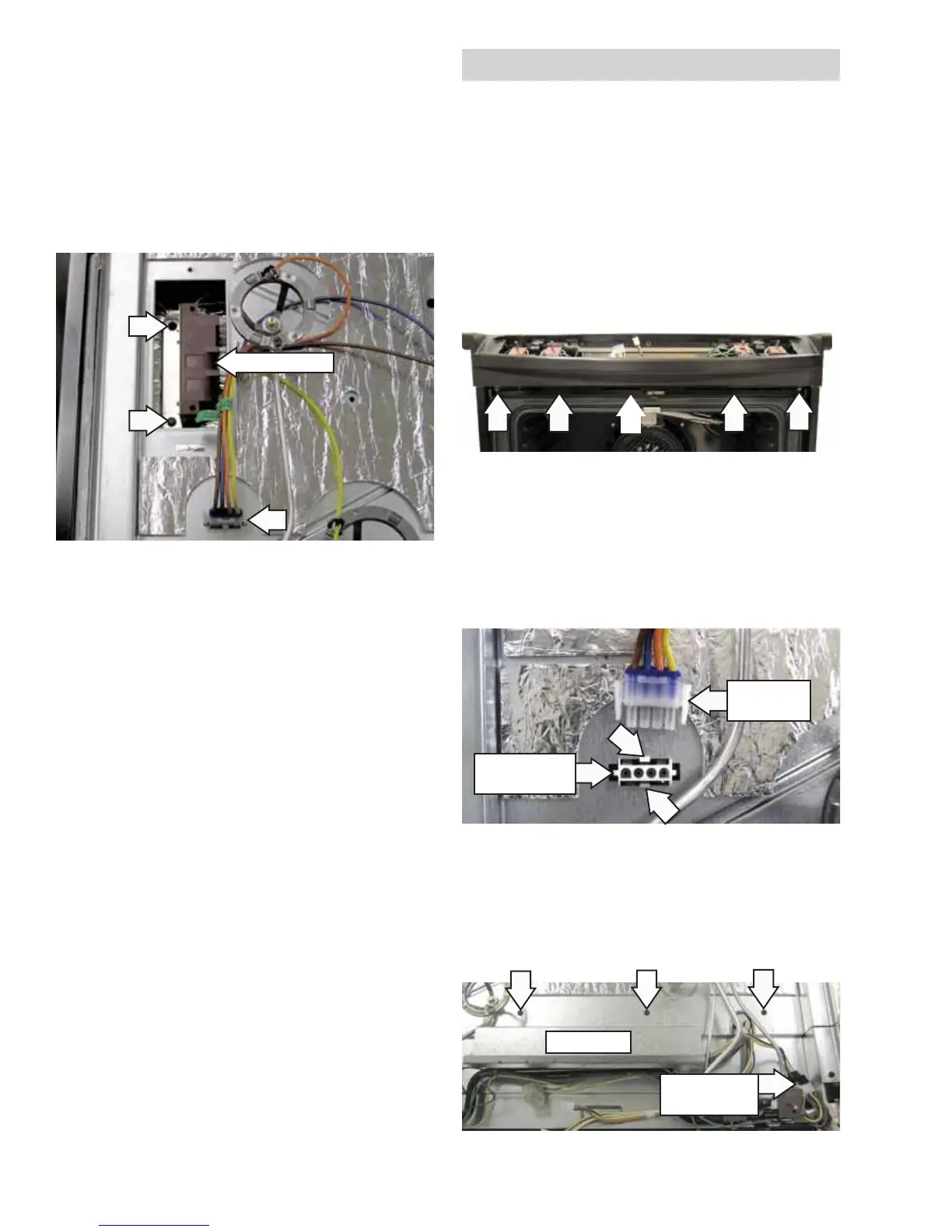

Lift the spark module above the opening in the 4.
burner box then mark and disconnect the wiring
from the module.
Remove the two 1/4-in. hex-head screws and 5.
the mounting bracket from the spark module.
To remove the spark module:
Remove the maintop. (See 1.
Maintop Removal.)
Remove the 1/4-in. hex-head screw and the 2.
spark module access cover located near the left
rear surface burner.
Remove two 1/4-in. hex-head screws and the 3.
spark module.
Spark Module
Burner Box Removal
It is necessary to remove the burner box to access
the door lock assembly and the thermal switches.
To remove the burner box:
Remove the maintop. (See 1.
Maintop Removal.)
Open the oven door.2.
Remove the ve 1/4-in. hex-head screws holding 3.
the control panel frame to the maintop baf e,
then remove the control panel frame.
Disconnect the igniter wire harness from the 4.
spark module wire harness.
Press inward the 2 tabs and push the spark 5.
module wire harness below the burner box.
Remove the three 1/4-in. hex-head screws and 6.
the heat shield.
Disconnect the igniter switch wire harness.7.
Spark Module
Wire Harness
Igniter Wire
Harness
Heat Shield
Igniter Switch
Wire Harness
(Continued next page)
