Caution
Ensure the valve seal is in place BEFORE •
installing the valve.
Tighten bracket screws evenly.•
Valve Seal
To remove the dual burner valve:
Access the burner valve. Follow steps 1 through 1.
3. (See To remove the single burner valve.)
Remove the 9/16-in. nut and separate the 2.
burner tube from the burner valve.
Remove the 7/16-in. nut and separate the 3.
simmer burner tube from the burner valve.

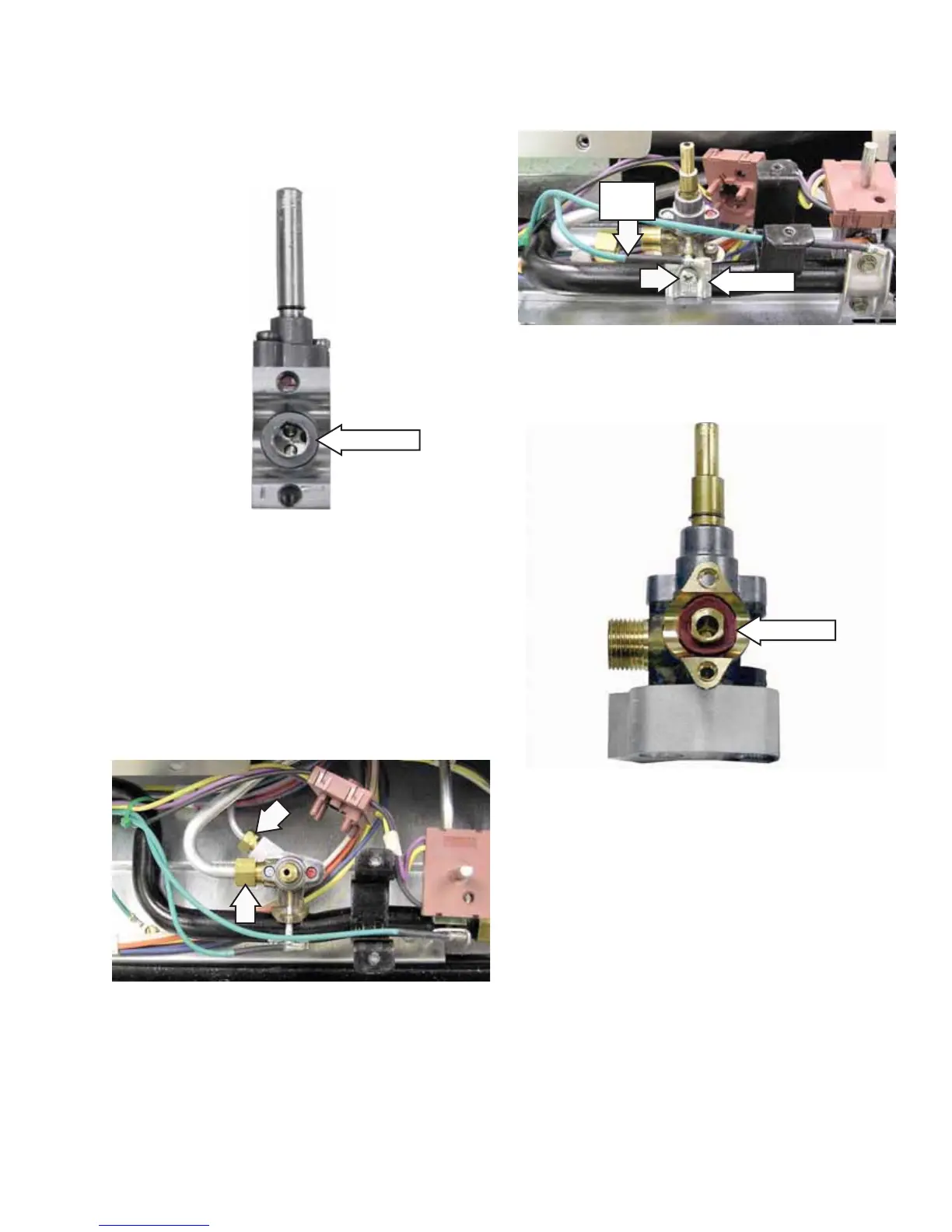

Caution: Ensure the valve seal is in place BEFORE
installing the valve.
Remove the Phillips-head screw, ground wire, 4.
and bracket that hold the burner valve to the
manifold.
Valve Seal
Ground
Wire
Bracket
To Next Page
