GE MEDICAL SYSTEMS PRECISION RXI SYSTEM PRE-INSTALLATION
D
IRECTION 5123449-100, REVISION 12
_____________________________________________________________________________________________
June 2009 Page 29 / 111
5.2.1.1.3. -30/+90 Non-Elevating Table cont.
Plate supplied as a serial standard accessory (screws and bolts are supplied with base plate)
Fixation plate for non-elevating table (weight: 114 kg).
Concrete floor, min. height: 200mm (concrete as per Table “DIN 1045 BN350”).
Small blocks of the LIEBIG SK15/95 type, length 145mm.
• Make six holes in the floor: the holes will be as follows: 15 mm diameter x 145mm.
• By means of the special shims supplied, you shall level the plate with a flatness of max. 1mm/m, (Fig. 1
page 30).
• Check the proper flatness by means of the special ruler.
• Tighten the screws by means of a 50N/m driving torque.

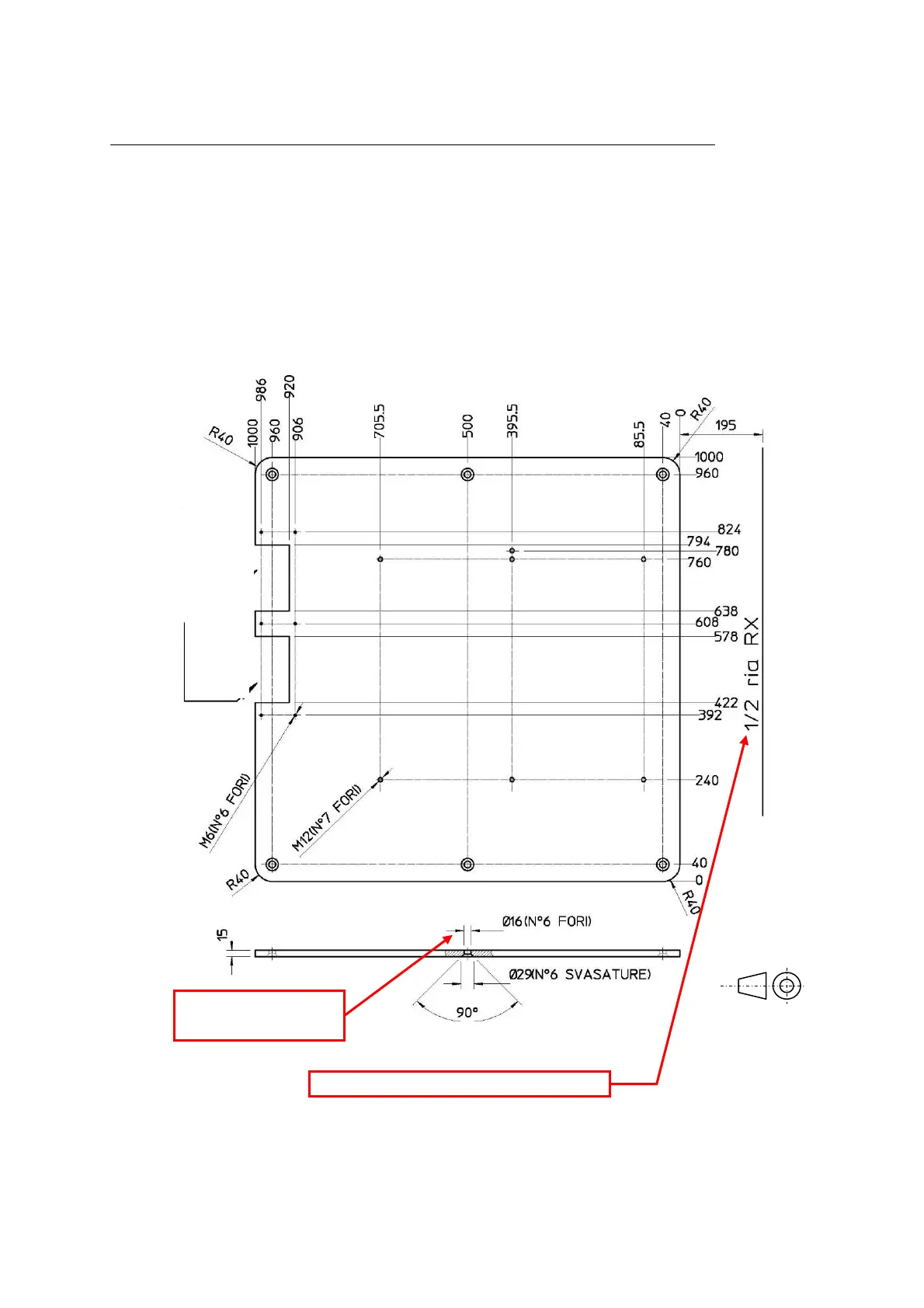

Base plate for not elevating
Base plate with N°6
holes 16mm each
Table
cable
support
slot
X-Rays beam middle reference line
