SEER Light/SEER Light Extend Controller: Component Names and Locations
Component Names and Locations
Structure

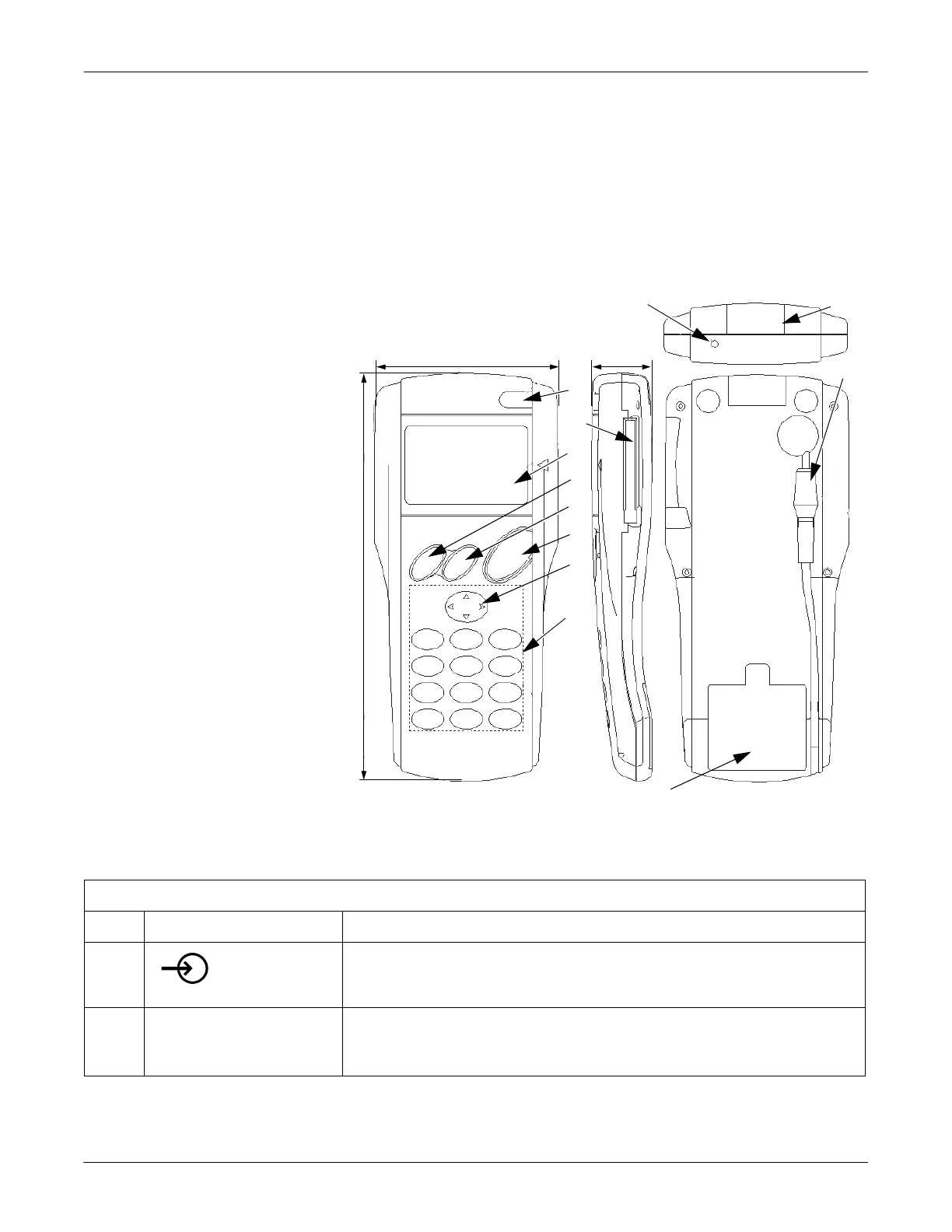

Below are the names of each part on the SEER Light/SEER Light Extend
Controller.
037A
A
1.2 in.
(30 mm)
3.5 in. (90 mm)
7.9 in. (200 mm)
C
D
E
F
G
H
I
J
K
B
L
Table 4. Controller Parts List
Item Name Description
A
input connector
Used to connect to the SEER Light recorder to check recording conditions.
NOTE This feature is reserved for future use.
B infrared terminal Used to communicate with the SEER Light recorder.
 Transfer the instructions to a SEER Light recorder before recording.
 Receive ECG waveform recording data from a SEER Light recorder to preview.
