GE VAT2000 User Manual

2. Installation and Wiring
2-1
Chapter 2 Installation and Wiring
CAUTION
• Always transport the product with an appropriate amount according to the products weight.
Failure to observe this could lead to injuries.
• Install the inverter, dynamic braking unit and resistor, and other peripheral devices on non-combustible
material such as metal.
Failure to observe this could lead to fires.
• Do not place the product near inflammable items.
Failure to observe this could lead to fires.
• Do not hold the front cover while transporting the product.
Failure to observe this could lead to injuries from dropping.
• Do not let conductive materials such as screws or metal pieces and inflammable materials such as oil
enter the product.
Failure to observe this could lead to fires.
• Install the product in a place that can withstand the weight of the product, and follow the instruction
manual.
Failure to do so could lead to injuries from dropping.
• Do not install and operate an inverter that is damaged or that is missing parts.
Failure to observe this could lead to injuries.
• Always observe the conditions described in the instruction manual for the installation environment.
Failure to observe this could lead to faults.
2-1 Installation Environment
Observe the following points when installing the inverter.
1) Install the inverter vertically so that the wire lead-in holes face downward.
2) Make sure that the ambient temperature is -10ºC to 50ºC.
3) Avoid installation in the following environment.
• Places subject to direct sunlight
• Places with oil mist, dust or cotton lint, or subject to salty winds
• Places with corrosive gas, explosive gas or high humidity levels
• Places near vibration sources such as dollies or press machines
• Places made of flammable materials such as wood, or places that are not heat resistant

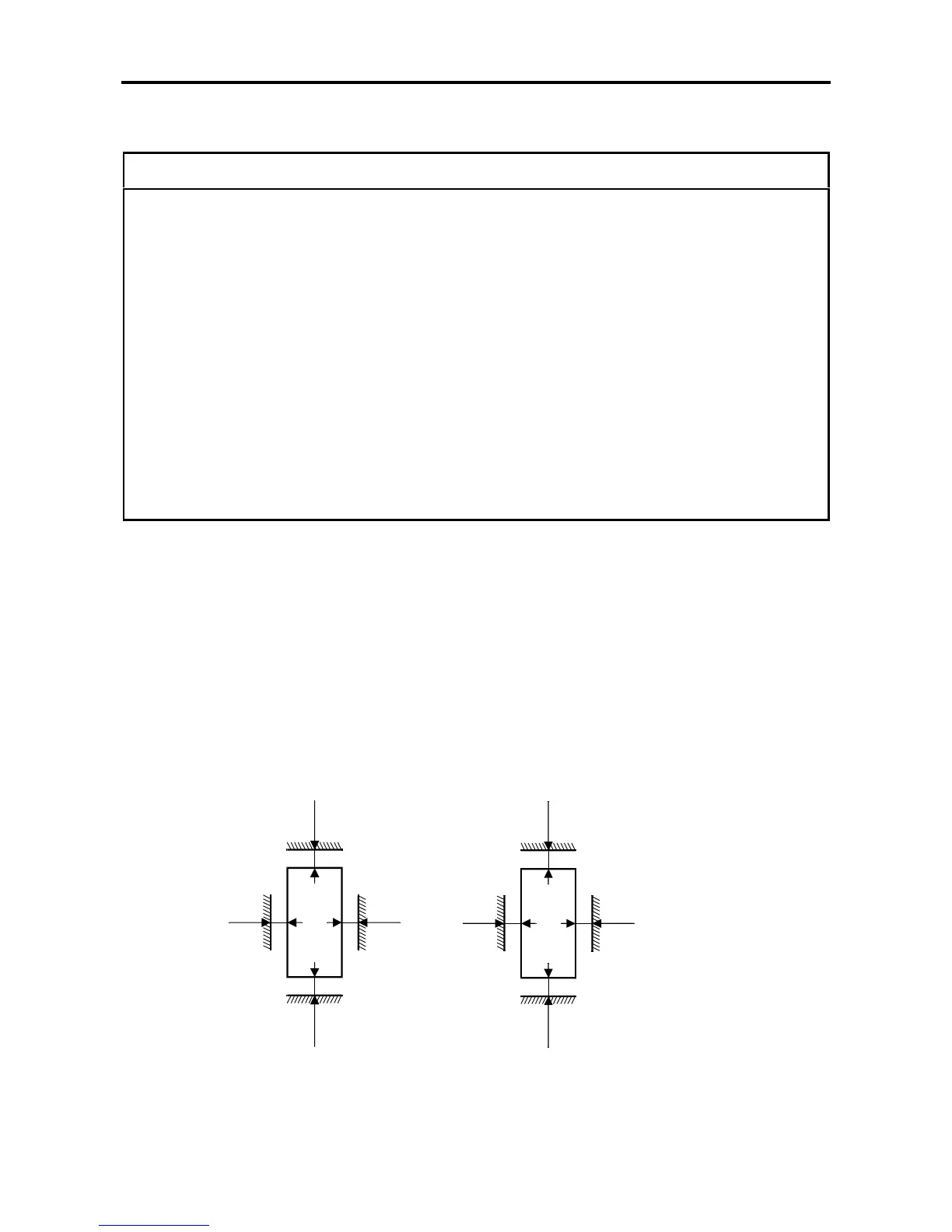

4) Ensure ventilation space around the inverter.
200 mm
50 mm
VAT2000
50 mm
150 mm
200 mm
50 mm
VAT2000
50 mm
200 mm
For N15K0, X18K5 and smaller For N18K5, X22K0 and larger
