6-5 Function explanation
A00-0
Local frequency setting
A00-2
Local speed setting
This is the frequency (or speed) setting used in the local mode (operation control from the
operation panel when it is enabled, -“LCL" LED ON-.
The output frequency (speed) changes immediately according to the
operation.
Refer to section 5-9-1 for details on selecting the speed setting.
A00-1
Frequency setting for jogging
A00-3
Speed setting for jogging
This is the frequency (speed) setting selected when executing jogging run through the
sequence command F JOG or R JOG.
An acceleration/deceleration time exclusive for jogging can be set with B10-2 and B10-3.
B10-2: Acceleration ramp time for jogging
B10-3: Deceleration ramp time for jogging

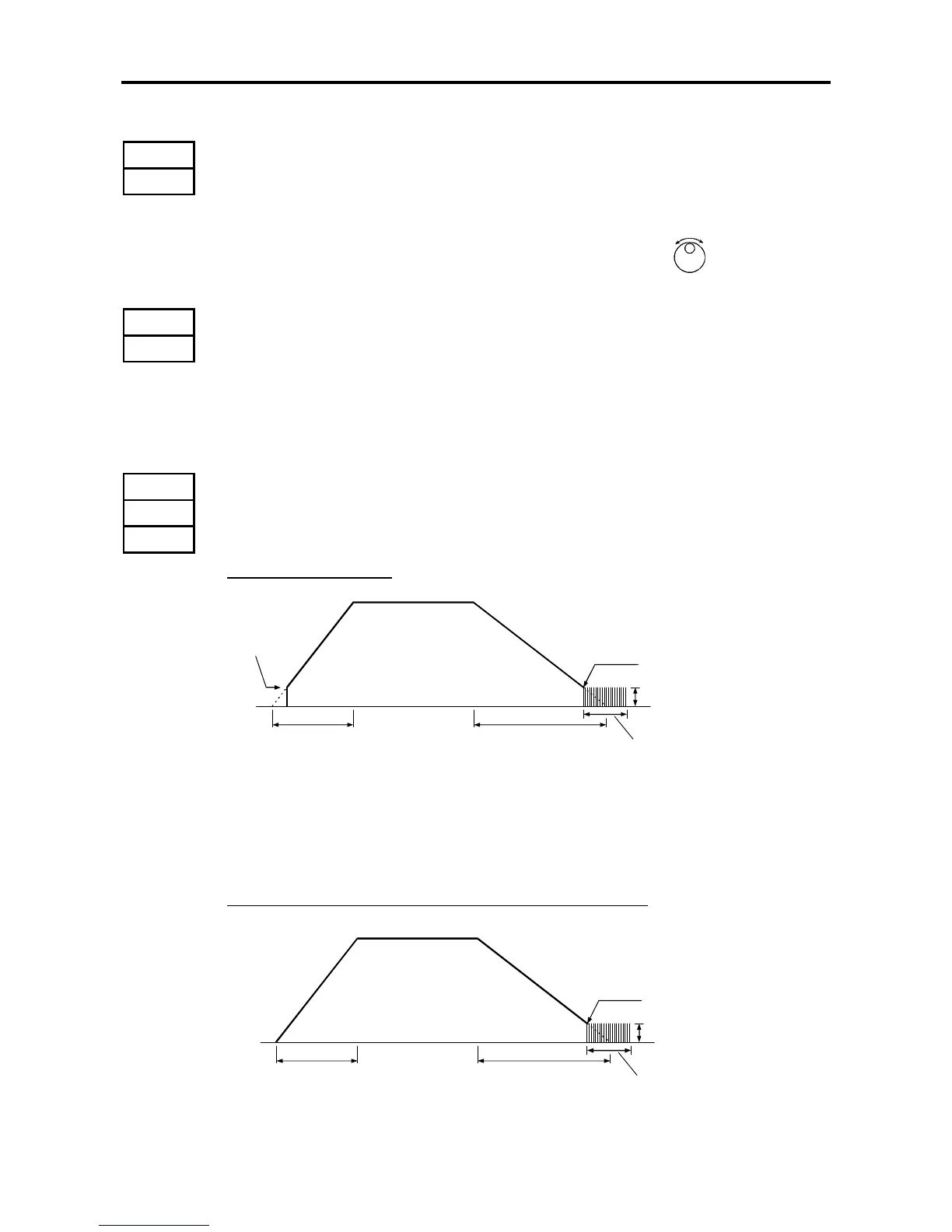

A01-0, 1
Acceleration/deceleration times
A03-0, 1
DC brake
C01-0, 1
Start/stop frequency
(V/f control: C30-0 = 1, 2)
B00-4: Max. Frequency
A01-0
Acceleration time
C01-0
Start frequency
A01-1
Deceleration time
A03-0
DC Braking voltage
A03-1
DC Braking time
C01-1
Stop frequency
This is the acceleration/deceleration ramp time validated during normal use (when sequence
command CSEL is OFF). The inverter may trip if the set time is too short.
Increase the DC braking voltage in units of 1% or less at a time while monitoring the output
current. The inverter may trip if the setting is too high.
(Note) The DC braking voltage is automatically adjusted by the Autotuning function
(IM Vector control: C30-0 = 3, 4), or (PM motor control: C30-0=5)
B01-4: Max. Speed
A01-0
Acceleration time
A01-1
Deceleration time
A03-2
DC Braking Current
A03-1
DC Braking time
C15-4
Zero speed detection level
