5. Control Input / Output
5-22

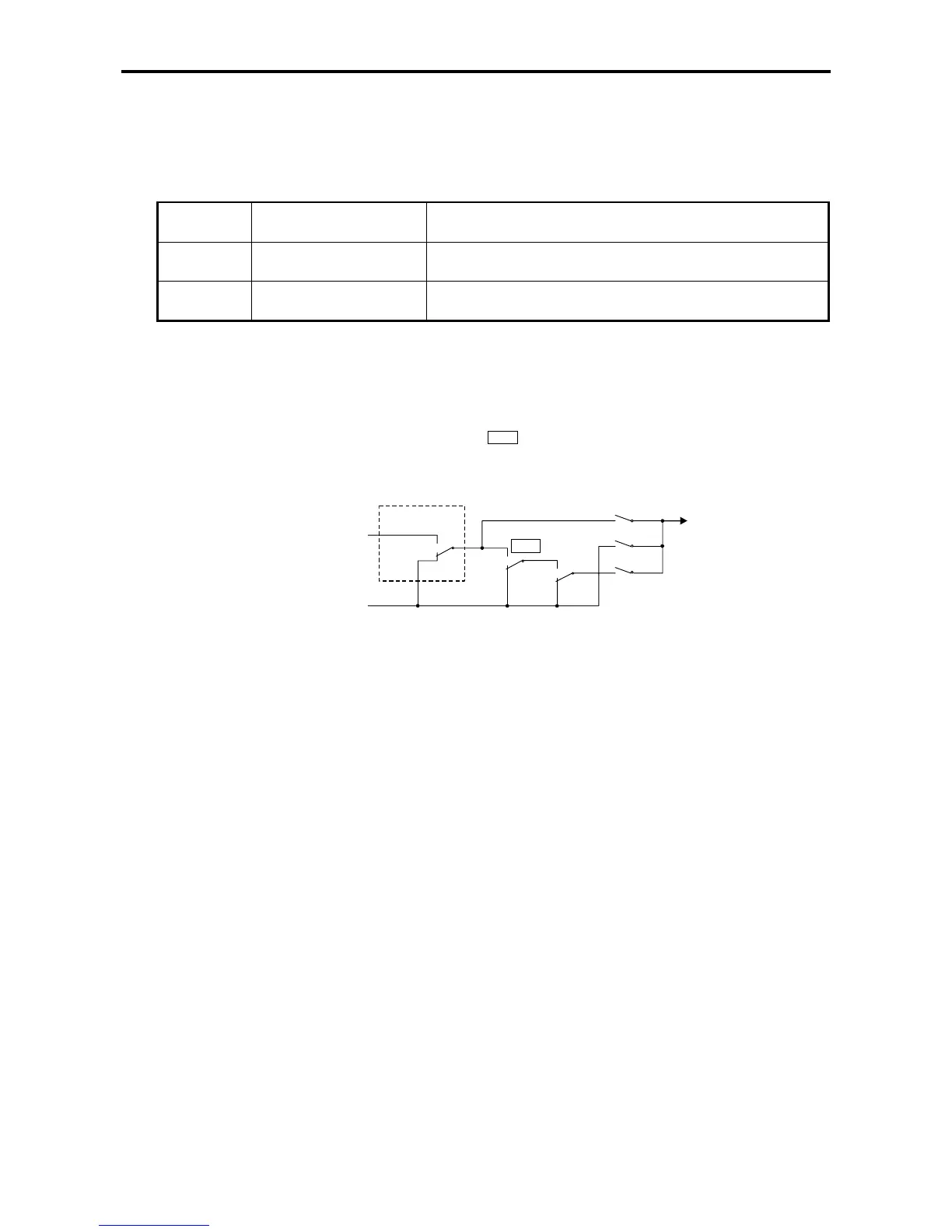

5-9-8 ASR response setting
(1) ASR response setting selection
The ASR need acknowledge of the response time required. This value can be set from either serial
communication or through the Operation panel.
Setting
input point
Setting data Explanation
Serial ASR response setting This is a setting value issued from the host computer with
serial transmission.
Panel
O. Panel ASR response
setting
This is a setting value issued from the parameter (A10-0).
(2) ASR response setting and changeover sequence
The interlock sequence for the ASR response setting is shown below.
ASR response
setting
Serial, ASR response
setting
1.000
O. Panel, ASR response
setting (A10-0)
on
on
off
off
Mounted
Not mounted
Option
CFS
LCL
=1
=2
=3
C02-7
:
:
XXX
XXX
Functions that can be controlled ON / OFF
from terminal board
Functions that can be controlled ON / OFF
By parameter setting only
Fig. 5-17 ASR response setting selection
