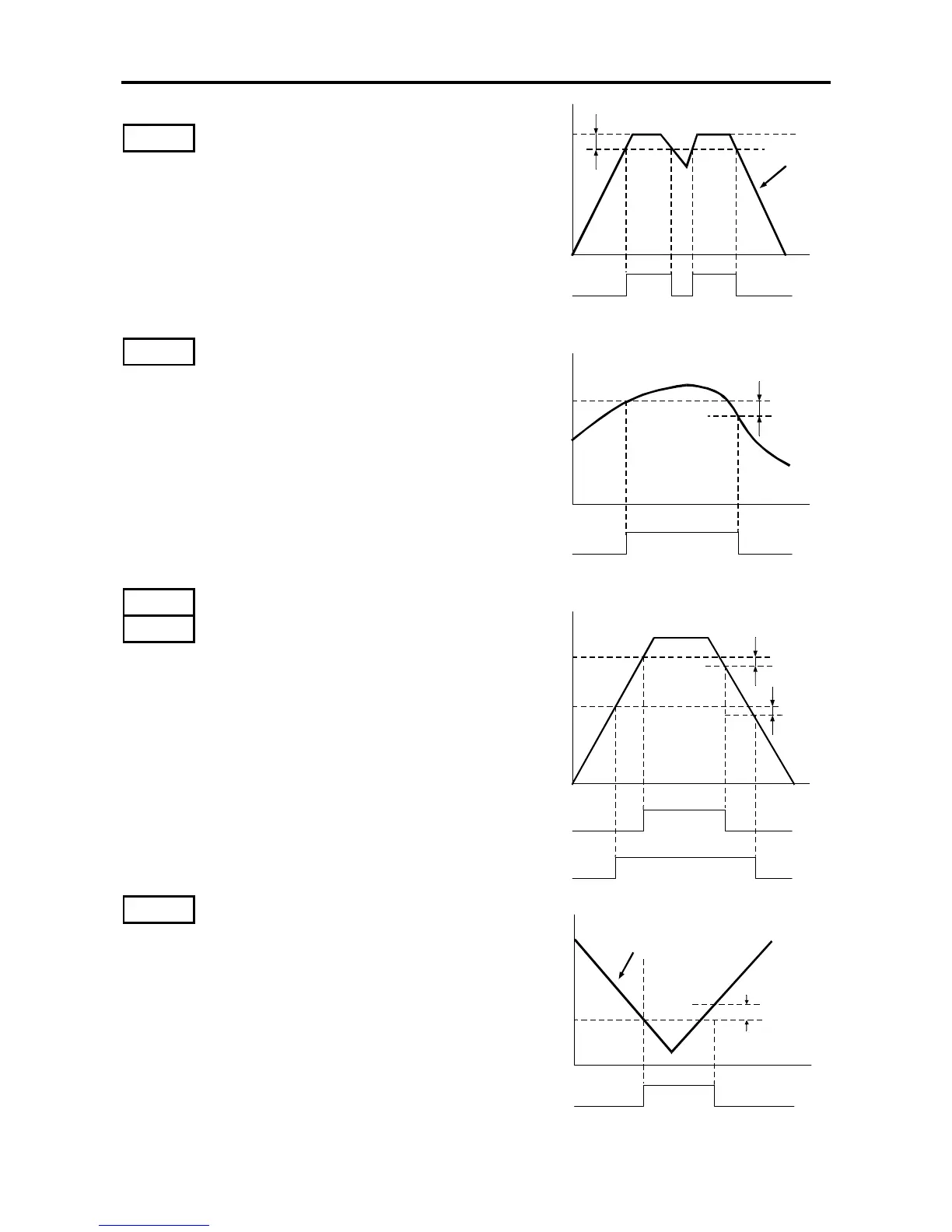

6. Control Functions and Parameter Settings
6-63
C15-0
Attainment (ATN) detection width
The attained output ATN operation width is
set.
C15-1
Current (IDET) detection level
The current detection (IDET) operation level
is set. Set with a percentage of the rated
current (B00-6, B01-6).
A 5% hysteresis is fixed for the IDET
operation.
C15-2
Speed detection (SPD 1) level
1
C15-3
Speed detection (SPD 2) level
2
The speed detection SPD 1 and 2 operation
level is set.
Set with a percentage to the max. frequency
(B00-4) or max. speed (B01-4).
The output frequency or the motor speed will
be the comparison target.
A 1% hysteresis is fixed for SPD1 and SPD2
operation.
C15-4
Zero speed detection (ZSP) level
The zero speed detection ZSP operation
level is set.
Set with a percentage to the max. frequency
(B00-4) or max. speed (B01-4).
The output frequency or the motor speed will
be the comparison target.
Output
frequency
C15-0
ATN
C15-1
C15-2
C15-3
SPD1
Time
SPD2
Output current
Output frequency
Setting frequency
Time
ON
1%
1%
IDET
5%
ON ON
Output frequency
(Motor Speed)
ZSP
C15-4
Time
ON
1%
