4. Operation Panel (Keypad)
4-19
4) The following is an example for changing the value of a Custom Parameter.

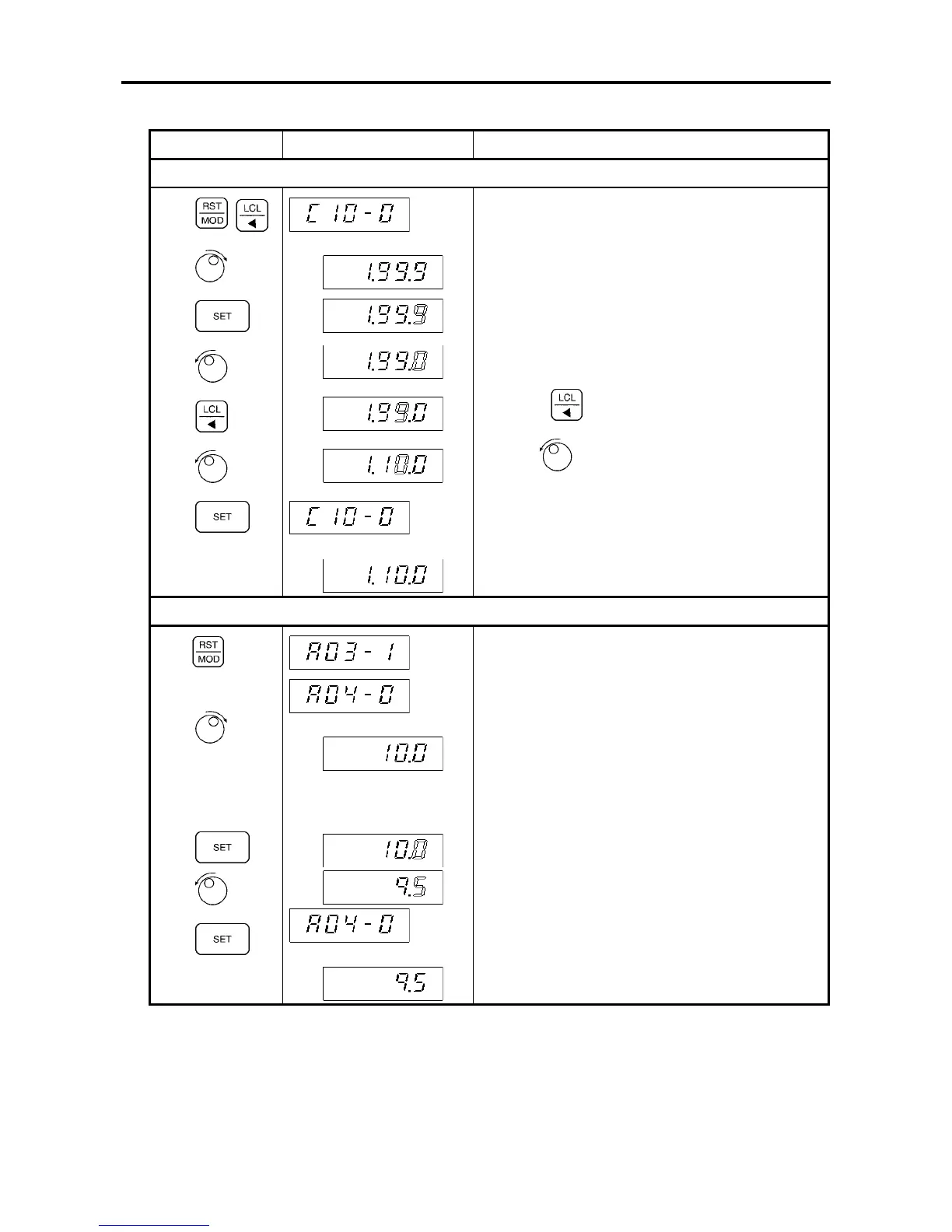

Keys Display Explanation
Register parameter B10-0 on Parameter C10-0 (Custom Setting).
(1)
(2)
(3)
(4)
(5)
(6)
↓ ↑
↓ ↑
(Mode and Parameter Number Change to C10-0)
The display shows Parameter C10-0.
The value 1.99.9 indicates that no Parameter has
been registered on Parameter C10-0.
Select Parameter Number C10-0.
Set the sub-number of B10-0 to "0".
Each time
is pressed, the flickering digit will
move to the digit to be changed.
Turn the
knob key until the high-order digit
reaches the block No. 10.
Selection of the parameter No. C10-0 is completed.
Note)
For parameter C, set as 2.xx.x.
Change parameter B10-0 which has been assigned to A04-0.
(7)
3 times
(8)
(9)
(10)
(11)
↓ ↑
↓ ↑
Enter the Block-A Parameter Setting Mode.
The Custom Parameter Number A04-0 will display.
The display will alternate between Parameter
number A04-0 and the value of Parameter number
B10-0 (Acceleration time 2).
Parameter Number A04-0 is the same value as that
of Parameter Number B10-0.
Parameter B10-0 can be changed now from
parameter A04-0.
Change the value as required.
Store the new value.
Note 1)
If the Parameters C10-n values are either 1.99.9 or any other undefined values, Parameters
A04-n will be skipped during Parameter scan.
Note 2)
If all the C10 Parameters are set at 1.99.9. all the A04 Parameter block will be skipped during
Parameter scan.
