GE Xcellerex XDM Series User Manual

Transmitter Offsets screen
The Transmitter Offsets screen is opened by tapping OFFSETS on the Temperature
Detail screen. The Transmitter Offsets screen is used for calibration of temperature
probes.
The temperature probe contains two sensors. The data from both sensors is displayed
on the Transmitter Offsets screen. The currently selected sensor is shown in black.

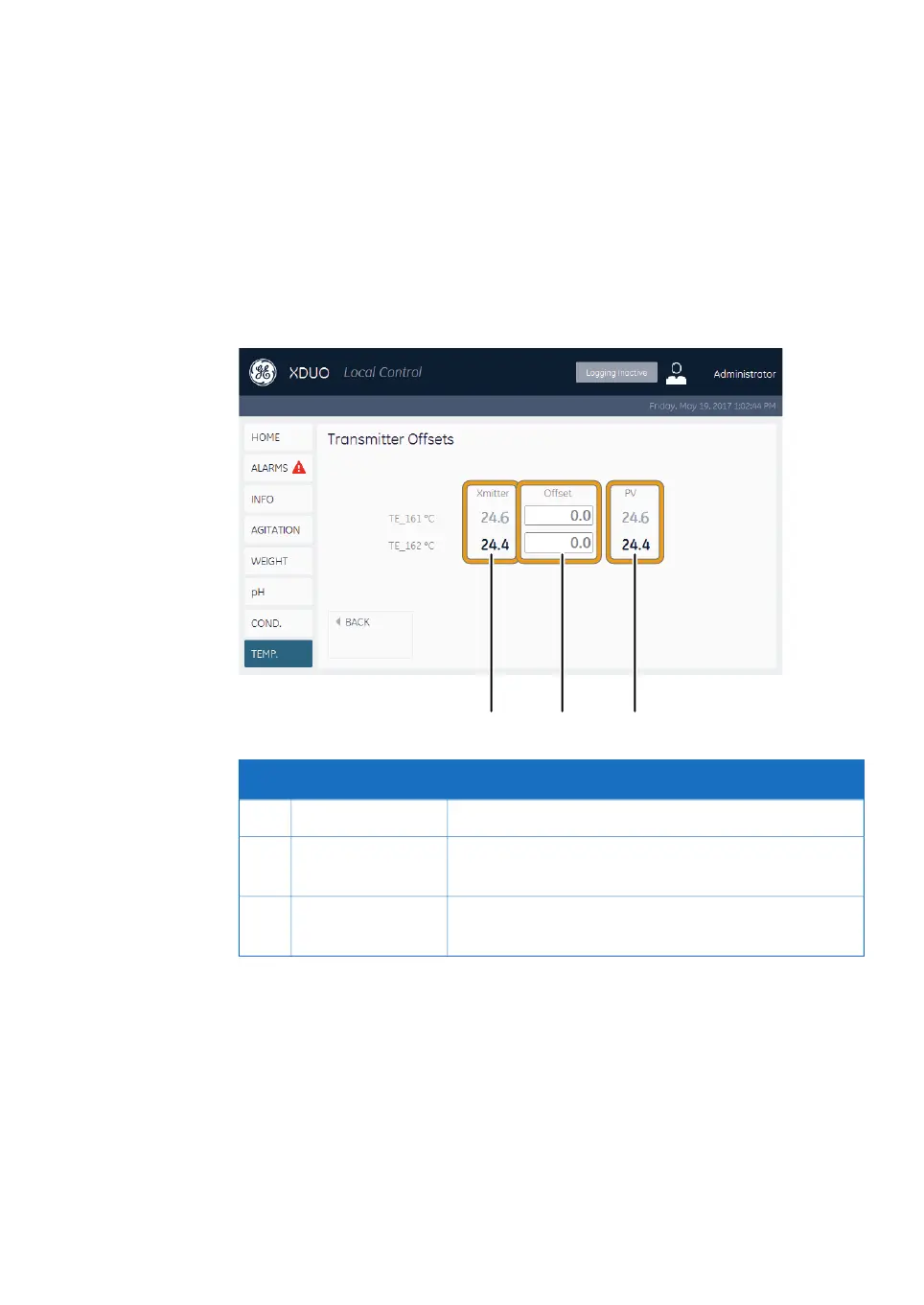

The following illustration shows an example of the Transmitter Offsets screen.
1 2 3
FunctionDescriptionPart
Displays of the actual process variable (PV) value.Xmitter1
Parameter offset values (positive or negative), text boxes
for input.
Offset2
Displays of process variable (PV) values after offset ad-
justment.
PV3
Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD 111
4 User interface
4.4 Detail screens
4.4.5 Temperature screens
