GE Xcellerex XDM Series User Manual

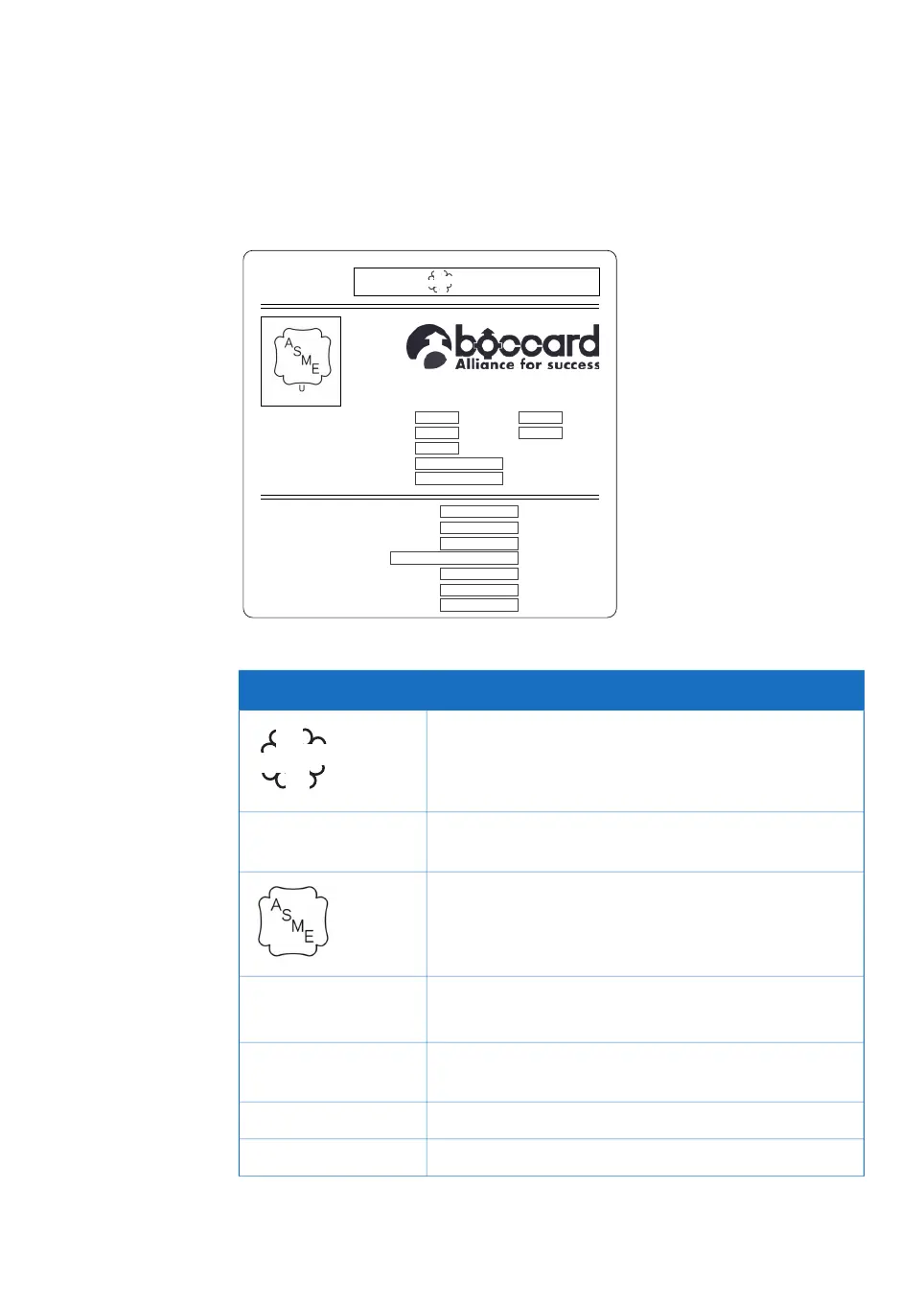

ASME label
The label shown below is an example. Actual data printed on the label is specific for each
individual system and may vary from system to system.
N.B. #
Certified by
4 Boulevard Charles de Gaulle - BP 12
42120 LE COTEAU Cedex - FRANCE
Tél: (33) 04.77.67.39.55 - Fax: (33) 04.77.72.27.87
U
W
JACKET
MAWP
MDMT
YEAR BUILT
SERIAL #
CRN #
FLUID
FLUID GROUP
PED 2014.68.UE
CODE
VOLUME
MATERIAL
MODEL
6.9 BARG AT 66 C°
-30 C° A
T 6.9 BARG
2017
PH399-05
WATER
LIQUID 2
ARTICLE 4.3
ASME VIII div1 Ed. 2015
10.5 L
1.4307 / 304L
29241073
N
B
The ASME label information is explained below.
MeaningLabel text/symbol
Symbol of the National Board of Boiler and Pressure Vessel
Inspectors.
N
B
Registration number identifying the ASME BPVI inspection
stamp.
N.B.#
American Society of Mechanical Engineers Boiler and
Pressure Vessels Code stamp symbol.
The welded (W) product is manufactured according to ASME
BPVC Division 1 (U).
U
W
Information stating the name of the ASME BPVI inspection
company.
Certified by
The vessel is jacketed.JACKET
Maximum allowed working pressure for the vessel.MAWP
Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD 31
2 Safety instructions
2.2 Labels
