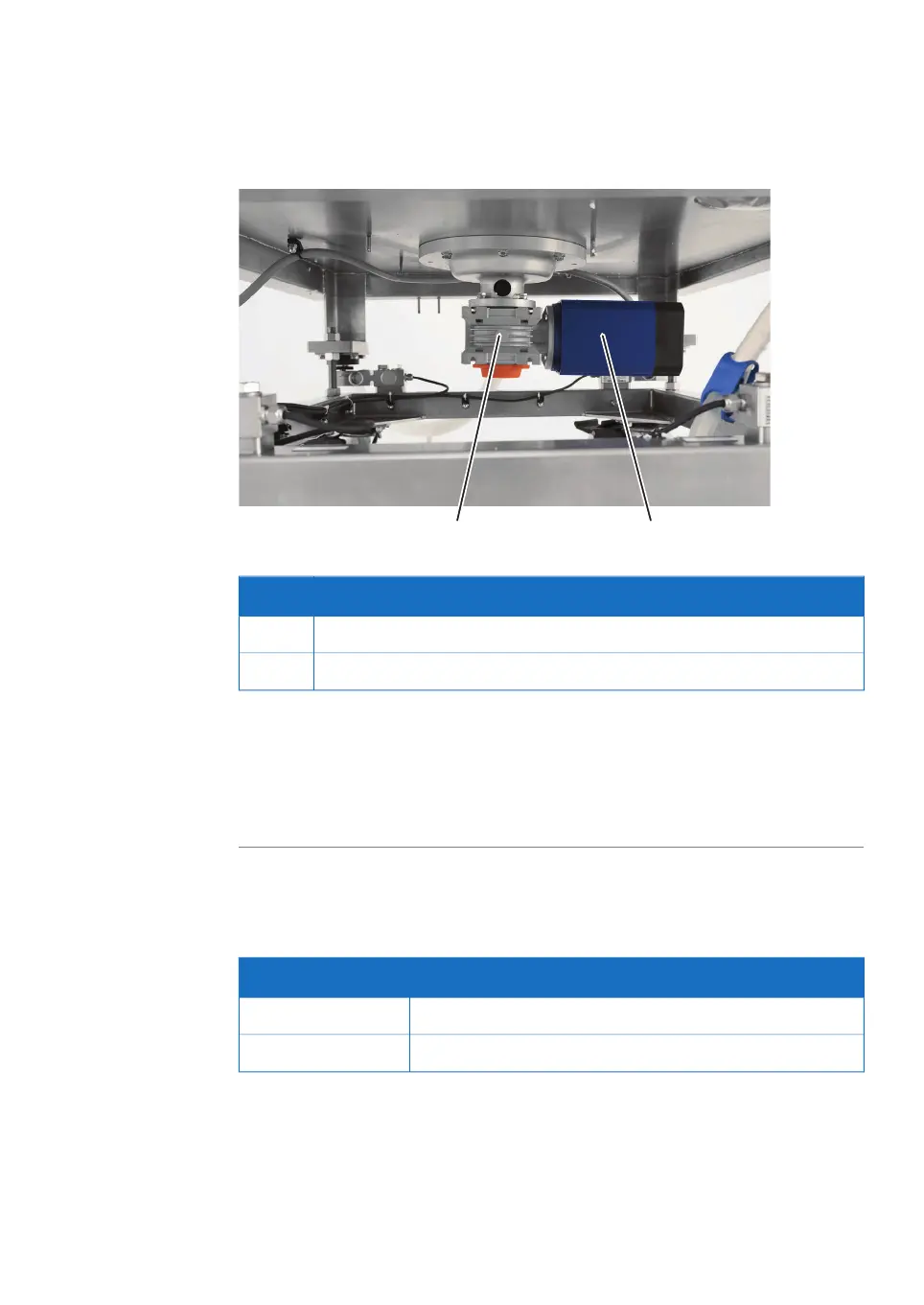

The following illustration shows the agitator motor and drive head.
FunctionPart
Agitator drive head1
Agitator motor2
Agitation performance
The agitator motor operates continuously between 10 to 200 rpm. A frequency inverter
is used to change the motor speed.
Agitation direction
The agitator can rotate clockwise or counterclockwise.
DescriptionAgitator direction
Fluid rotates downwardsClockwise
Fluid rotates upwardsCounterclockwise
Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD 67
3 System description
3.4 Mixer vessel components
3.4.2 Agitator
