GE Xcellerex XDM Series User Manual

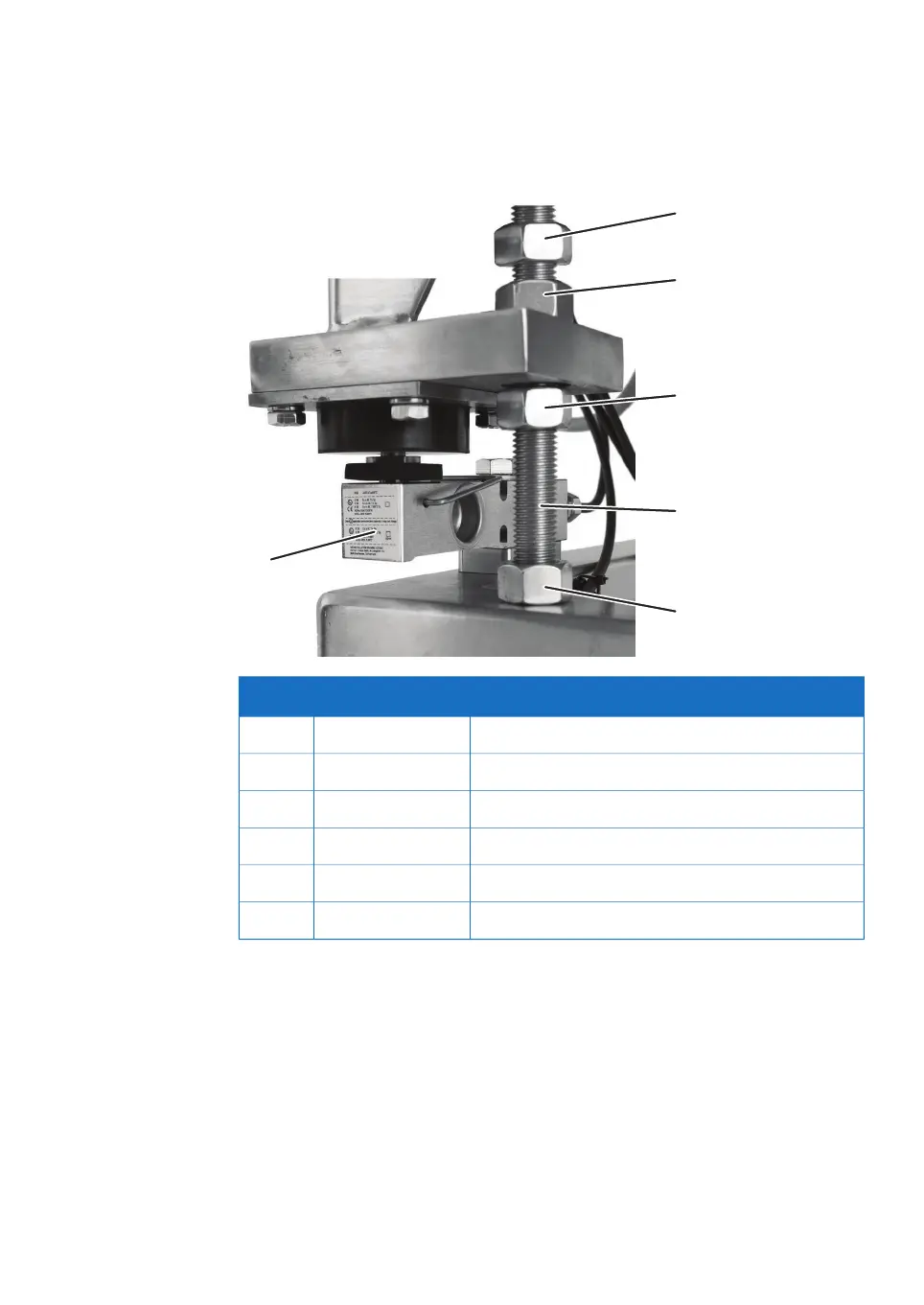

Illustration of a load cell
1
3
4
5
6
2
FunctionDescriptionPart
Secures the engaged jacking boltSecuring nut1
Fastens the vessel frame to the jacking boltTop nut2
Lifts the vessel off the load cellBottom nut3
Takes the load off from the load cellJacking bolt4
Locks the bolt inserted into the mixer frameBolt locking nut5
Measures the vessel weightLoad cell6
Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD 69
3 System description
3.4 Mixer vessel components
3.4.3 Load cells
