FunctionPart
3″ powder addition port, capped1
Liquid addition line i.d. ½″, with clamp, female MPX connector, plugged
1
2
Sample line i.d. ⅛″, with clamp, Luer™ lock connector3
Temperature probe port4
Probe ports, female Kleenpak™ connector5
Liquid addition line i.d. ¾″, with clamp, plugged6
Liquid addition lines i.d. ⅛″, Luer lock connector
2
7
Impeller baseplate with impeller assembly8
Drain line, with clamp, plugged9
1
This addition line can be used for final adjustment of liquid volume in the disposable bag.
2
The line is designated for addition of acid or base solutions.

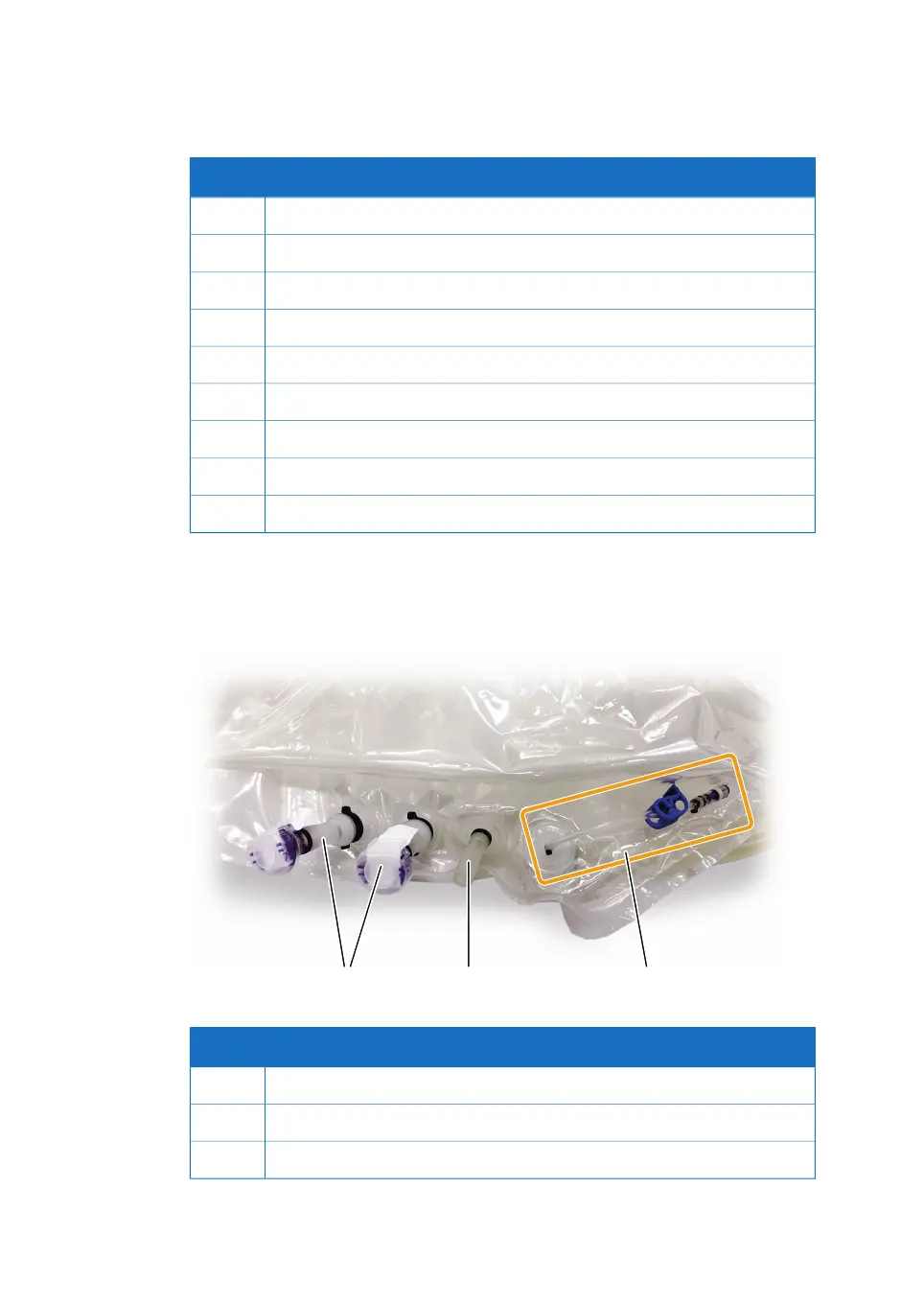

The following illustration shows a detailed view of the probe ports of the Plus Flex and
Plus bag.
FunctionPart
Probe ports, female Kleenpak connector1
Temperature probe port2
Sample line, i.d. ⅛″, with clamp, Luer lock connector3
78 Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD
3 System description
3.8 Disposable components
3.8.1 Disposable bag assembly
