FunctionPart
Liquid addition line i.d. ¾″, with clamp, plugged1
3″ powder addition port, capped2
Liquid addition line i.d. ½″, with clamp, female MPX connector, plugged
1
3
Liquid addition line i.d. ⅛″, Luer lock connector
2
4
Probe ports, female Kleenpak™ connector5
Temperature probe port6
Sample line i.d. ⅛″, with clamp, Luer lock connector7
Drain line, with clamp, plugged8
Impeller baseplate with impeller assembly9
1
This addition line can be used for final adjustment of liquid volume in the disposable bag.
2
The line is designated for addition of acid and base solutions.
See Illustrations of the Plus Flex bag assembly, on page 77 for the detailed view of the
probe ports.
Illustrations of the Basic bag
assembly

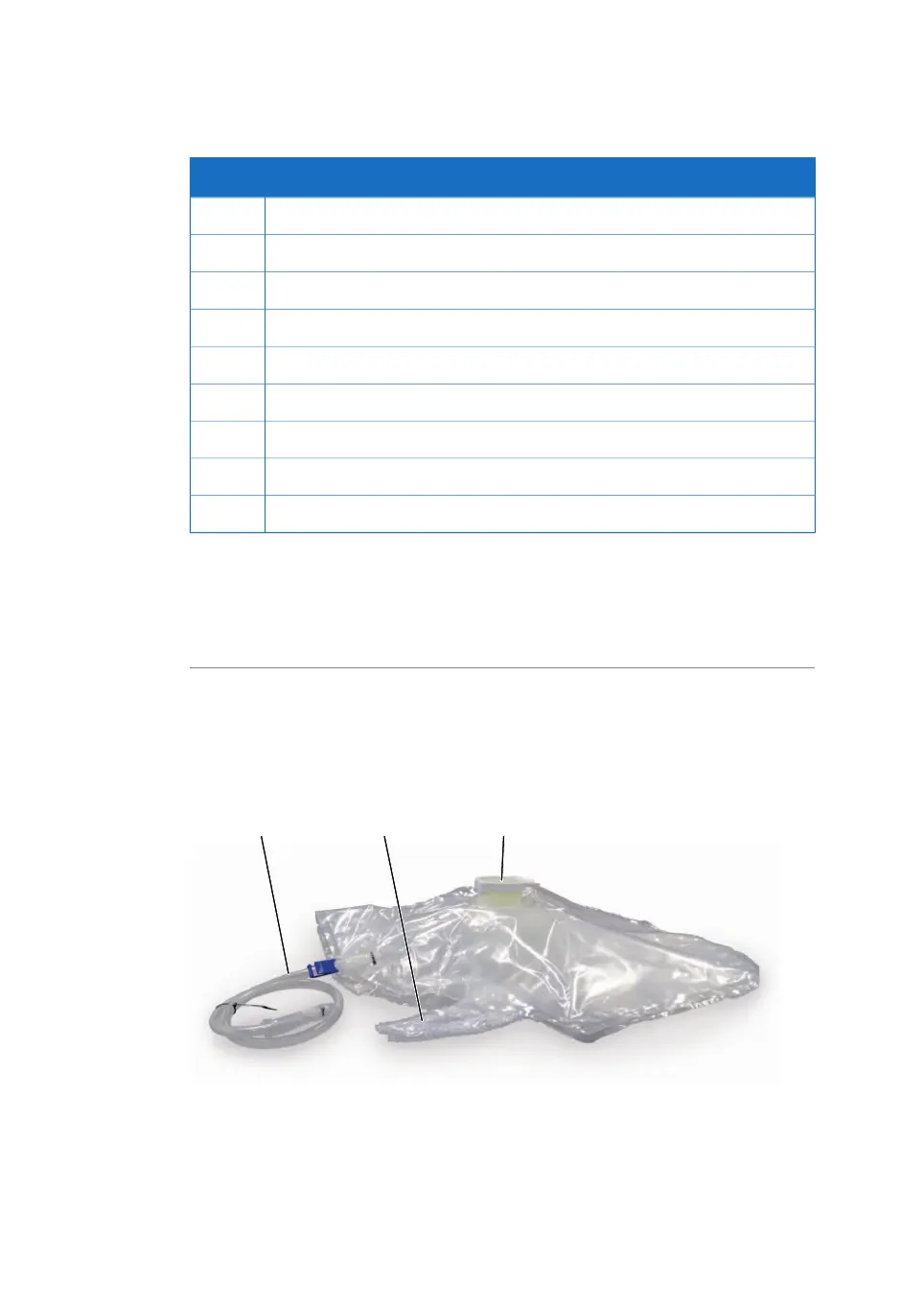

The following illustration shows the top of the Basic bag.
80 Xcellerex XDM 50-1000, XDUO 100-1000 mixers Operating Instructions 29251615 AD
3 System description
3.8 Disposable components
3.8.1 Disposable bag assembly
