FunctionDescriptionPart
Displays the pH value of the disposable bag contents.
The active control mode (Manual or Auto) is shown
at the top of the display. See pH Detail screen, on
page 103.
pH
1
12
Shows Agitator, Min Weight and Max Weight inter-
lock status:
Interlocks13
•
Gray - not active
•
Orange - active
See Section 2.4 Xcellerex XDUO mixer interlocks, on
page 43.
1
Tapping the display opens the detail screen for the corresponding process variable.
Process variable display
The numeric fields on the process variable display show the current values of process
variables. Tapping the display opens the detail screen for the relevant process variable.
The detail screen can also be opened by clicking a button on the left-hand side of the
screens, see the illustration of the home screen in Home screen, on page 85 for more
information.

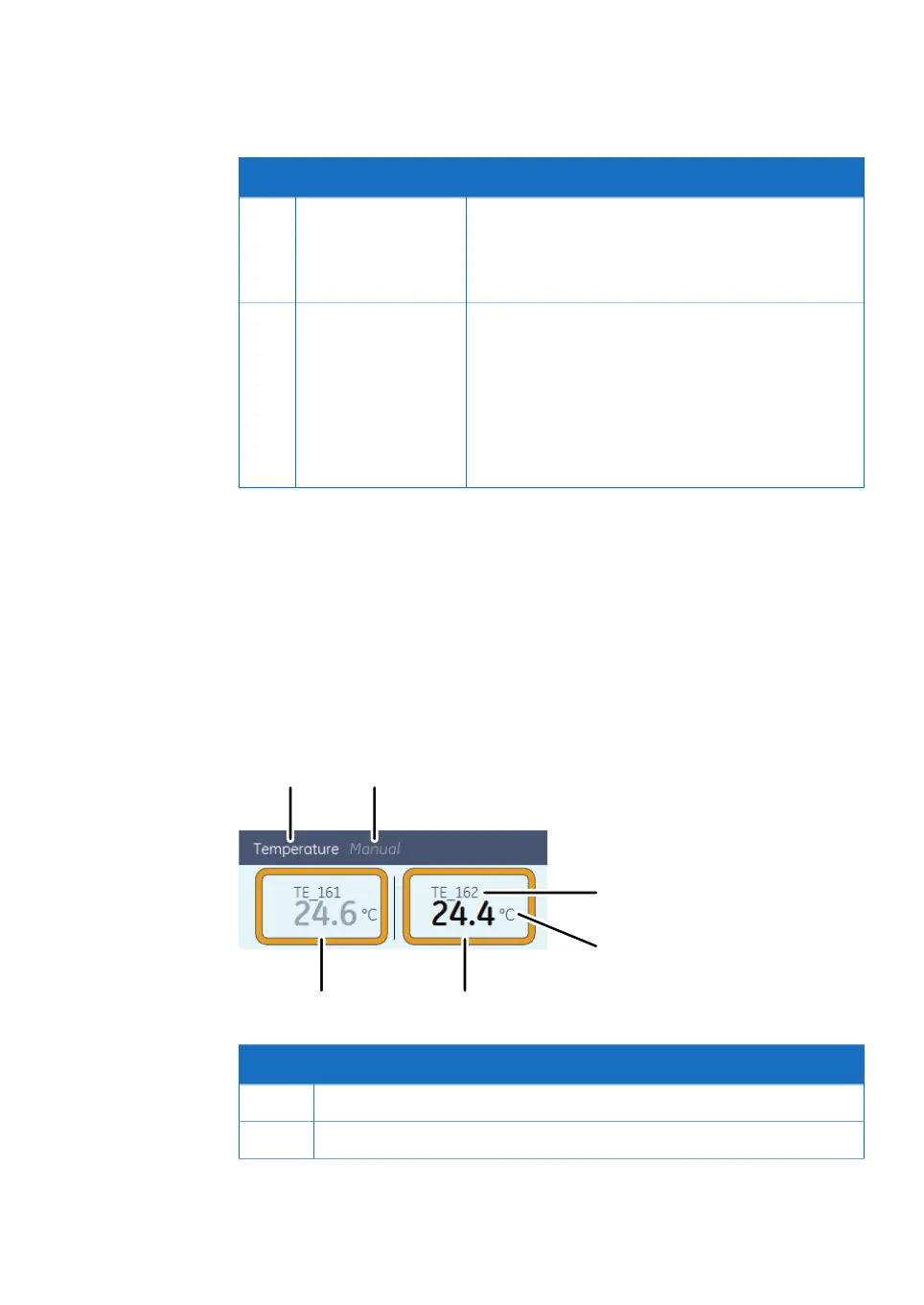

The following illustration shows an example of a process variable display.
1 2
3
4
5
6
FunctionPart
Parameter name1
Active control mode2
