Gecko in.xe User Manual

in.xe TechBook
13
In.link output connectors:
High-Current - HC connectors:
Output Typical Device
Out 1 Pump 1
Out 2 Pump 2*
Low-Current - LC connectors (relay controlled):
Output Typical Device
Out 3 Blower*
Out 4 Ozonator
Out 5 Audio/video (direct to line)
Low-Voltage - LV connectors:
Output Typical Device
C Main keypad
CO Comm. Connector (in.stik, in.watch)
L1 Light
Female connector on spa pack
LCHC
6
5
4
3
2
1
6
5
4
3
2
1
* Pump 2
connector
Pump 1
connector
* Blower
connector
Ozonator
connector
Direct
connector
Keypad
connector
Communication
connector
Light
connector

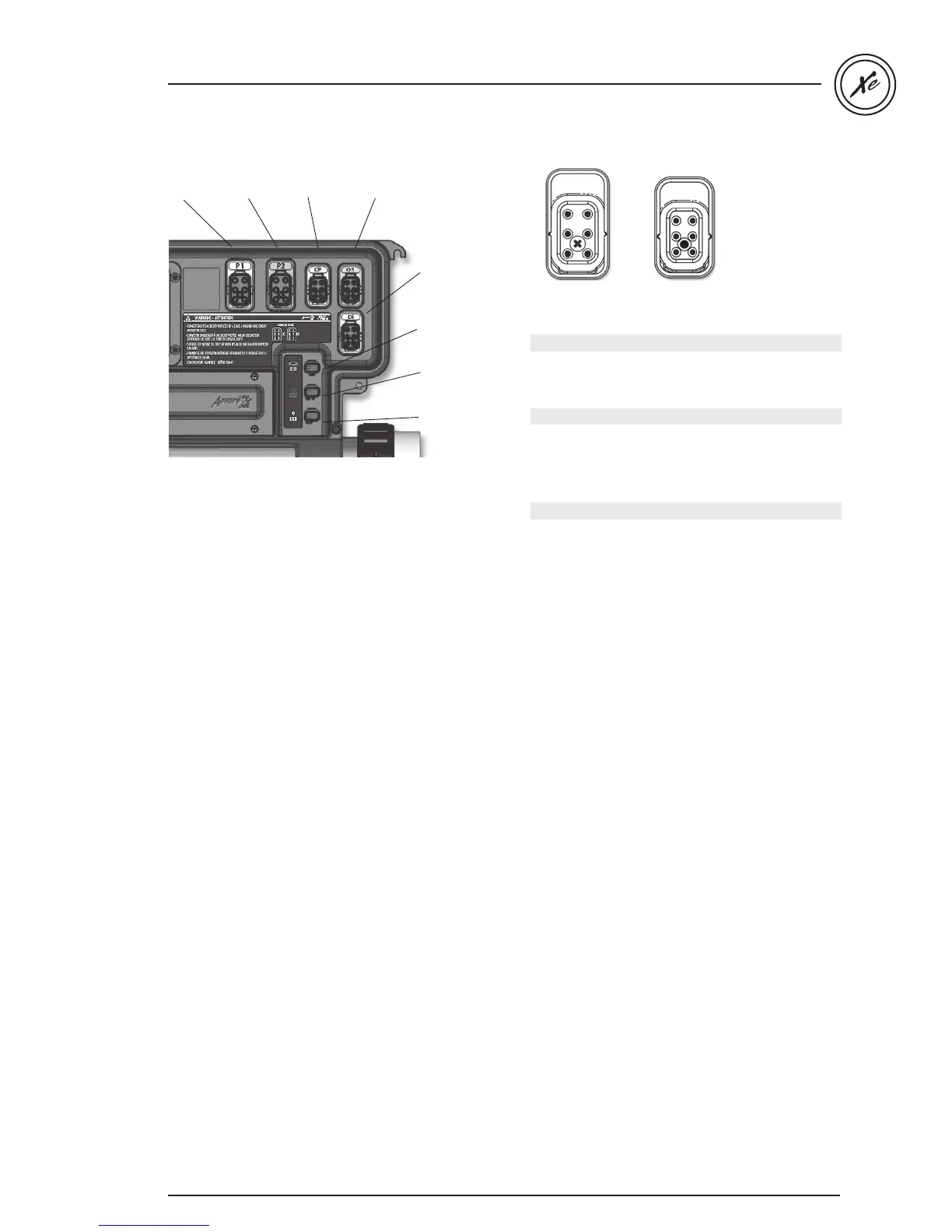

Connector map
* Only available on IN.XE-5. IN.XE-3 has pump 1, ozonator
and direct connectors.

Gecko in.xe Specifications

General

Blower Output	1
Ozone Output	1
Light Output	1
Dimensions	Varies by model
Weight	Varies by model
Warranty	Varies by manufacturer
Power Supply	240V
Keypad Compatibility	in.k200, in.k300, in.k35, in.k4, in.k450, in.k500, in.k600, in.800 Auxiliary Keypads: in.k100
