Shenzhen Getech Technology Co.,Ltd
12

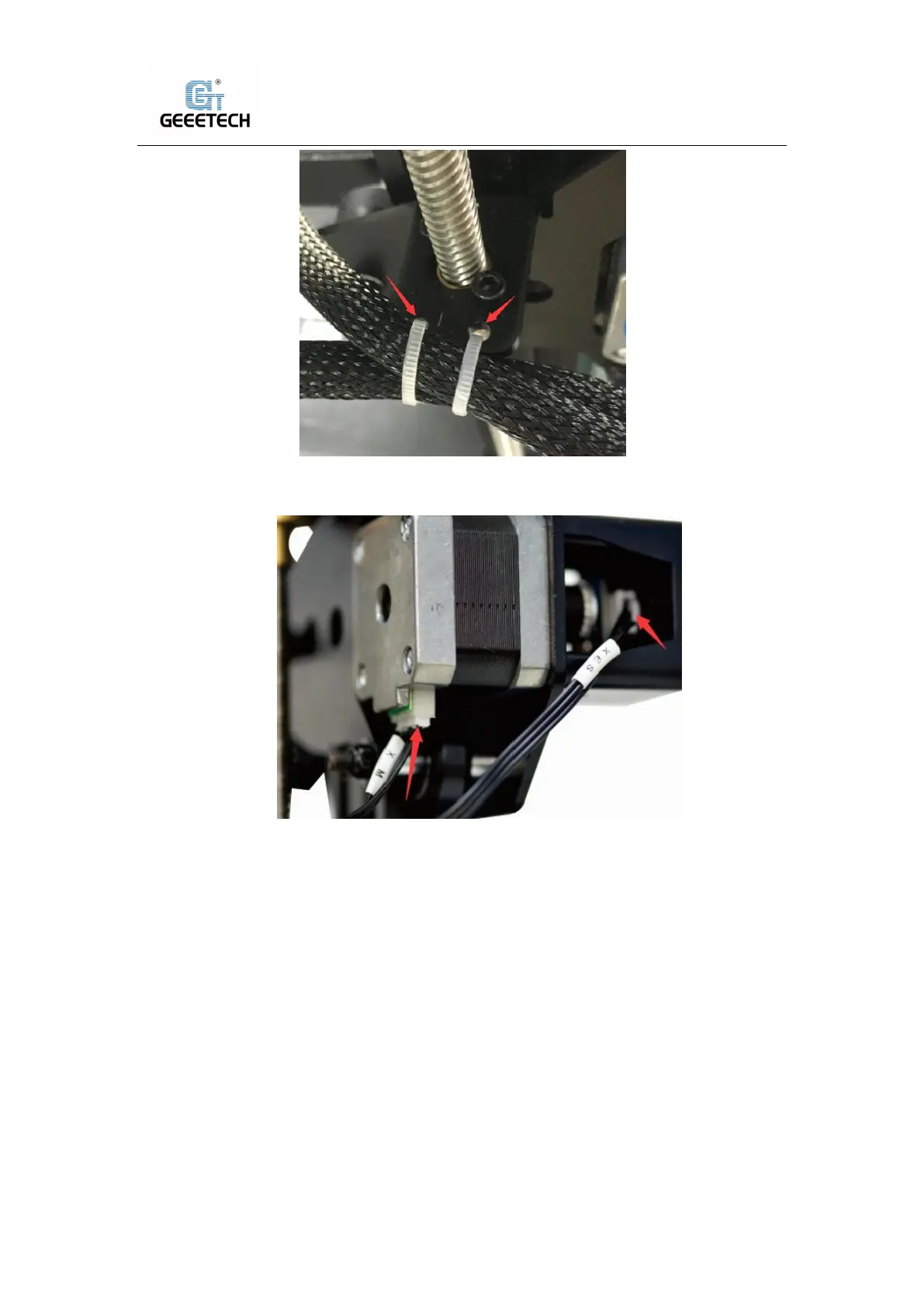

(Picture 5-12)
Connect the X-axis motor and the X-axis limit switch wire. See picture (5-13).
(Picture 5-13)
Connect the Y-axis motor and the Y-axis limit switch wire. See picture (5-14).
