70 ADV200 • Functions description and parameters list

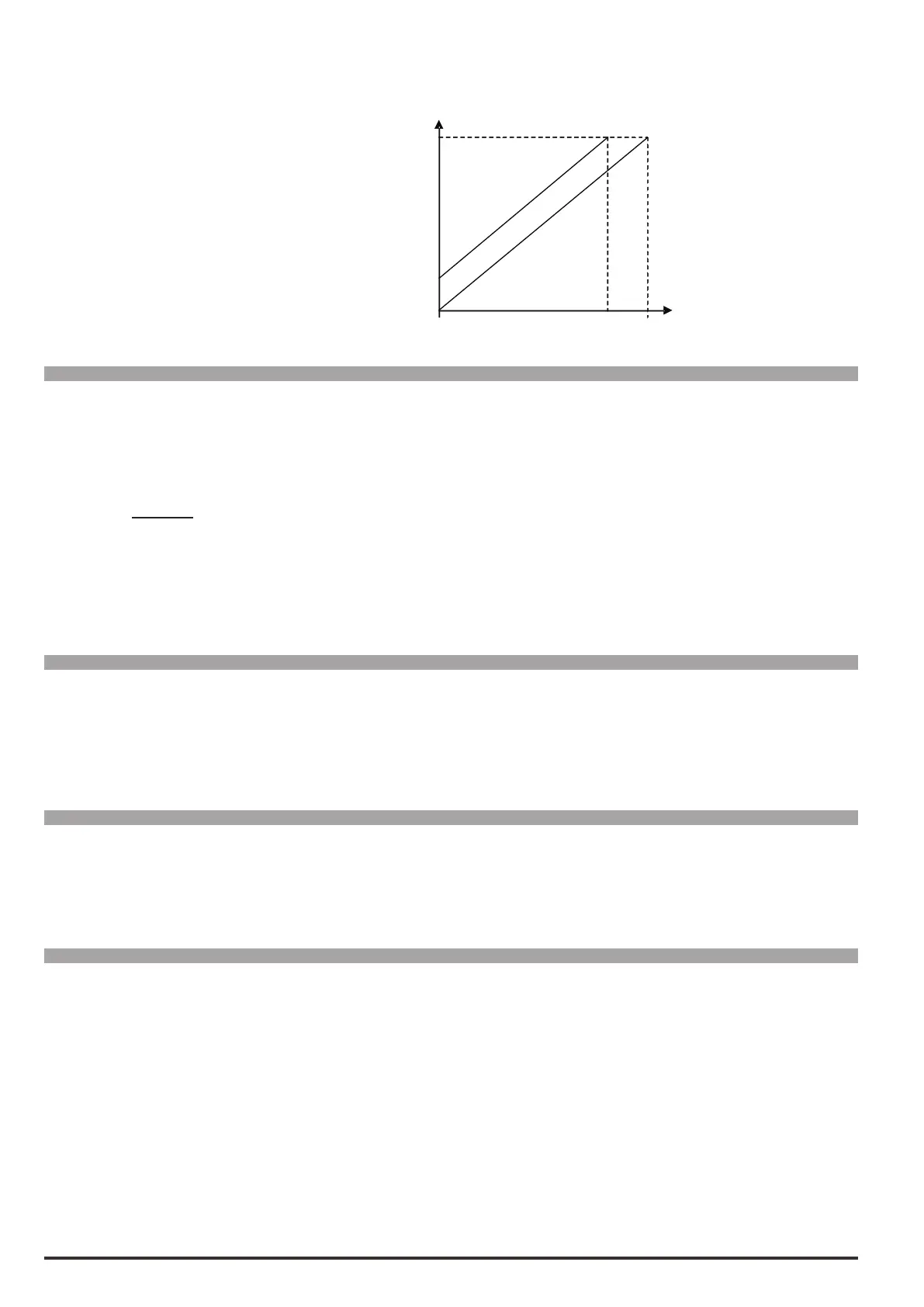

Setting of an offset value to algebrically add to the relative analog input of the expansion card.
0
10V
100%
Analog
inp xX offset
{
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.42 1618 Analog inp 1X gain FLOAT 1.0 -20.0 20.0 ERW FVS
14.54 1668 Analog inp 2X gain FLOAT 1.0 -20.0 20.0 ERW FVS
This parameter contains the value of the multiplier factor to apply to the analog reference of the expansion card
calculated using the Analog inp gain tune function.
Example:
An external analog reference only reaches a maximum of 9.8V instead of 10V. 1.020 (10V : 9.8V) is entered as
the Analog inp x gain parameter.
The same result can be achieved using the Analog inp x gain tune function. This parameter can be selected
from the keypad menu. The maximum analog value available (in this case 9.8V) must be present on the termi-
nal, with positive polarity. Press the Enter key on the keypad to start analog reference self-tuning.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.43 1626 An inp 1X sign src LINK 16 6000 0 16384 ERW FVS
14.55 1676 An inp 2X sign src LINK 16 6000 0 16384 ERW FVS
Selection of the origin (source) of the signal to be assigned to the relative digital input of the expansion card for
selecting the direction of rotation of the motor. The functions that can be associated with the digital outputs are
listed in the “L_DIGSEL2” selection list.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.44 1632 Analog inp 1X dest ILINK 0 0 0 ER FVS
14.56 1682 Analog inp 2X dest ILINK 0 0 0 ER FVS
The function for which the relative analog input of the expansion card has been programmed and on which it
acts is displayed.
Menu PAR Description UM Type FB BIT Def Min Max Acc Mod
14.57 5410 Analog inp 0Ext mon INT16 16 0 -32768 32767 ER FVS
14.58 5412 Analog inp 1Ext mon INT16 16 0 -32768 32767 ER FVS
14.59 5414 Analog inp 2Ext mon INT16 16 0 -32768 32767 ER FVS
14.60 5416 Analog inp 3Ext mon INT16 16 0 -32768 32767 ER FVS
14.61 5418 Analog inp 4Ext mon INT16 16 0 -32768 32767 ER FVS
14.62 5420 Analog inp 5Ext mon INT16 16 0 -32768 32767 ER FVS
14.63 5422 Analog inp 6Ext mon INT16 16 0 -32768 32767 ER FVS
14.64 5424 Analog inp 7Ext mon INT16 16 0 -32768 32767 ER FVS
These parameters show the value of the analog input of the I/O remotable module ( EXP-FL-XCAN-ADV ex-
pansion board is needed).
