VDL200 • Quick installation guide - Specifications and connection 17

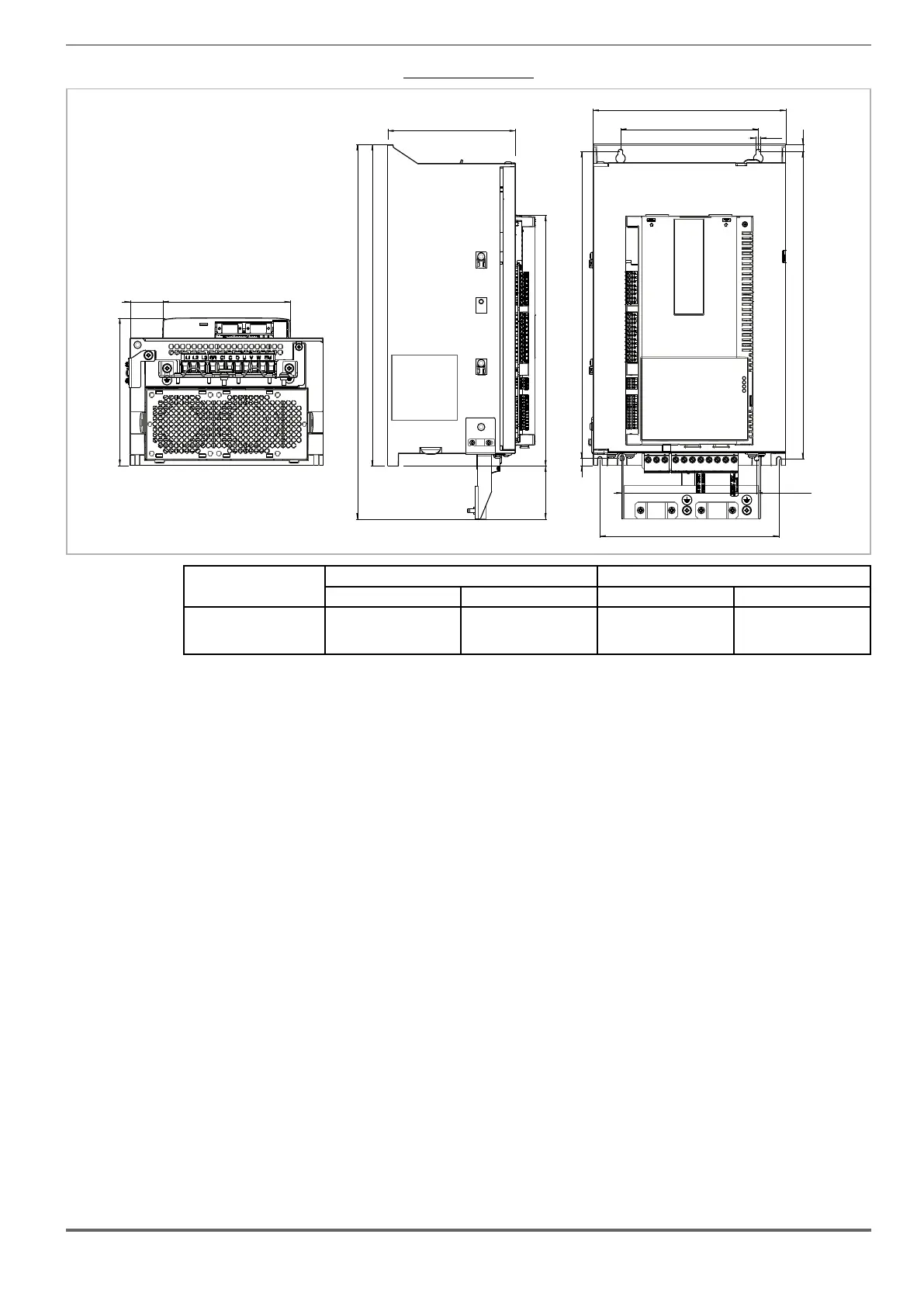

Figure 4.9.3: Size 3 dimensions
168
235
5.5
9
374.7
392
156
180
218.3
164
9 374
306 64.5
40 156
456.5
Sizes
Dimensions: Width x Height x Depth Weight
(mm) (inches) (kg) (lbs)
VDL200-3150-...-4
VDL200-3185-...-4
VDL200-3220-...-4
235 x 456.5 x 180 9,25 x 17.97 x 7.08 10.5 23.15
