46 VDL200 • Quick installation guide - Specifications and connection
Step 1 - Electrical connections
Make the connections as described in paragraph 7.3.2.
Checks to be performed before powering the drive
• Check that the supply voltage is correct and that the input terminals on the drive (L1, L2 and L3) are connected
correctly.
• Check that the output terminals on the drive (U, V and W) are connected to the motor correctly.
• Check that all the drive control circuit terminals are connected correctly. Check that all control inputs are open.
Powering the drive
• After completing all the checks described above, power the drive and proceed to step 2.

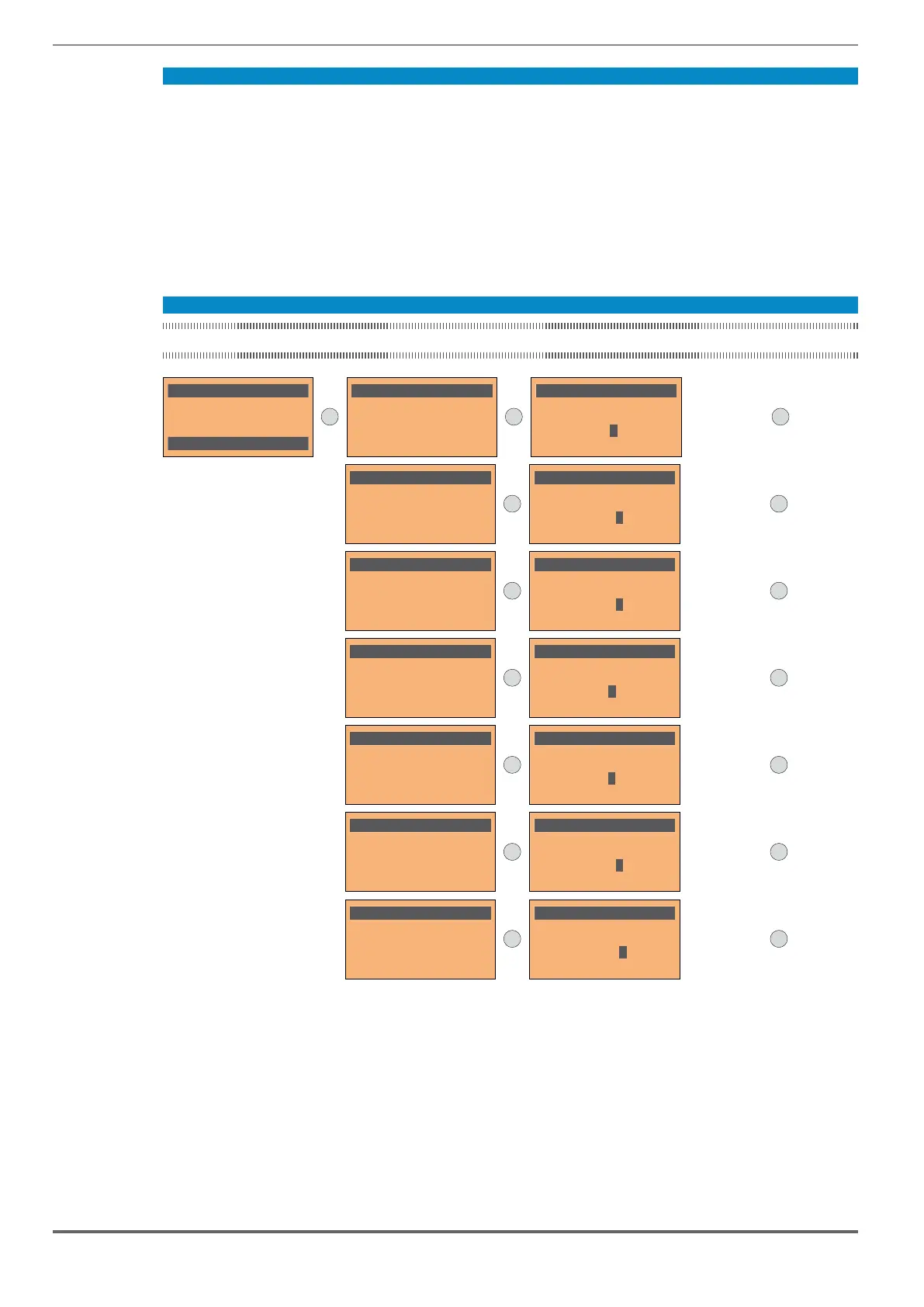

Step 2 - Setting motor parameters
Note! Def: The factory (default) setting depends on the size of the drive that is connected. These values refer to the VDL200-1055.
03 STARTUP WIZARD
Set motor data?
E=Yes Down=Next
E
SEQ
01 PAR: 2000
Rated voltage
400 V
Def: 400
E
SEQ
01 PAR: 2000
Rated voltage
0000004000 v
Def: 400
401 V
399 V
E
SEQ
02 PAR: 2002
Rated current
11.8 A
Def: 11.8
E
SEQ
02 PAR: 2002
Rated current
00000011.88 A
Def: 11.8
11.9 A
11.7 A
E
SEQ
03 PAR: 2004
Rated speed
1450 r
p
m
Def: 1450
E
SEQ
03 PAR: 2004
Rated speed
00000014500 r
p
m
Def: 1450
1451 rpm
1449 rpm
E
SEQ
04 PAR: 2006
Rated frequency
50 Hz
Def: 50
E
SEQ
04 PAR: 2006
Rated frequency
0000000500 Hz
Def: 50
51 Hz
49 Hz
E
SEQ
05 PAR: 2008
Pole pairs
2
Def: 2
E
SEQ
05 PAR: 2008
Pole pairs
22
Def: 2
3
1
E
SEQ
06 PAR: 2010
Rated power
5.50 kW
Def: 5.50
E
SEQ
06 PAR: 2010
Rated power
0000005.500 kW
Def: 5.50
5.51 kW
5.49 kW
E
SEQ
07 PAR: 2012
Rated power factor
0.83
Def: 0.83
E
SEQ
07 PAR: 2012
Rated power factor
0.833
Def: 0.83
0.84
0.82
E
Set the plate data of the motor connected, according to the procedures described on the previous pages.
Rated voltage [V]: the rated voltage of the motor indicated on the data plate.
Rated current [A]: motor rated current; approximately, the value should not be less than 0.3 times the rated current of the drive, output current class 1 @ 400 V
on the data plate of the drive.
Rated speed [rpm]:
plate, set the Rated speed parameter as follows: Rated speed = Synchronous speed - Slip (e.g. for a 4-pole motor Rated speed = 1500 - 70
= 1430).
Rated frequency [Hz]: rated frequency of the motor, as shown on the data plate (asynchronous motors only).
Pole pairs: Number of motor pole pairs. The number of motor pole pairs is calculated using the plate data and the following formula:
P = 60 [s] x f [Hz] / nN [rpm]
Where: P = motor pole pairs, f = motor rated frequency (e.g. 50); nN = motor rated speed (e.g. 1450)
Rated power [kW]: Motor rated power; for a motor data plate with an HP power value, set the rated power kW = 0.736 x the motor power HP value.
Rated power factor: Leave the default rated power factor if the data are not available on the data plate.
