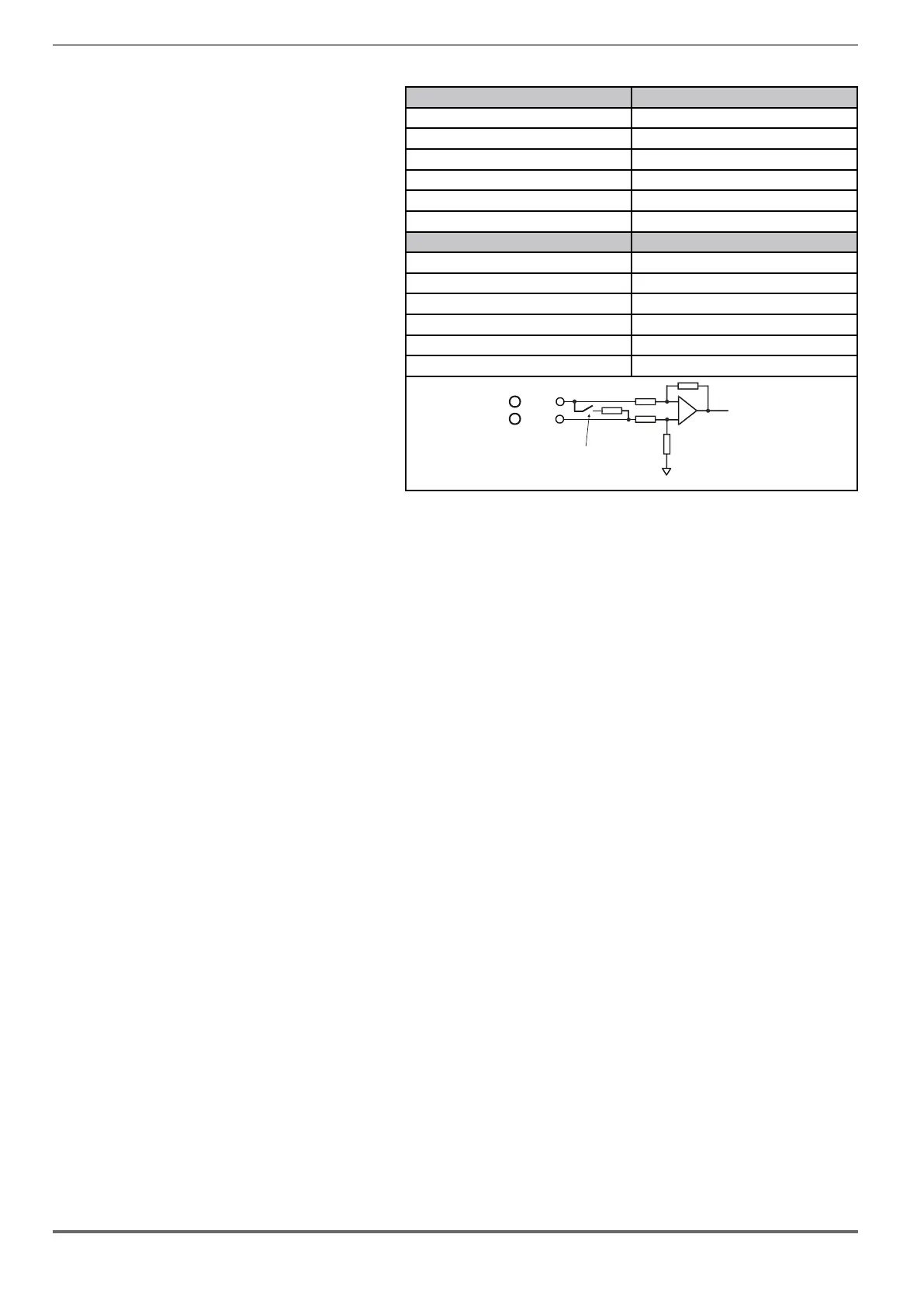

60 VDL200 • Quick installation guide - Specifications and connection
 Analog inputs (AI)
Description Features
Type Voltage differential
Input voltage ± 10 V (± 12.5 V full scale)
Input R 10 kΩ
Resolution 12 Bits (11 + sign)
Precision 1% of full scale
Isolation NO
Description Features
Type Current differential
Input current 0 (4) mA to 20 mA
Input R 500 Ω
Resolution 12 Bits (11 + sign)
Precision 1% of full scale
Isolation NO
AI-X
AI-X
-
+
AI-X
500
OP
(*)
(*) Select input V/I (V=OFF, I=ON)
