Gehl CT5-16 User Manual

913225/CP0807 12 PRINTED IN U.S.A.

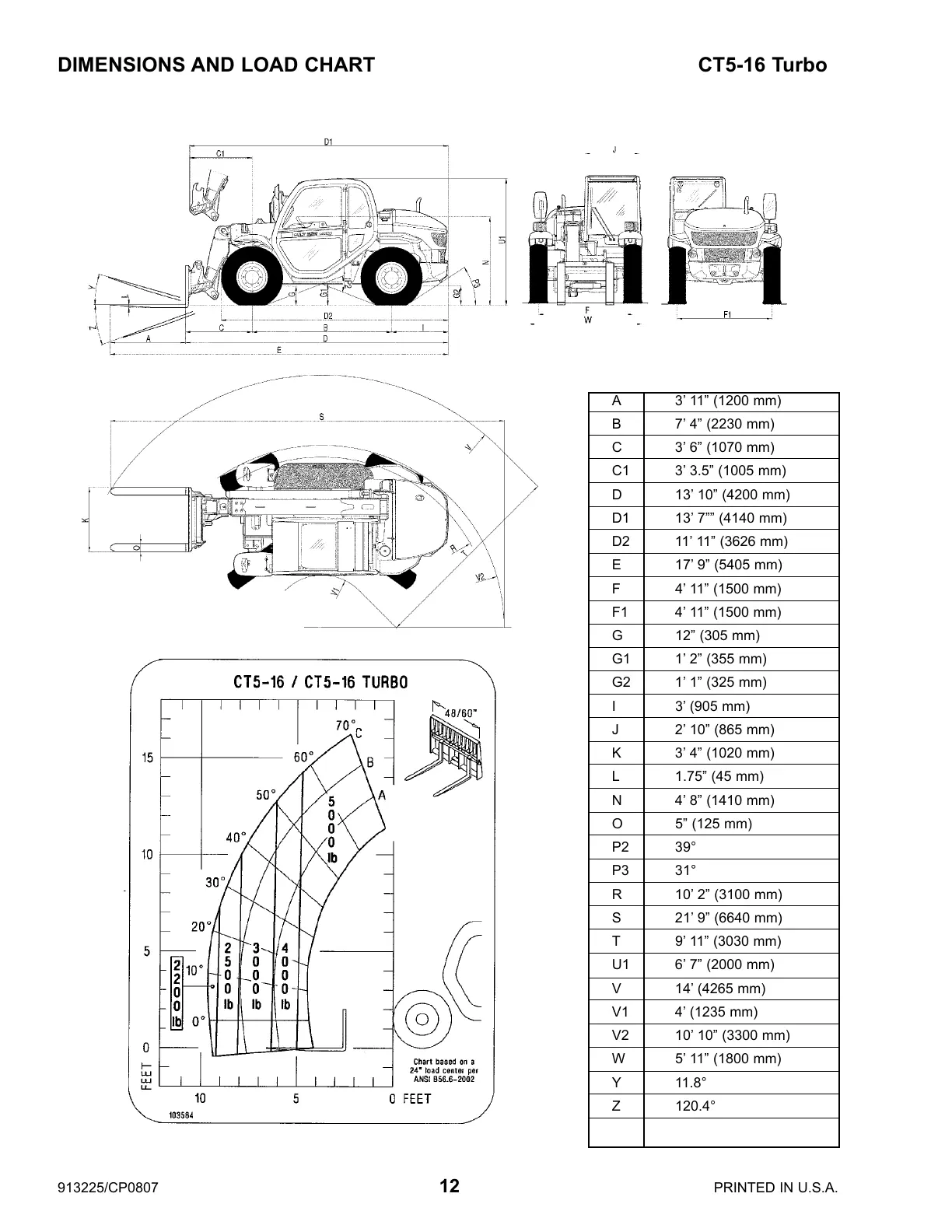

DIMENSIONS AND LOAD CHART CT5-16 Turbo
A 3’ 11” (1200 mm)
B 7’ 4” (2230 mm)
C 3’ 6” (1070 mm)
C1 3’ 3.5” (1005 mm)
D 13’ 10” (4200 mm)
D1 13’ 7”” (4140 mm)
D2 11’ 11” (3626 mm)
E 17’ 9” (5405 mm)
F 4’ 11” (1500 mm)
F1 4’ 11” (1500 mm)
G 12” (305 mm)
G1 1’ 2” (355 mm)
G2 1’ 1” (325 mm)
I 3’ (905 mm)
J 2’ 10” (865 mm)
K 3’ 4” (1020 mm)
L 1.75” (45 mm)
N 4’ 8” (1410 mm)
O 5” (125 mm)
P2 39°
P3 31°
R 10’ 2” (3100 mm)
S 21’ 9” (6640 mm)
T 9’ 11” (3030 mm)
U1 6’ 7” (2000 mm)
V 14’ (4265 mm)
V1 4’ (1235 mm)
V2 10’ 10” (3300 mm)
W 5’ 11” (1800 mm)
Y 11.8°
Z 120.4°
Courtesy of CraneMarket.com

Gehl CT5-16 Specifications

General

Brand	Gehl
Model	CT5-16
Category	Forklifts
Language	English
