Gehl CT5-16 User Manual

PRINTED IN U.S.A. 11 913225/CP0807

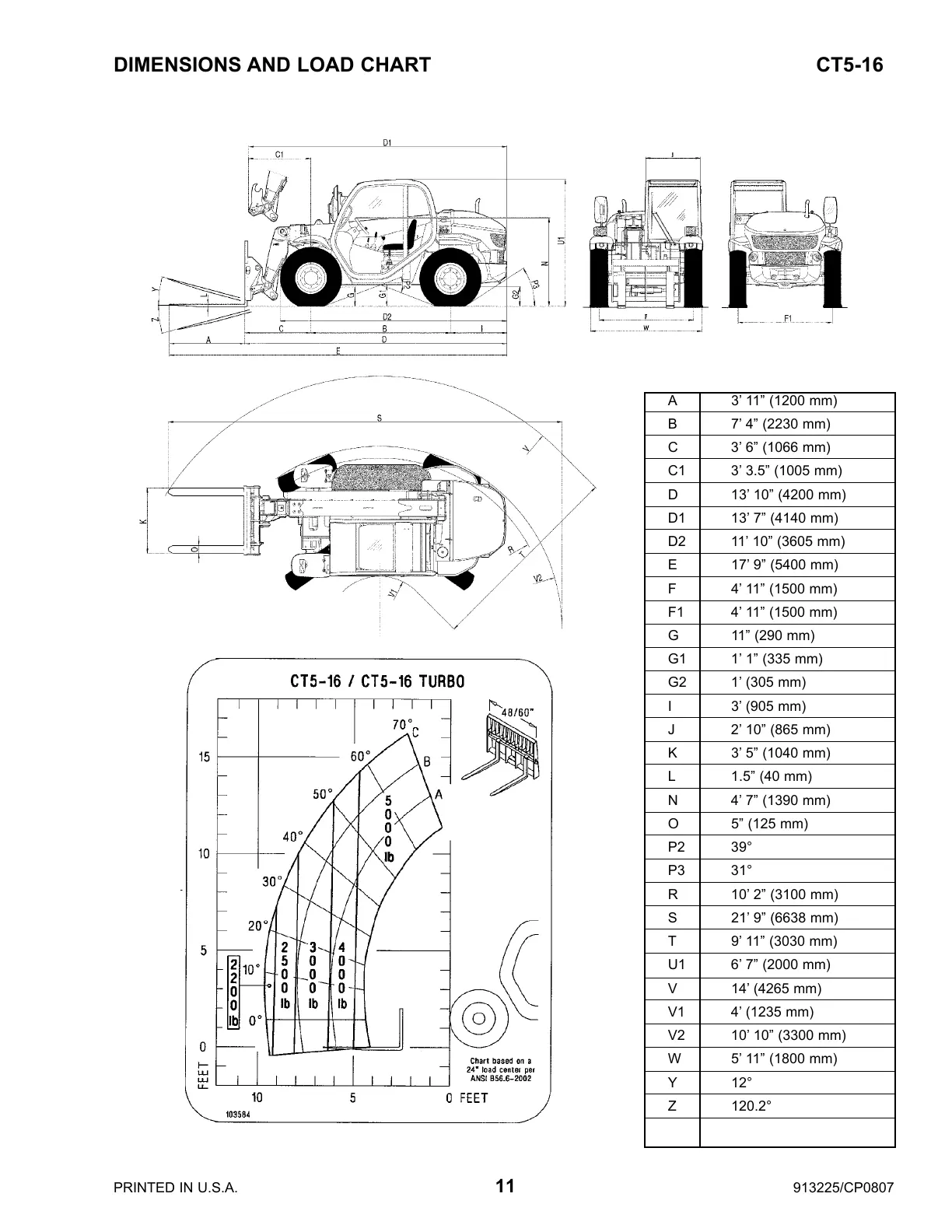

DIMENSIONS AND LOAD CHART CT5-16
A 3’ 11” (1200 mm)
B 7’ 4” (2230 mm)
C 3’ 6” (1066 mm)
C1 3’ 3.5” (1005 mm)
D 13’ 10” (4200 mm)
D1 13’ 7” (4140 mm)
D2 11’ 10” (3605 mm)
E 17’ 9” (5400 mm)
F 4’ 11” (1500 mm)
F1 4’ 11” (1500 mm)
G 11” (290 mm)
G1 1’ 1” (335 mm)
G2 1’ (305 mm)
I 3’ (905 mm)
J 2’ 10” (865 mm)
K 3’ 5” (1040 mm)
L 1.5” (40 mm)
N 4’ 7” (1390 mm)
O 5” (125 mm)
P2 39°
P3 31°
R 10’ 2” (3100 mm)
S 21’ 9” (6638 mm)
T 9’ 11” (3030 mm)
U1 6’ 7” (2000 mm)
V 14’ (4265 mm)
V1 4’ (1235 mm)
V2 10’ 10” (3300 mm)
W 5’ 11” (1800 mm)
Y 12°
Z 120.2°
Courtesy of CraneMarket.com

Gehl CT5-16 Specifications

General

Brand	Gehl
Model	CT5-16
Category	Forklifts
Language	English
