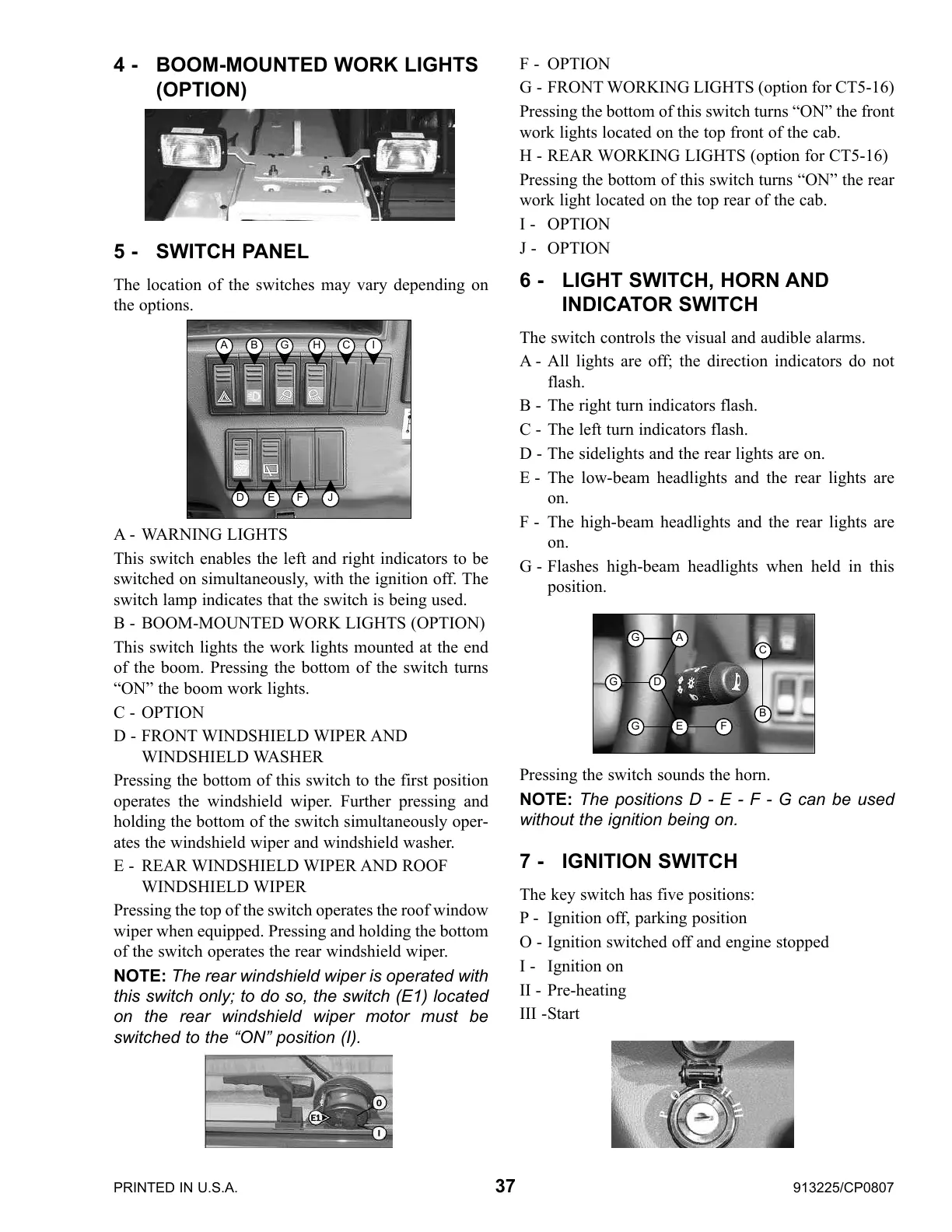

PRINTED IN U.S.A. 37 913225/CP0807
4 - BOOM-MOUNTED WORK LIGHTS
(OPTION)
5 - SWITCH PANEL
The location of the switches may vary depending on
the options.
A - WARNING LIGHTS
This switch enables the left and right indicators to be
switched on simultaneously, with the ignition off. The
switch lamp indicates that the switch is being used.
B - BOOM-MOUNTED WORK LIGHTS (OPTION)
This switch lights the work lights mounted at the end
of the boom. Pressing the bottom of the switch turns
“ON” the boom work lights.
C - OPTION
D - FRONT WINDSHIELD WIPER AND
WINDSHIELD WASHER
Pressing the bottom of this switch to the first position
operates the windshield wiper. Further pressing and
holding the bottom of the switch simultaneously oper-
ates the windshield wiper and windshield washer.
E - REAR WINDSHIELD WIPER AND ROOF
WINDSHIELD WIPER
Pressing the top of the switch operates the roof window
wiper when equipped. Pressing and holding the bottom
of the switch operates the rear windshield wiper.
NOTE: The rear windshield wiper is operated with
this switch only; to do so, the switch (E1) located
on the rear windshield wiper motor must be
switched to the “ON” position (I).
F - OPTION
G - FRONT WORKING LIGHTS (option for CT5-16)
Pressing the bottom of this switch turns “ON” the front
work lights located on the top front of the cab.
H - REAR WORKING LIGHTS (option for CT5-16)
Pressing the bottom of this switch turns “ON” the rear
work light located on the top rear of the cab.
I - OPTION
J - OPTION
6 - LIGHT SWITCH, HORN AND
INDICATOR SWITCH
The switch controls the visual and audible alarms.
A - All lights are off; the direction indicators do not
flash.
B - The right turn indicators flash.
C - The left turn indicators flash.
D - The sidelights and the rear lights are on.
E - The low-beam headlights and the rear lights are
on.
F - The high-beam headlights and the rear lights are
on.
G - Flashes high-beam headlights when held in this
position.
Pressing the switch sounds the horn.
NOTE: The positions D - E - F - G can be used
without the ignition being on.
7 - IGNITION SWITCH
The key switch has five positions:
P - Ignition off, parking position
O - Ignition switched off and engine stopped
I - Ignition on
II - Pre-heating
III -Start
A B G H C I
D E F J
C
B
G
G
G E F
D
A
P
O
I
I
I
I
I
I
