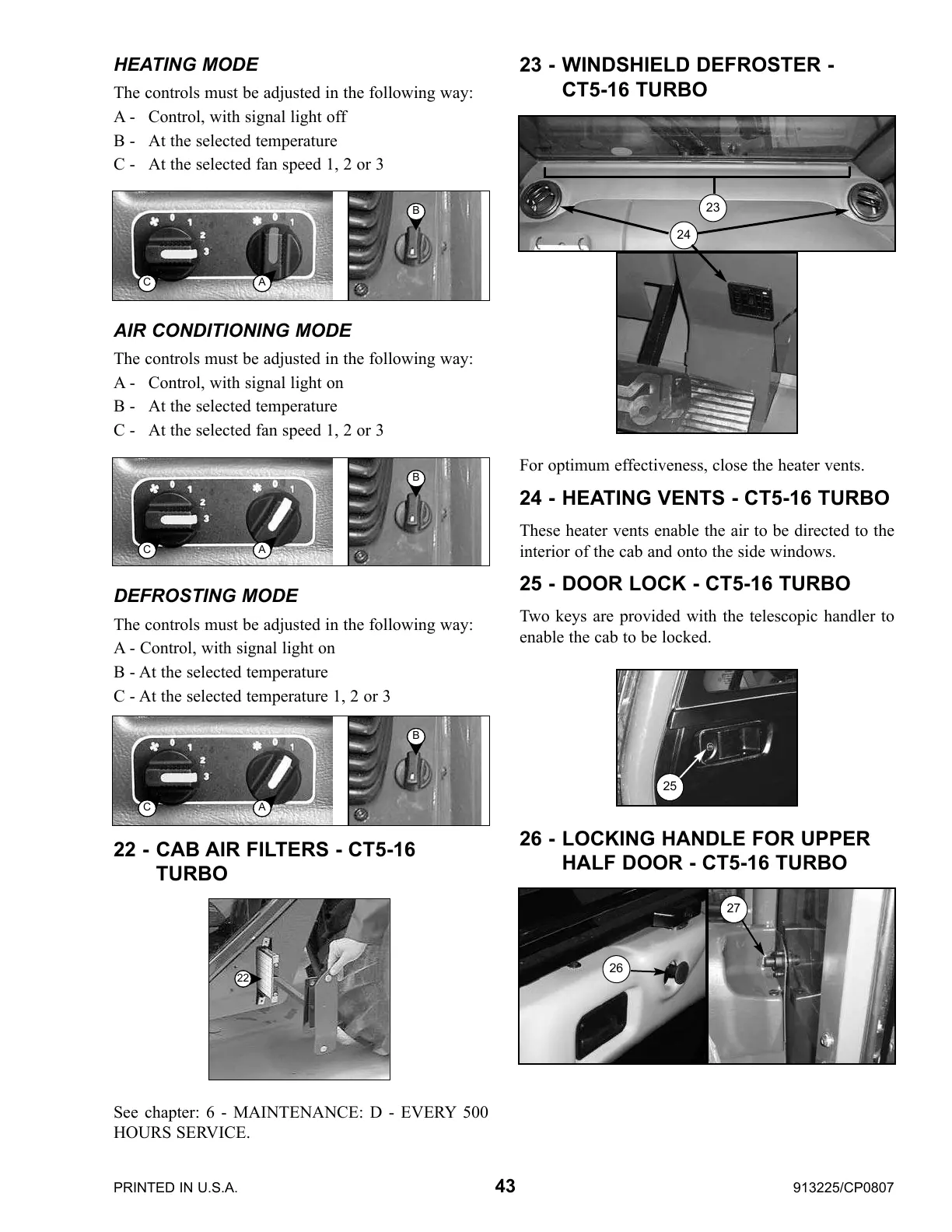

HEATING MODE
The controls must be adjusted in the following way:
A - Control, with signal light off
B - At the selected temperature
C - At the selected fan speed 1, 2 or 3
AIR CONDITIONING MODE
The controls must be adjusted in the following way:
A - Control, with signal light on
B - At the selected temperature
C - At the selected fan speed 1, 2 or 3
DEFROSTING MODE
The controls must be adjusted in the following way:
A - Control, with signal light on
B - At the selected temperature
C - At the selected temperature 1, 2 or 3
22 - CAB AIR FILTERS - CT5-16
TURBO
See chapter: 6 - MAINTENANCE: D - EVERY 500
HOURS SERVICE.
23 - WINDSHIELD DEFROSTER -
CT5-16 TURBO
For optimum effectiveness, close the heater vents.
24 - HEATING VENTS - CT5-16 TURBO
These heater vents enable the air to be directed to the
interior of the cab and onto the side windows.
25 - DOOR LOCK - CT5-16 TURBO
Two keys are provided with the telescopic handler to
enable the cab to be locked.
26 - LOCKING HANDLE FOR UPPER
HALF DOOR - CT5-16 TURBO
B
AC
22
23
24
25
26
27
B
AC
B
AC
