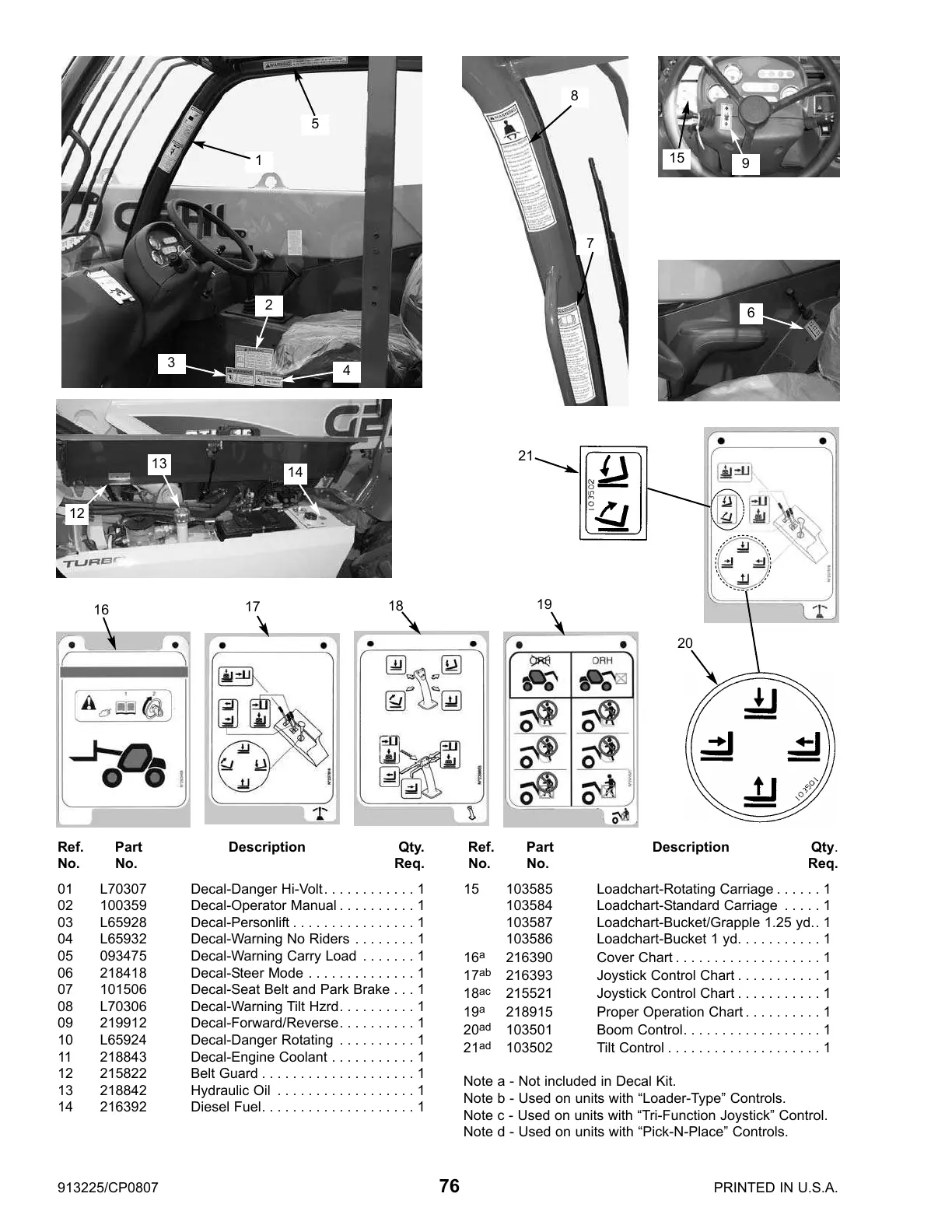

Ref. Part Description Qty. Ref. Part Description Qty.
No. No. Req. No. No. Req.
01 L70307 Decal-Danger Hi-Volt. . . . . . . . . . . . 1
02 100359 Decal-Operator Manual . . . . . . . . . . 1
03 L65928 Decal-Personlift . . . . . . . . . . . . . . . . 1
04 L65932 Decal-Warning No Riders . . . . . . . . 1
05 093475 Decal-Warning Carry Load . . . . . . . 1
06 218418 Decal-Steer Mode . . . . . . . . . . . . . . 1
07 101506 Decal-Seat Belt and Park Brake . . . 1
08 L70306 Decal-Warning Tilt Hzrd. . . . . . . . . . 1
09 219912 Decal-Forward/Reverse. . . . . . . . . . 1
10 L65924 Decal-Danger Rotating . . . . . . . . . . 1
11 218843 Decal-Engine Coolant . . . . . . . . . . . 1
12 215822 Belt Guard . . . . . . . . . . . . . . . . . . . . 1
13 218842 Hydraulic Oil . . . . . . . . . . . . . . . . . . 1
14 216392 Diesel Fuel. . . . . . . . . . . . . . . . . . . . 1
15 103585 Loadchart-Rotating Carriage . . . . . . 1
103584 Loadchart-Standard Carriage . . . . . 1
103587 Loadchart-Bucket/Grapple 1.25 yd.. 1
103586 Loadchart-Bucket 1 yd. . . . . . . . . . . 1
16
a
216390 Cover Chart . . . . . . . . . . . . . . . . . . . 1
17
ab
216393 Joystick Control Chart . . . . . . . . . . . 1
18
ac
215521 Joystick Control Chart . . . . . . . . . . . 1
19
a
218915 Proper Operation Chart . . . . . . . . . . 1
20
ad
103501 Boom Control. . . . . . . . . . . . . . . . . . 1
21
ad
103502 Tilt Control . . . . . . . . . . . . . . . . . . . . 1
Note a - Not included in Decal Kit.
Note b - Used on units with “Loader-Type” Controls.
Note c - Used on units with “Tri-Function Joystick” Control.
Note d - Used on units with “Pick-N-Place” Controls.
