913225/CP0807 80 PRINTED IN U.S.A.

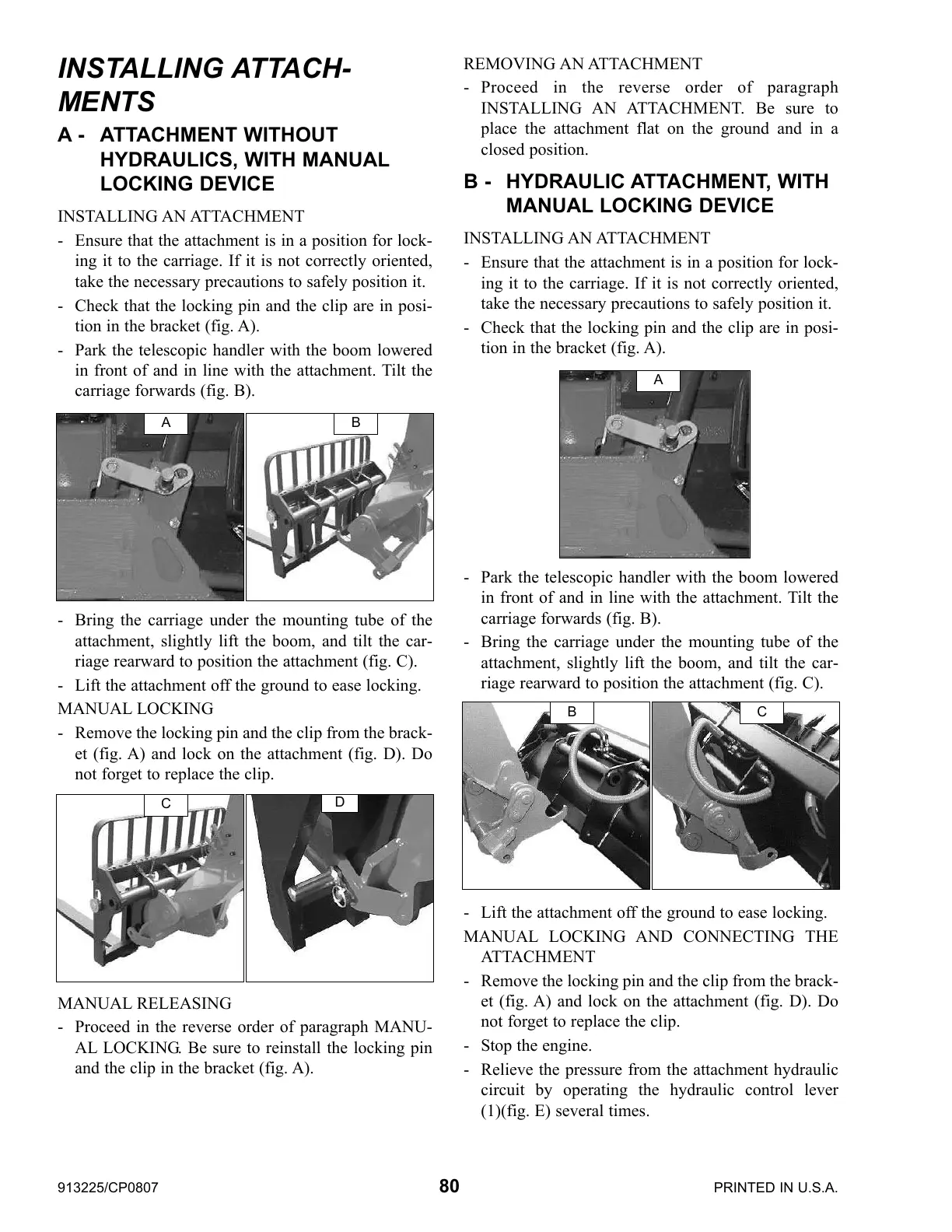

A - ATTACHMENT WITHOUT
HYDRAULICS, WITH MANUAL
LOCKING DEVICE
INSTALLING AN ATTACHMENT
- Ensure that the attachment is in a position for lock-
ing it to the carriage. If it is not correctly oriented,
take the necessary precautions to safely position it.
- Check that the locking pin and the clip are in posi-
tion in the bracket (fig. A).
- Park the telescopic handler with the boom lowered
in front of and in line with the attachment. Tilt the
carriage forwards (fig. B).
- Bring the carriage under the mounting tube of the
attachment, slightly lift the boom, and tilt the car-
riage rearward to position the attachment (fig. C).
- Lift the attachment off the ground to ease locking.
MANUAL LOCKING
- Remove the locking pin and the clip from the brack-
et (fig. A) and lock on the attachment (fig. D). Do
not forget to replace the clip.
MANUAL RELEASING
- Proceed in the reverse order of paragraph MANU-
AL LOCKING. Be sure to reinstall the locking pin
and the clip in the bracket (fig. A).
REMOVING AN ATTACHMENT
- Proceed in the reverse order of paragraph
INSTALLING AN ATTACHMENT. Be sure to
place the attachment flat on the ground and in a
closed position.
B - HYDRAULIC ATTACHMENT, WITH
MANUAL LOCKING DEVICE
INSTALLING AN ATTACHMENT
- Ensure that the attachment is in a position for lock-
ing it to the carriage. If it is not correctly oriented,
take the necessary precautions to safely position it.
- Check that the locking pin and the clip are in posi-
tion in the bracket (fig. A).
- Park the telescopic handler with the boom lowered
in front of and in line with the attachment. Tilt the
carriage forwards (fig. B).
- Bring the carriage under the mounting tube of the
attachment, slightly lift the boom, and tilt the car-
riage rearward to position the attachment (fig. C).
- Lift the attachment off the ground to ease locking.
MANUAL LOCKING AND CONNECTING THE
ATTACHMENT
- Remove the locking pin and the clip from the brack-
et (fig. A) and lock on the attachment (fig. D). Do
not forget to replace the clip.
- Stop the engine.
- Relieve the pressure from the attachment hydraulic
circuit by operating the hydraulic control lever
(1)(fig. E) several times.
A B
C
D
A
B C
INSTALLING ATTACH-
MENTS
