913225/CP0807 38 PRINTED IN U.S.A.
When the engine starts, return to position I as soon as
the key is released

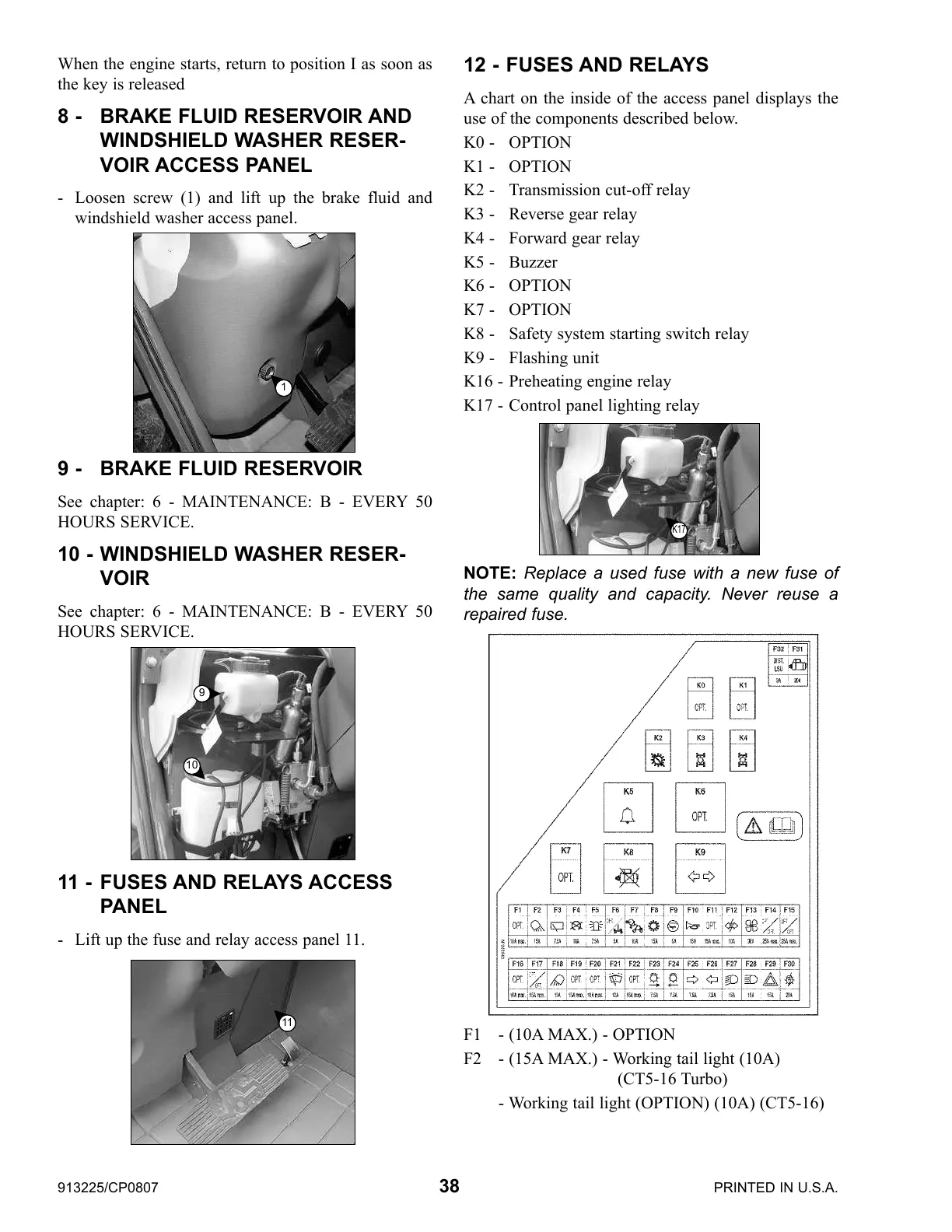

8 - BRAKE FLUID RESERVOIR AND
WINDSHIELD WASHER RESER-
VOIR ACCESS PANEL
- Loosen screw (1) and lift up the brake fluid and
windshield washer access panel.
9 - BRAKE FLUID RESERVOIR
See chapter: 6 - MAINTENANCE: B - EVERY 50
HOURS SERVICE.
10 - WINDSHIELD WASHER RESER-
VOIR
See chapter: 6 - MAINTENANCE: B - EVERY 50
HOURS SERVICE.
11 - FUSES AND RELAYS ACCESS
PANEL
- Lift up the fuse and relay access panel 11.
12 - FUSES AND RELAYS
A chart on the inside of the access panel displays the
use of the components described below.
K0 - OPTION
K1 - OPTION
K2 - Transmission cut-off relay
K3 - Reverse gear relay
K4 - Forward gear relay
K5 - Buzzer
K6 - OPTION
K7 - OPTION
K8 - Safety system starting switch relay
K9 - Flashing unit
K16 - Preheating engine relay
K17 - Control panel lighting relay
NOTE: Replace a used fuse with a new fuse of
the same quality and capacity. Never reuse a
repaired fuse.
F1 - (10A MAX.) - OPTION
F2 - (15A MAX.) - Working tail light (10A)
(CT5-16 Turbo)
- Working tail light (OPTION) (10A) (CT5-16)
9
10
11
K17
1
