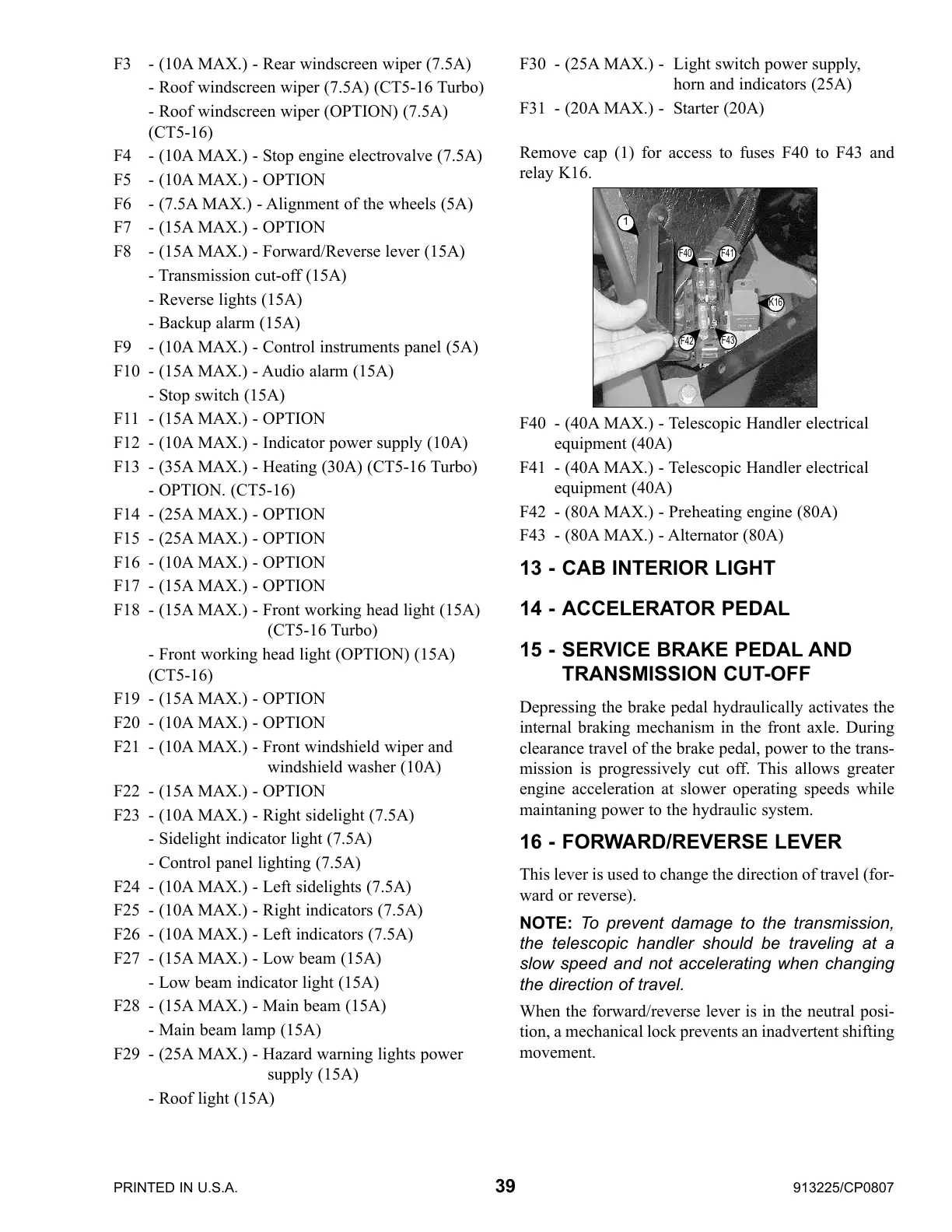

PRINTED IN U.S.A. 39 913225/CP0807
F3 - (10A MAX.) - Rear windscreen wiper (7.5A)
- Roof windscreen wiper (7.5A) (CT5-16 Turbo)
- Roof windscreen wiper (OPTION) (7.5A)
(CT5-16)
F4 - (10A MAX.) - Stop engine electrovalve (7.5A)
F5 - (10A MAX.) - OPTION
F6 - (7.5A MAX.) - Alignment of the wheels (5A)
F7 - (15A MAX.) - OPTION
F8 - (15A MAX.) - Forward/Reverse lever (15A)
- Transmission cut-off (15A)
- Reverse lights (15A)
- Backup alarm (15A)
F9 - (10A MAX.) - Control instruments panel (5A)
F10 - (15A MAX.) - Audio alarm (15A)
- Stop switch (15A)
F11 - (15A MAX.) - OPTION
F12 - (10A MAX.) - Indicator power supply (10A)
F13 - (35A MAX.) - Heating (30A) (CT5-16 Turbo)
- OPTION. (CT5-16)
F14 - (25A MAX.) - OPTION
F15 - (25A MAX.) - OPTION
F16 - (10A MAX.) - OPTION
F17 - (15A MAX.) - OPTION
F18 - (15A MAX.) - Front working head light (15A)
(CT5-16 Turbo)
- Front working head light (OPTION) (15A)
(CT5-16)
F19 - (15A MAX.) - OPTION
F20 - (10A MAX.) - OPTION
F21 - (10A MAX.) - Front windshield wiper and
windshield washer (10A)
F22 - (15A MAX.) - OPTION
F23 - (10A MAX.) - Right sidelight (7.5A)
- Sidelight indicator light (7.5A)
- Control panel lighting (7.5A)
F24 - (10A MAX.) - Left sidelights (7.5A)
F25 - (10A MAX.) - Right indicators (7.5A)
F26 - (10A MAX.) - Left indicators (7.5A)
F27 - (15A MAX.) - Low beam (15A)
- Low beam indicator light (15A)
F28 - (15A MAX.) - Main beam (15A)
- Main beam lamp (15A)
F29 - (25A MAX.) - Hazard warning lights power
supply (15A)
- Roof light (15A)
F30 - (25A MAX.) - Light switch power supply,
horn and indicators (25A)
F31 - (20A MAX.) - Starter (20A)
Remove cap (1) for access to fuses F40 to F43 and
relay K16.
F40 - (40A MAX.) - Telescopic Handler electrical
equipment (40A)
F41 - (40A MAX.) - Telescopic Handler electrical
equipment (40A)
F42 - (80A MAX.) - Preheating engine (80A)
F43 - (80A MAX.) - Alternator (80A)
13 - CAB INTERIOR LIGHT
14 - ACCELERATOR PEDAL
15 - SERVICE BRAKE PEDAL AND
TRANSMISSION CUT-OFF
Depressing the brake pedal hydraulically activates the
internal braking mechanism in the front axle. During
clearance travel of the brake pedal, power to the trans-
mission is progressively cut off. This allows greater
engine acceleration at slower operating speeds while
maintaning power to the hydraulic system.
16 - FORWARD/REVERSE LEVER
This lever is used to change the direction of travel (for-
ward or reverse).
NOTE: To prevent damage to the transmission,
the telescopic handler should be traveling at a
slow speed and not accelerating when changing
the direction of travel.
When the forward/reverse lever is in the neutral posi-
tion, a mechanical lock prevents an inadvertent shifting
movement.
F41
F42
1
K16
F43
F40
