913225/CP0807 30 PRINTED IN U.S.A.

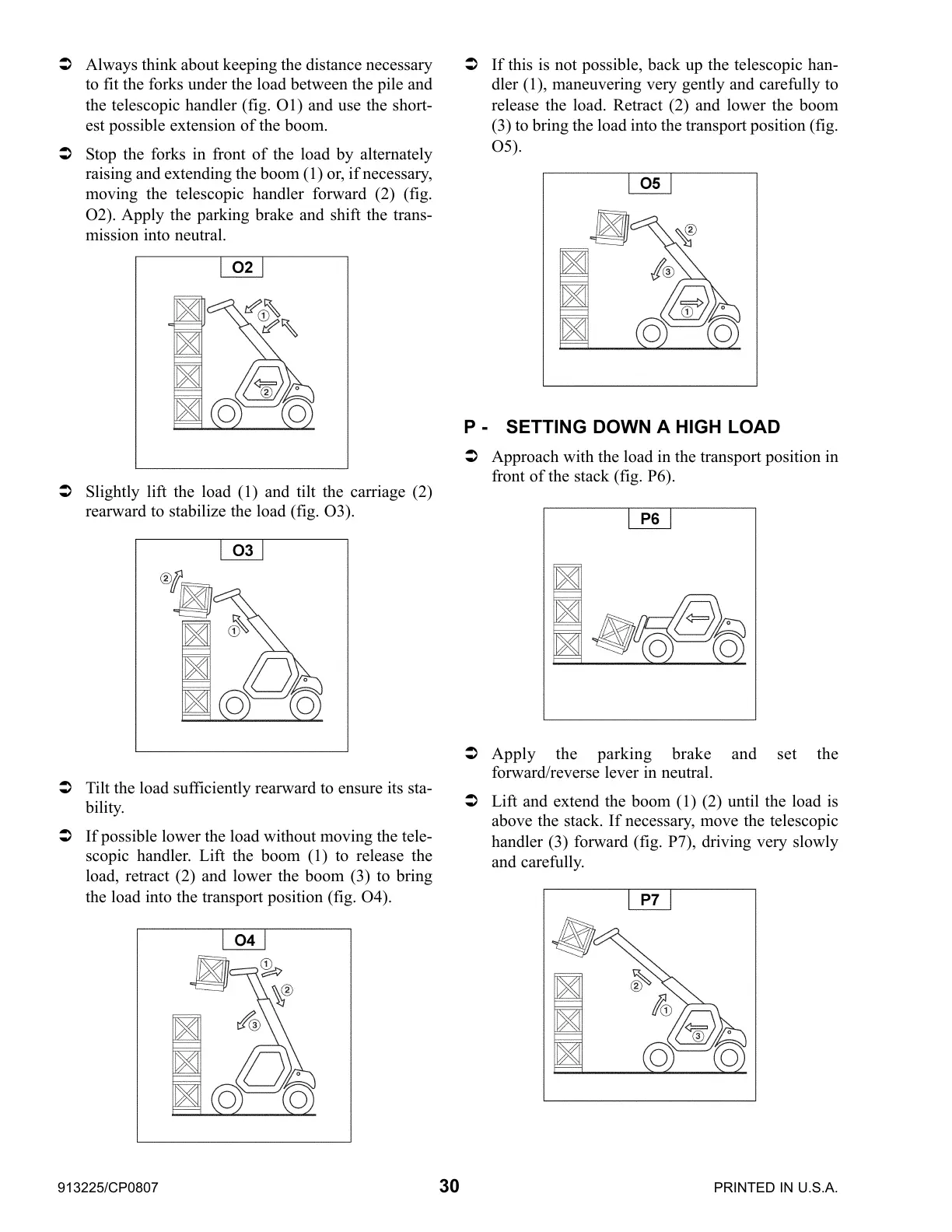

 Always think about keeping the distance necessary
to fit the forks under the load between the pile and
the telescopic handler (fig. O1) and use the short-
est possible extension of the boom.
 Stop the forks in front of the load by alternately
raising and extending the boom (1) or, if necessary,
moving the telescopic handler forward (2) (fig.
O2). Apply the parking brake and shift the trans-
mission into neutral.
 Slightly lift the load (1) and tilt the carriage (2)
rearward to stabilize the load (fig. O3).
 Tilt the load sufficiently rearward to ensure its sta-
bility.
 If possible lower the load without moving the tele-
scopic handler. Lift the boom (1) to release the
load, retract (2) and lower the boom (3) to bring
the load into the transport position (fig. O4).
 If this is not possible, back up the telescopic han-
dler (1), maneuvering very gently and carefully to
release the load. Retract (2) and lower the boom
(3) to bring the load into the transport position (fig.
O5).
P - SETTING DOWN A HIGH LOAD
 Approach with the load in the transport position in
front of the stack (fig. P6).
 Apply the parking brake and set the
forward/reverse lever in neutral.
 Lift and extend the boom (1) (2) until the load is
above the stack. If necessary, move the telescopic
handler (3) forward (fig. P7), driving very slowly
and carefully.
