913225/CP0807 44 PRINTED IN U.S.A.

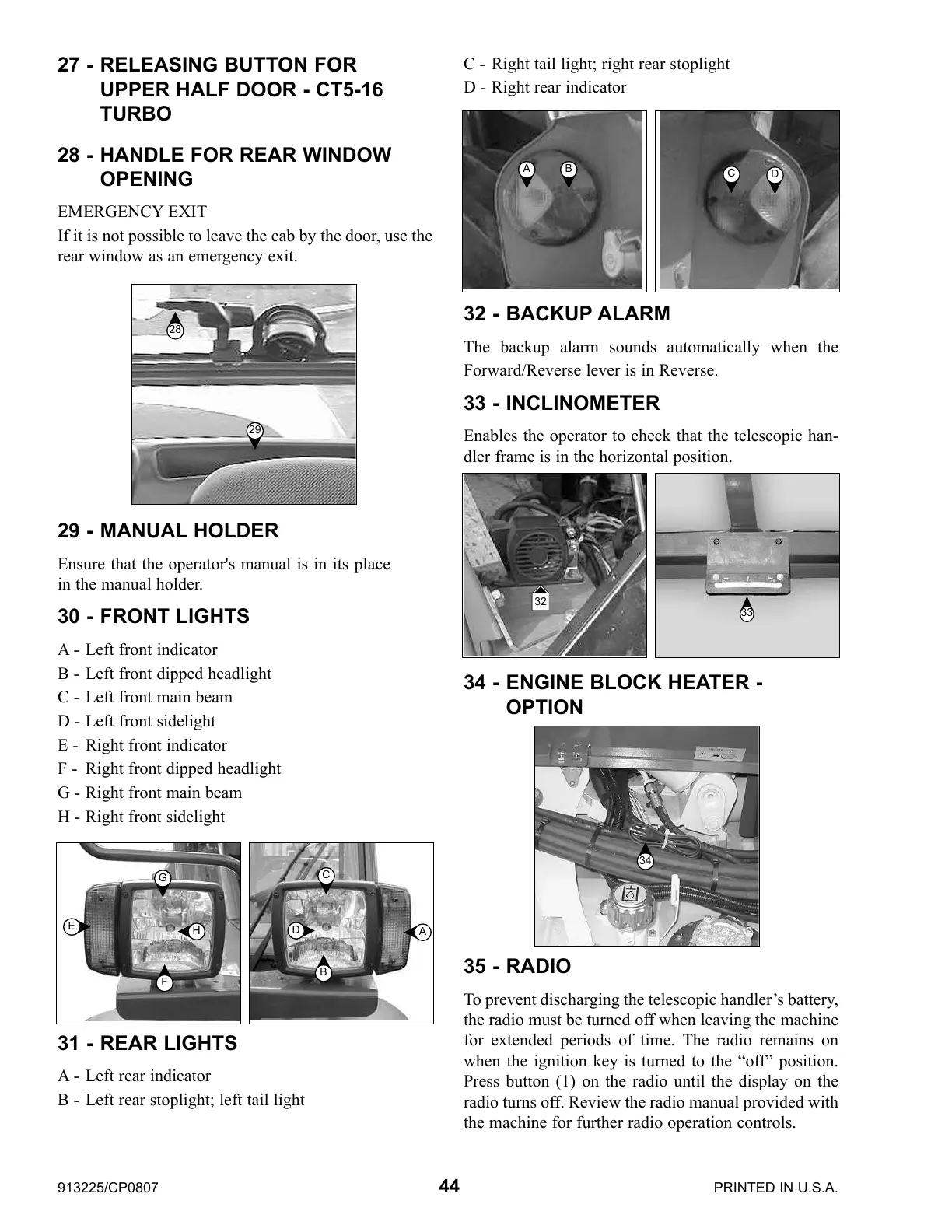

27 - RELEASING BUTTON FOR
UPPER HALF DOOR - CT5-16
TURBO
28 - HANDLE FOR REAR WINDOW
OPENING
EMERGENCY EXIT
If it is not possible to leave the cab by the door, use the
rear window as an emergency exit.
29 - MANUAL HOLDER
Ensure that the operator's manual is in its place
in the manual holder.
30 - FRONT LIGHTS
A - Left front indicator
B - Left front dipped headlight
C - Left front main beam
D - Left front sidelight
E - Right front indicator
F - Right front dipped headlight
G - Right front main beam
H - Right front sidelight
31 - REAR LIGHTS
A - Left rear indicator
B - Left rear stoplight; left tail light
E
G
F
H
A
C
B
D
C - Right tail light; right rear stoplight
D - Right rear indicator
32 - BACKUP ALARM
The backup alarm sounds automatically when the
Forward/Reverse lever is in Reverse.
33 - INCLINOMETER
Enables the operator to check that the telescopic han-
dler frame is in the horizontal position.
34 - ENGINE BLOCK HEATER -
OPTION
35 - RADIO
To prevent discharging the telescopic handler’s battery,
the radio must be turned off when leaving the machine
for extended periods of time. The radio remains on
when the ignition key is turned to the “off” position.
Press button (1) on the radio until the display on the
radio turns off. Review the radio manual provided with
the machine for further radio operation controls.
33
34
28
29
A B
C
D
32
