913225/CP0807 82 PRINTED IN U.S.A.

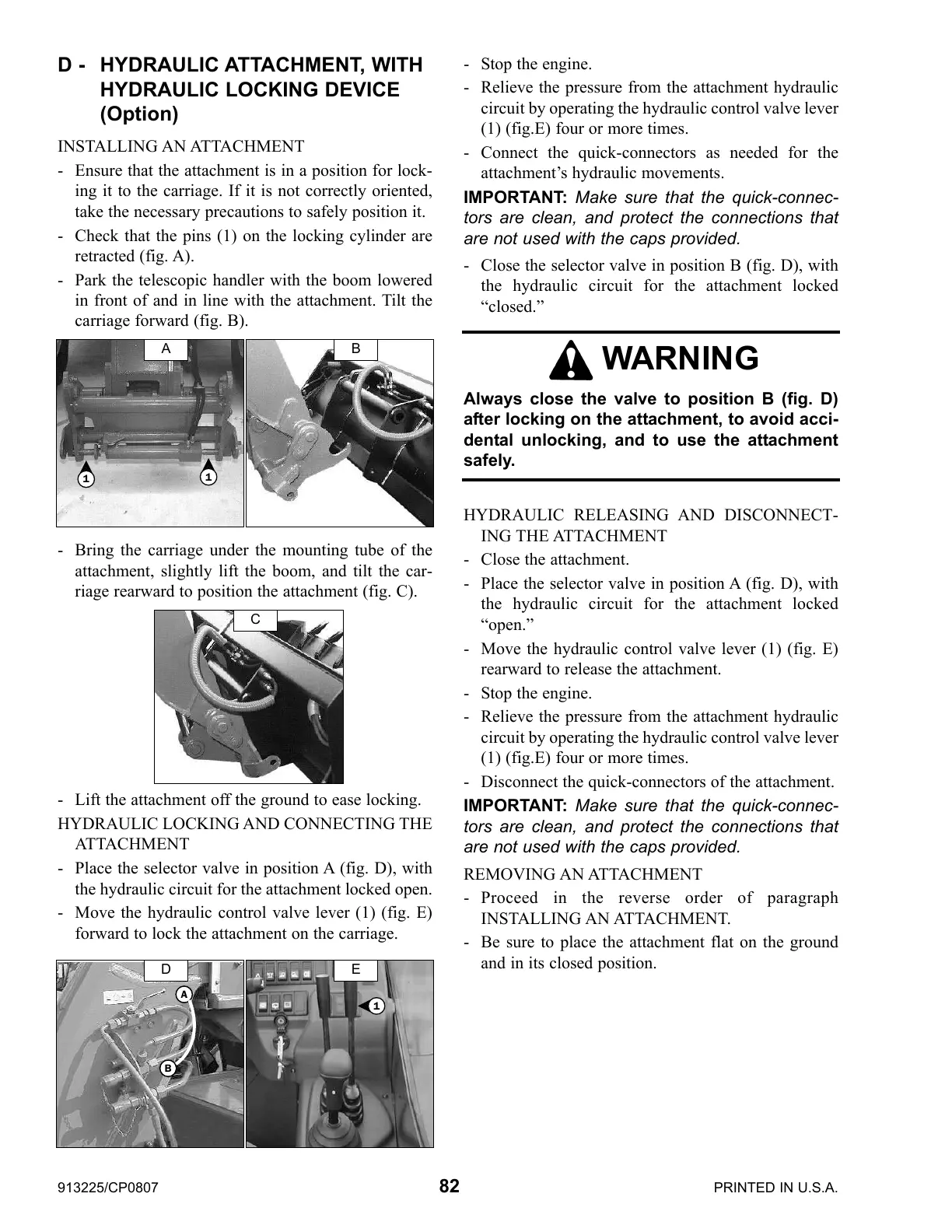

D - HYDRAULIC ATTACHMENT, WITH
HYDRAULIC LOCKING DEVICE
(Option)
INSTALLING AN ATTACHMENT
- Ensure that the attachment is in a position for lock-
ing it to the carriage. If it is not correctly oriented,
take the necessary precautions to safely position it.
- Check that the pins (1) on the locking cylinder are
retracted (fig. A).
- Park the telescopic handler with the boom lowered
in front of and in line with the attachment. Tilt the
carriage forward (fig. B).
- Bring the carriage under the mounting tube of the
attachment, slightly lift the boom, and tilt the car-
riage rearward to position the attachment (fig. C).
- Lift the attachment off the ground to ease locking.
HYDRAULIC LOCKING AND CONNECTING THE
ATTACHMENT
- Place the selector valve in position A (fig. D), with
the hydraulic circuit for the attachment locked open.
- Move the hydraulic control valve lever (1) (fig. E)
forward to lock the attachment on the carriage.
- Stop the engine.
- Relieve the pressure from the attachment hydraulic
circuit by operating the hydraulic control valve lever
(1) (fig.E) four or more times.
- Connect the quick-connectors as needed for the
attachment’s hydraulic movements.
IMPORTANT: Make sure that the quick-connec-
tors are clean, and protect the connections that
are not used with the caps provided.
- Close the selector valve in position B (fig. D), with
the hydraulic circuit for the attachment locked
“closed.”
HYDRAULIC RELEASING AND DISCONNECT-
ING THE ATTACHMENT
- Close the attachment.
- Place the selector valve in position A (fig. D), with
the hydraulic circuit for the attachment locked
“open.”
- Move the hydraulic control valve lever (1) (fig. E)
rearward to release the attachment.
- Stop the engine.
- Relieve the pressure from the attachment hydraulic
circuit by operating the hydraulic control valve lever
(1) (fig.E) four or more times.
- Disconnect the quick-connectors of the attachment.
IMPORTANT: Make sure that the quick-connec-
tors are clean, and protect the connections that
are not used with the caps provided.
REMOVING AN ATTACHMENT
- Proceed in the reverse order of paragraph
INSTALLING AN ATTACHMENT.
- Be sure to place the attachment flat on the ground
and in its closed position.
WARNING
Always close the valve to position B (fig. D)
after locking on the attachment, to avoid acci-
dental unlocking, and to use the attachment
safely.
A
1
1
B
C
D
B
A
E
1
