913225/CP0807 52 PRINTED IN U.S.A.

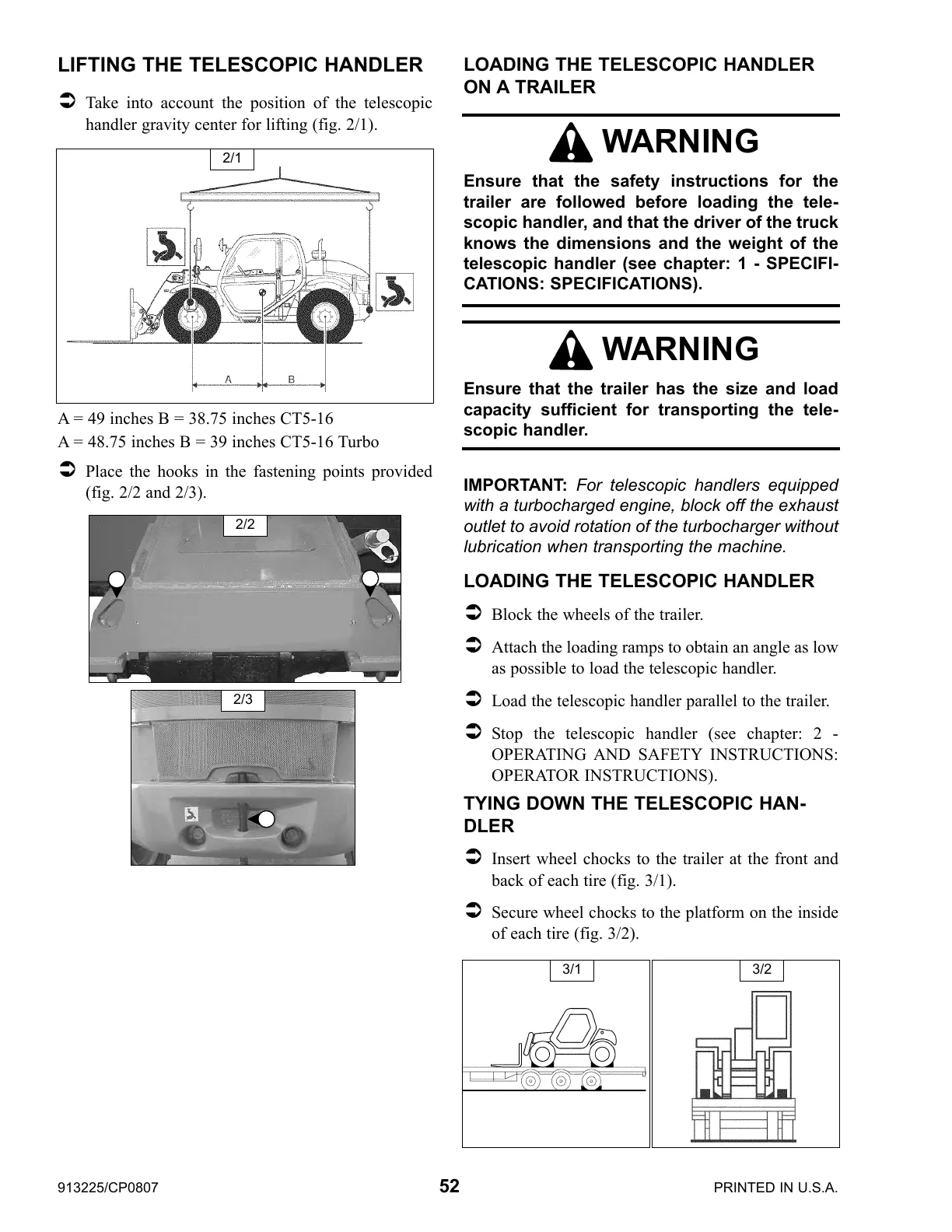

LIFTING THE TELESCOPIC HANDLER
 Take into account the position of the telescopic
handler gravity center for lifting (fig. 2/1).
A = 49 inches B = 38.75 inches CT5-16
A = 48.75 inches B = 39 inches CT5-16 Turbo
 Place the hooks in the fastening points provided
(fig. 2/2 and 2/3).
LOADING THE TELESCOPIC HANDLER
ON A TRAILER
IMPORTANT: For telescopic handlers equipped
with a turbocharged engine, block off the exhaust
outlet to avoid rotation of the turbocharger without
lubrication when transporting the machine.
LOADING THE TELESCOPIC HANDLER
 Block the wheels of the trailer.
 Attach the loading ramps to obtain an angle as low
as possible to load the telescopic handler.
 Load the telescopic handler parallel to the trailer.
 Stop the telescopic handler (see chapter: 2 -
OPERATING AND SAFETY INSTRUCTIONS:
OPERATOR INSTRUCTIONS).
TYING DOWN THE TELESCOPIC HAN-
DLER
 Insert wheel chocks to the trailer at the front and
back of each tire (fig. 3/1).
 Secure wheel chocks to the platform on the inside
of each tire (fig. 3/2).
2/1
WARNING
Ensure that the safety instructions for the
trailer are followed before loading the tele-
scopic handler, and that the driver of the truck
knows the dimensions and the weight of the
telescopic handler (see chapter: 1 - SPECIFI-
CATIONS: SPECIFICATIONS).
WARNING
Ensure that the trailer has the size and load
capacity sufficient for transporting the tele-
scopic handler.
2/2
2/3
3/1 3/2
