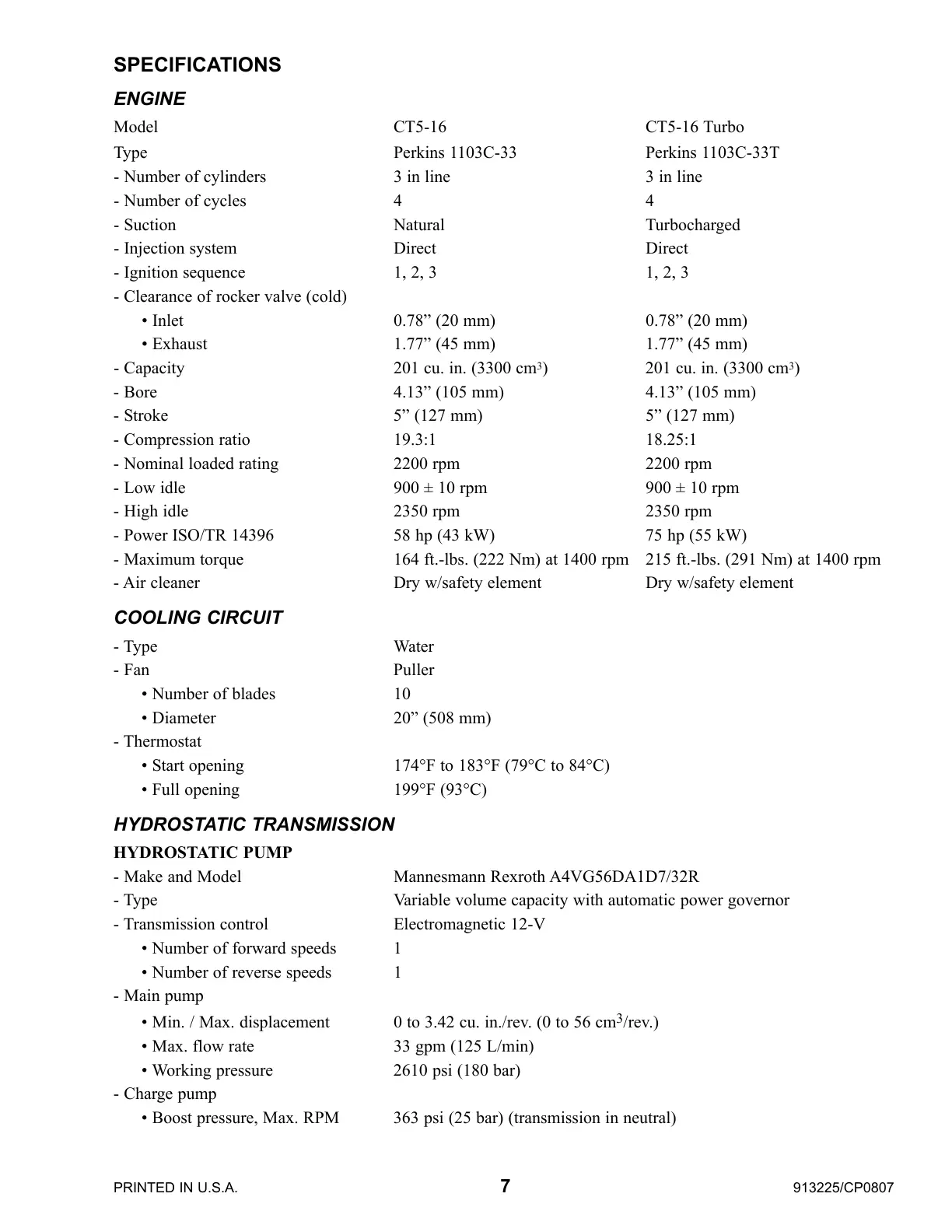

SPECIFICATIONS
ENGINE
Model CT5-16 CT5-16 Turbo
Type Perkins 1103C-33 Perkins 1103C-33T
- Number of cylinders 3 in line 3 in line
- Number of cycles 4 4
- Suction Natural Turbocharged
- Injection system Direct Direct
- Ignition sequence 1, 2, 3 1, 2, 3
- Clearance of rocker valve (cold)
• Inlet 0.78” (20 mm) 0.78” (20 mm)
• Exhaust 1.77” (45 mm) 1.77” (45 mm)
- Capacity 201 cu. in. (3300 cm
3
) 201 cu. in. (3300 cm
3
)
- Bore 4.13” (105 mm) 4.13” (105 mm)
- Stroke 5” (127 mm) 5” (127 mm)
- Compression ratio 19.3:1 18.25:1
- Nominal loaded rating 2200 rpm 2200 rpm
- Low idle 900 ± 10 rpm 900 ± 10 rpm
- High idle 2350 rpm 2350 rpm
- Power ISO/TR 14396 58 hp (43 kW) 75 hp (55 kW)
- Maximum torque 164 ft.-lbs. (222 Nm) at 1400 rpm 215 ft.-lbs. (291 Nm) at 1400 rpm
- Air cleaner Dry w/safety element Dry w/safety element
COOLING CIRCUIT
- Type Water
- Fan Puller
• Number of blades 10
• Diameter 20” (508 mm)
- Thermostat
• Start opening 174°F to 183°F (79°C to 84°C)
• Full opening 199°F (93°C)
HYDROSTATIC TRANSMISSION
HYDROSTATIC PUMP
- Make and Model Mannesmann Rexroth A4VG56DA1D7/32R
- Type Variable volume capacity with automatic power governor
- Transmission control Electromagnetic 12-V
• Number of forward speeds 1
• Number of reverse speeds 1
- Main pump
• Min. / Max. displacement 0 to 3.42 cu. in./rev. (0 to 56 cm
3
/rev.)
• Max. flow rate 33 gpm (125 L/min)
• Working pressure 2610 psi (180 bar)
- Charge pump
• Boost pressure, Max. RPM 363 psi (25 bar) (transmission in neutral)
